DCR822
LECTROSONICS, INC.
20

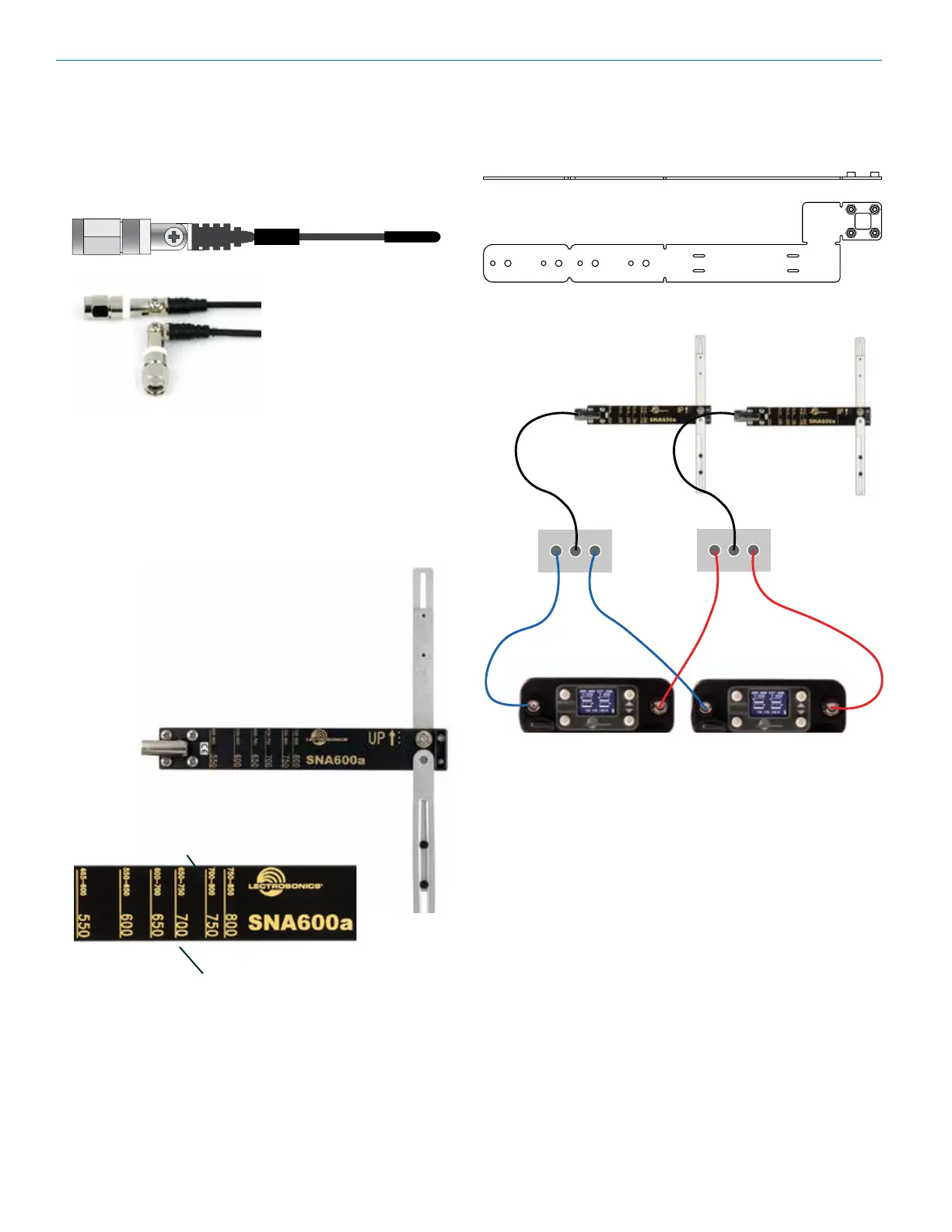

A “bendable” mounting strap is included that allows
vertical orientation on a variety of surfaces. Several
other adapters are also available for temporary or fixed
installations.
This is one example of using two splitters to feed two
receivers.
Use Lectrosonics P/N 21770 BNC (F) to SMA (M) adapter;
Pomona P/N 4290
SNA600A
COAXIAL
CABLE
ZSC24
SPLITTER
AMJ Jointed Antenna
The AMJ antenna is a general purpose design with a
hinged joint that pivots in both directions for position-
ing the whip at any desired angle. The pivot allows the
whips to be oriented vertically regardless of the mount-
ing position of the receiver.
The hinged joint pivots in both directions
SNA600A Omni Dipole Antenna
The SNA600a antenna is a versatile tool for
use with wireless microphone receivers or IFB
transmitters. The center frequency of its 100
MHz bandwidth is tunable from 550 to 800
MHz; however, the roll-off above and below this
band is gradual. The SNA600a measures lower
than a 2:1 SWR (Standing Wave Ratio) from
465 MHz to 850 MHz when the antenna arms
are fully extended.
Half-Power (-3 dB) Points
Antenna Scale
Center Frequency
