Adjust the setscrew when the case
inserter is at the end of the feed rail.
Rotate the setscrew clockwise with flat
blade screwdriver
until there is a slight
amount of capture
when you slide the
case out of the
fingers. We found
it best to adjust for the least amount of
closure as it provides the largest target for
the next case to feed.
4

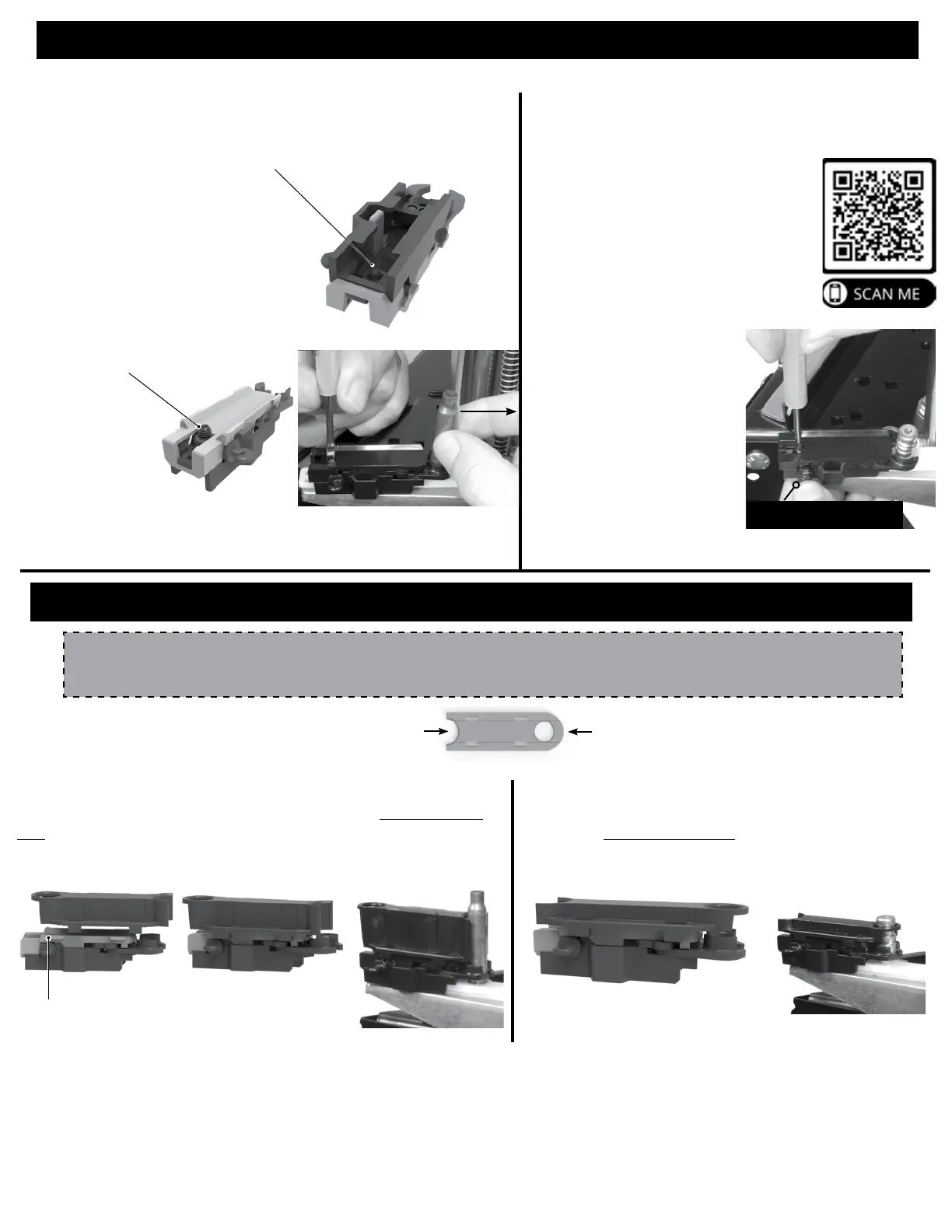

INSTALLING THE BULLET/CASE SLIDER & ADJUSTING JAWS
CASE FEEDING
BULLET FEEDING
The setscrew found on the rear of the case inserter closes the fingers on
the return stroke of the case inserter. For most cases, the adjustment screw
should be backed out to allow maximum jaw opening to allow the rim of the
case to easily enter the jaws. The ball end of the setscrew should protrude
slightly from the bottom of the actuator.
Small diameter bottleneck cases
such as the .223 may require slight
adjustment of the setscrew inward to
close the fingers trapping the case as it
feeds from the feed tube.
Adjust the setscrew with the
case inserter positioned at the
end of the feed rail. Rotate the
setscrew clockwise with flat
blade screwdriver until the
bullet is captured in the finger
tips.
case inserter actuator
The case inserter is shipped with the large fingers installed.
They will work with 25 caliber and larger bullets. If you are
sizing bullets smaller than 25 caliber, change the jaws to the
22 caliber [ see FIG. 1 at website link below].
SEE INSTRUCTIONS HERE:
leeprecision.com/files/instruct/APPchangejaws.pdf
Five unique risers are included, PA4384A-PA4384E. These are double ended and are used for both bullet and case feeding.
Case feeding uses the “C” opening and Bullet feeding uses the “O” opening. With case inserter installed on slider rail, select
the riser that is slightly shorter than the case or bullet you wish to process.
case feeding
bullet feeding
Proceed to installing tube supports. If cases | bullets do not freely drop into the jaws from the tube support, see top of
page to adjust the jaws.
Now, select the tallest riser that is NOT taller than the case when installed on
the case inserter. Place on the rail to confirm correct riser. Be sure the “C”
side of the riser is above the jaws.
Now, select the tallest riser that is NOT taller than the bullet
when installed on the case inserter. Place on rail to confirm
correct riser. Be sure the “O” side of the riser is above the jaws.
CASE FEEDING BULLET FEEDING
Riser stop
Riser installed against stop
Riser installed against stop
RISER INSTALLATION
