6

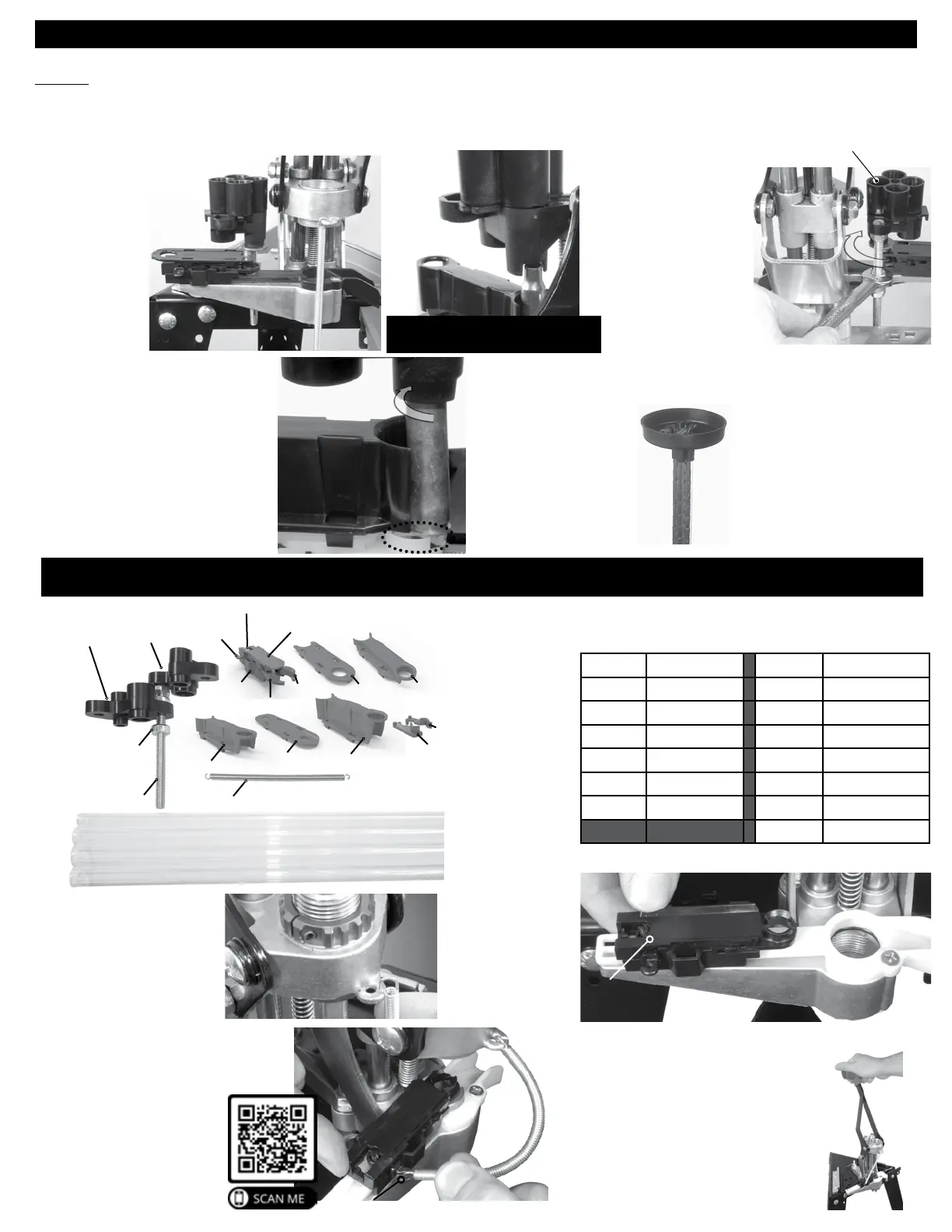

INSTALLING UNIVERSAL CASE FEEDER (ACCESSORY # 90242)
Re-attach the spring to the case
actuator and test operation on a few
cases. If the cases drop too soon, they may
rest on top of feed fingers. Rotate the feed
tube support farther away (clockwise)
from the press to delay the dropping.
Because of the wide range of diameters
and rim configurations, you will have to
fine tune this position to provide reliable
feeding.
Feed plate
Bottleneck case orientation. Note
neck just clears top of notch.
Works well with most handgun cartridges and small rifle cases like the 223. Can be fitted with optional collator bowl # 90667, fills 4 tube feeder with
handgun cases in about 10 seconds. This feeder will not work for bullet feeding. You must use the case inserter supplied with the APP. The case slider
included in the universal case feeder will not function correctly, it will not center the cases in the X-PRESS shell holder and there is no attach for the feed
spring.
With the
spring
unhooked
from case actuator
hook. Insert case
into jaws of slider
base. Place a coin
on top of the case
mouth. (See setting
for bottleneck
cases)
Slide the feed
plate assembly
into the base
casting hole, and adjust
the top nut so that the
bottom of the feed plate
assembly rests on top
of the coin. Tighten the
top nut so that the feed
plate assembly clears
the frame using a 7/16”
wrench.
If you took o spring
to setup riser/tube
supports, install open end
of spring into tab of upper
App press casting.
Slide
case
inserter
“jaws” first on
to slide rail.
Tube Support
PA4360A and PA4360B
PA4342B (not visible)
PA4342A
PA4342C
PA4342D
PA4342E
PA4342F
PA4342G
Actuator Slider spring # PR2118
PA4384A
PA4384B
PA4384C
PA4384D
PA4384E
¼-20 x 3 bolt
# FT2457
¼-20 nut (qty. 3)
# FT1994
PART # DESCRIPTION PART # DESCRIPTION
PA4342A Slider Top Rail PA4342G 22 cal. Outer Jaw
PA4342B Actuator Screw PA4342H 22 cal. Inner Jaw
PA4342C Actuator PA4384A 0.53” Riser
PA4342D Slider Base PA4384B 0.75” Riser
PA4342E Large Outer Jaw PA4384C 1.0” Riser
PA4342F Large Inner Jaw PA4384D 0.53” Dual Riser
PA4384E 1.3” Riser
PA4342H
Feed tubes
# PA4340 .28”
# BF3490 .42”
# BF3489 .49”
# TR2458 .53”
Lower press handle to
the stroke position
(2”) and install spring
on to case inserter actuator
hook as shown. If the closed
loop on the spring does not
align with hook, twist the
spring towards the press.
Cycle the press handle,
stop to stop, to ensure
smooth operation back
and forth. Notice how the
jaws open and close when
the direction of the slider
changes.
case
inserter
case actuator hook
INSTALL SPRING & TEST SETUP
OPTIONAL
CASE COLLATOR
product # 90667
To Next Page
