Leeson 174475 - Page 9

7
HP INPUT CATALOG
(kW) VOLTAGE NUMBER H W D N P Q R S
3 240 174729
7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
(2.2) 174526**
240/200 174938
7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
174531**
480/400 174941
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
174534**
590 174945
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
174538**
5 240/200 174730
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
(4) 174732**
480/400 174942
7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
174535**
590 174946
7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
174539**
7.5 240/200 174734
11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.38
(5.5) 174735**
480/400 174548
8.38 10.26 6.90 5.13 5.25 2.00 6.38 1.38
174745**
590 174549
9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
174759**
10 240/200 174737
13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
(7.5) 174738**
480/400 174554
11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.38
174747**
590 174556
11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.13
174761**
15 240/200 174740
15.75 10.26 8.35 5.13 5.75 2.00 13.75 1.38
(11) 174741**
480/400 174749
13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
174750**
590 174763
13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
174764**
* = NEMA 12 Only
** = NEMA 4X
Others are NEMA 4/12
W
R
D
H
Q
Q
P
N
Conduit Holes:
S Dia.
0.88" Dia.
S Dia.
T
Dia. Slot

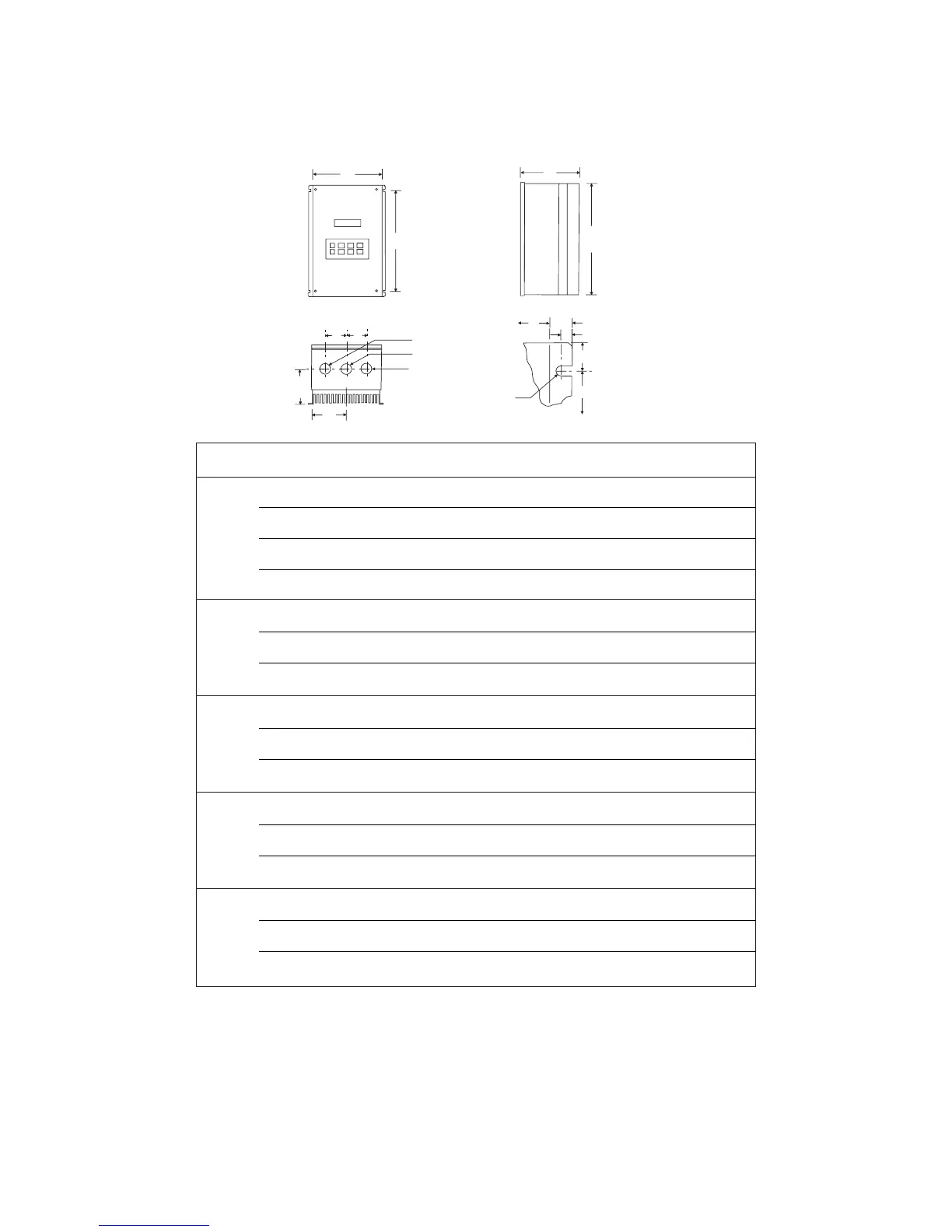

Mounting Tab Detail
W
U
V
1.00"
R
IF W ≤ 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W ≤ 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
