15.0 MICRO SERIES CONTROL WIRING DIAGRAMS
15.1 MICRO SERIES TERMINAL STRIP

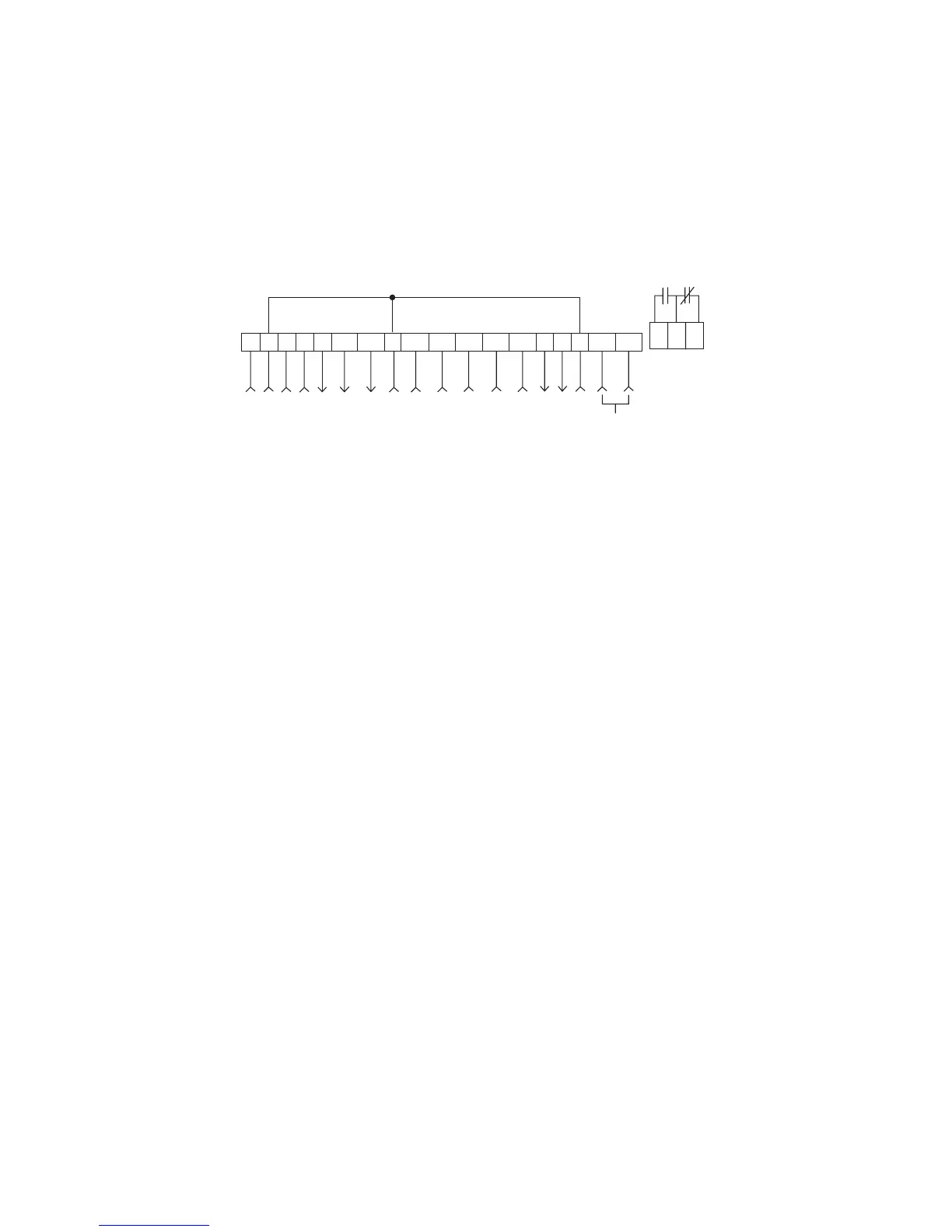

Shown below is the terminal strip on the main control board, along with a brief description of the function
of each terminal. Wiring shown above the terminal strip indicates internal wiring on the main control board.
NOTE: The function of terminals TB-10A, TB-10B, TB-13A, TB-13B, TB- 13C, TB-13D, TB-14, TB-15,
TB-16, and TB-18 are dependent on the programming of certain parameters. In most cases, the name of the
parameter matches the number of the terminal, allowing quick and easy programming of the terminals to
suite the application. The exception is TB-16 and TB-18, which are governed by Parameter 54 - RELAY.
A complete description of operating the drive in the REMOTE mode can be found in Section 14.2. The
following diagrams provide a quick reference to wire the drive for the most common configurations.
36
1
2
5A
5B 6
10A 10B
2
12A
13A
13B
13C 13D
14 15
2
RXA
TXB
FORM C RELAY
16
17
18
RS-48S SERIAL
COMMUNICATIONS
CIRCUIT COMMON
OPEN COLLECTOR OUTPUT
OPEN COLLECTOR OUTPUT
TB-13D FUNCTION
TB-13C FUNCTION
TB-13B FUNCTION
TB-13A FUNCTION
START
CIRCUIT COMMON
0-10 OR 2-10 VDC OUTPUT: FREQUENCY
0-10 OR 2-10 VDC OUTPUT: LOAD
10 VDC SUPPLY FOR SPEED POT
4-20 mA SPEED REFERENCE INPUT
0-10 VDC SPEED REFERENCE INPUT
CIRCUIT COMMON
STOP
