16.2 PARAMETER ACCESS USING SPEED DIAL
SPEED DIAL is used to access parameters quickly using the parameter number. Once accessed, the
parameter can be programmed as described in Section 16.1. SPEED DIAL is accessed by pressing the

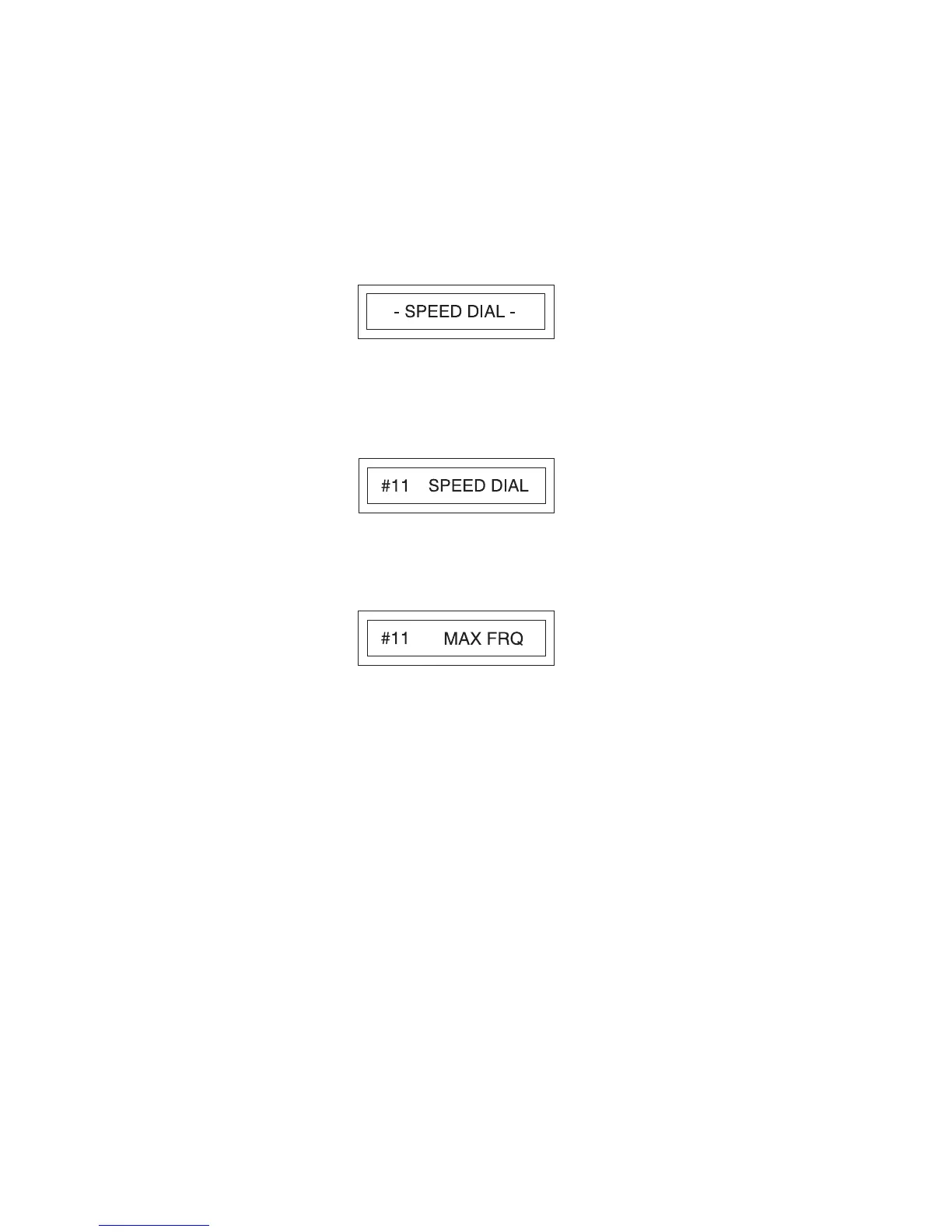

AUTO/MAN key while in the PROGRAM mode. This will activate the SPEED DIAL display as shown
below:
Once in SPEED DIAL, the UP and DOWN arrow keys will allow the operator to scroll through the
parameter numbers. The display will continue to show SPEED DIAL while scrolling through the
parameter number, as shown below:
When the desired parameter is reached, the SPEED DIAL display will be replaced by the parameter name:
Once the desired parameter is displayed on the screen, press the ENTER key to display the parameter name
and present setting. The parameter setting can now be changed by the method described in Section 16.1.
Press the AUTO/MAN key to return to SPEED DIAL.
42
