5
HP INPUT CATALOG
(kW) VOLTAGE NUMBER H W D N P Q R S
7.5 240/200 174545 7.88 7.86 5.95 5.13 3.95 1.80 5.88 1.13
(5.5) 480/400 174924 7.88 7.86 5.94 5.13 3.95 1.50 5.88 1.13
590 174929 7.88 7.86 5.94 5.13 3.95 1.50 5.88 1.13
10 240/200 174551 11.25 7.86 6.84 3.93 4.19 2.00 7.75 1.38
(7.5) 480/400 174552 9.38 7.86 6.84 3.93 4.19 2.00 5.88 1.13
590 174553 9.38 7.86 6.84 3.93 4.19 2.00 5.88 1.13
15 240/200 174557 12.75 7.86 6.84 3.93 4.19 2.00 9.25 1.38
(11) 480/400 174558 11.25 7.86 6.84 3.93 4.19 2.00 7.75 1.38
590 174559 12.75 7.86 6.84 3.93 4.19 2.00 9.25 1.38
20 240/200 174560 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
(15) 480/400 174561 12.75 7.86 6.84 3.93 4.19 2.00 9.25 1.38
590 174562 12.75 7.86 7.40 3.93 4.19 2.00 9.25 1.38
25 240/200 174569 15.75 10.26 8.35 5.13 5.00 2.50 12.25 1.38
(18.5) 480/400 174563 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
590 174564 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
30 240/200 174571 15.75 10.26 8.35 5.13 5.00 2.50 12.25 1.38
(22) 480/400 174565 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
590 174598 15.75 10.26 7.74 5.13 5.00 2.50 12.25 1.38
40 480/400 174567 12.75 10.26 8.35 5.13 5.00 2.50 9.25 1.38
(30) 590 174599 15.75 10.26 8.35 5.13 5.00 2.50 12.25 1.38
50 480/400 174593 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
(37) 590 174594 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
60 480/400 174572 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
(45) 590 174573 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
W
R
D
H
Q
Q
P
N

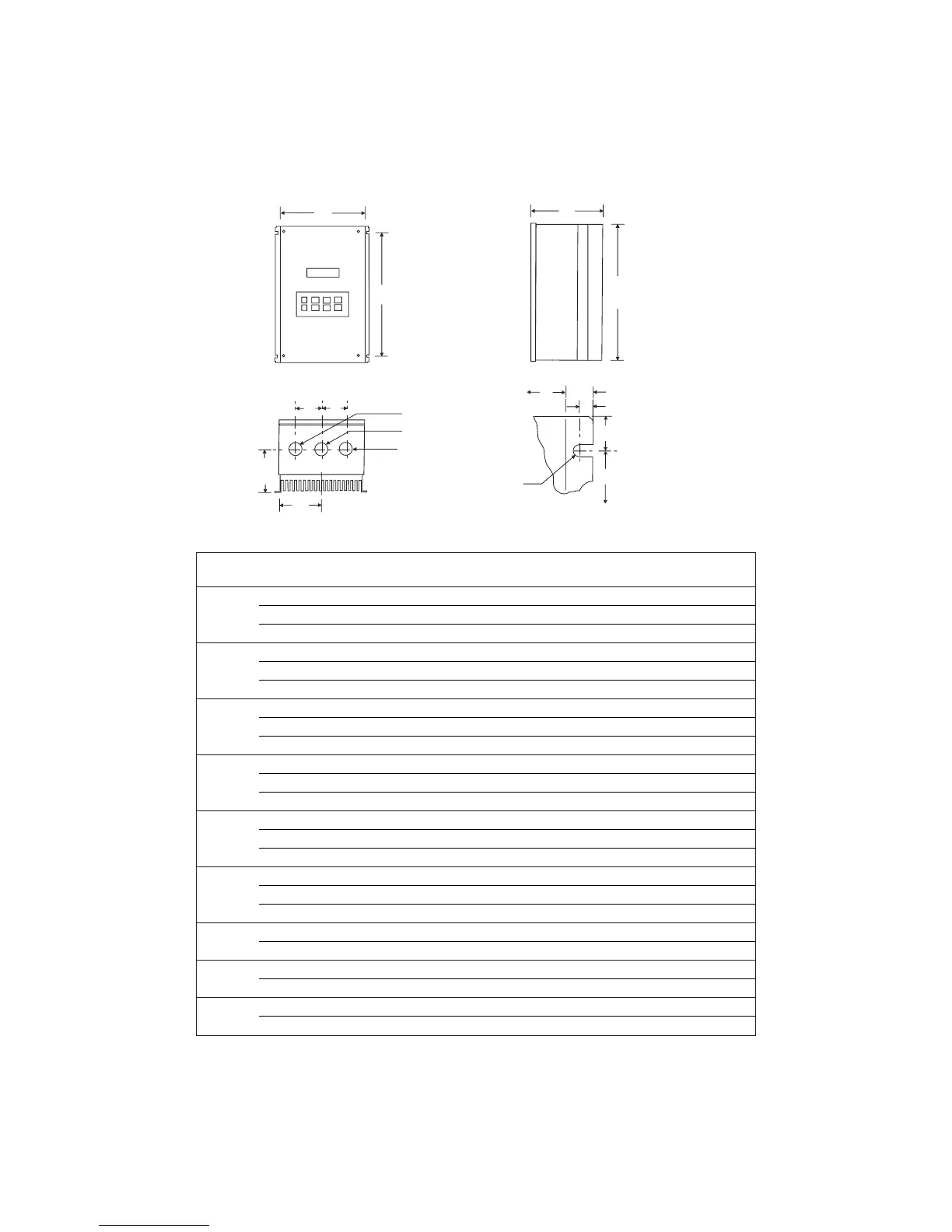

Conduit Holes:
S Dia.
0.88" Dia.
S Dia.
T
Dia. Slot
Mounting Tab Detail
W
U
V
1.00"
R
IF W 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
