Assembly
WARNING: Do not connect the electric scarifier +
dethatcher to the power supply until assembly is complete.
Failure to comply could result in accidental starting and
severe personal injury.
Always wear gloves during assembly.

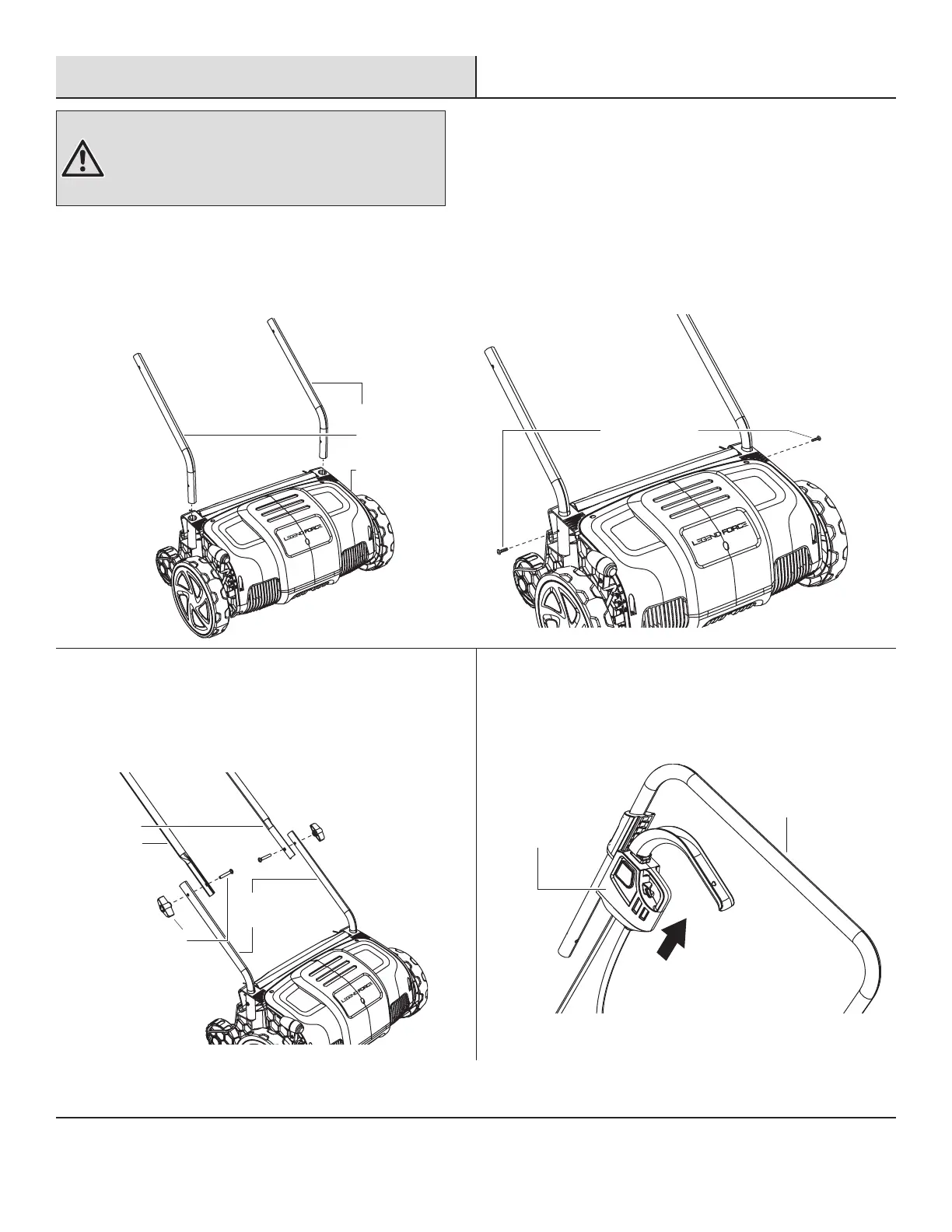

1
Connecting the handle bars
□ Insert the lower handle bars into the motor housing and secure it with the two Phillips screws.
Lower handle
bars
Motor housing
Phillips screws
2
Securing handle bar
□ Secure the two middle handle bars to the lower handle
bars using the first set of knobs and bolts. Tighten the
knobs on each side to ensure a secure fit.
Lower handle
bars
Middle
handle
bars
Lower handle
knob + bolt
3
Slide the switch box
□ Slide the switch box on the left side of the upper handle
frame until it clicks and locks in position.
Switch
box
Upper handle
frame
