Pre-Assembly (continued)
PACKAGE CONTENTS

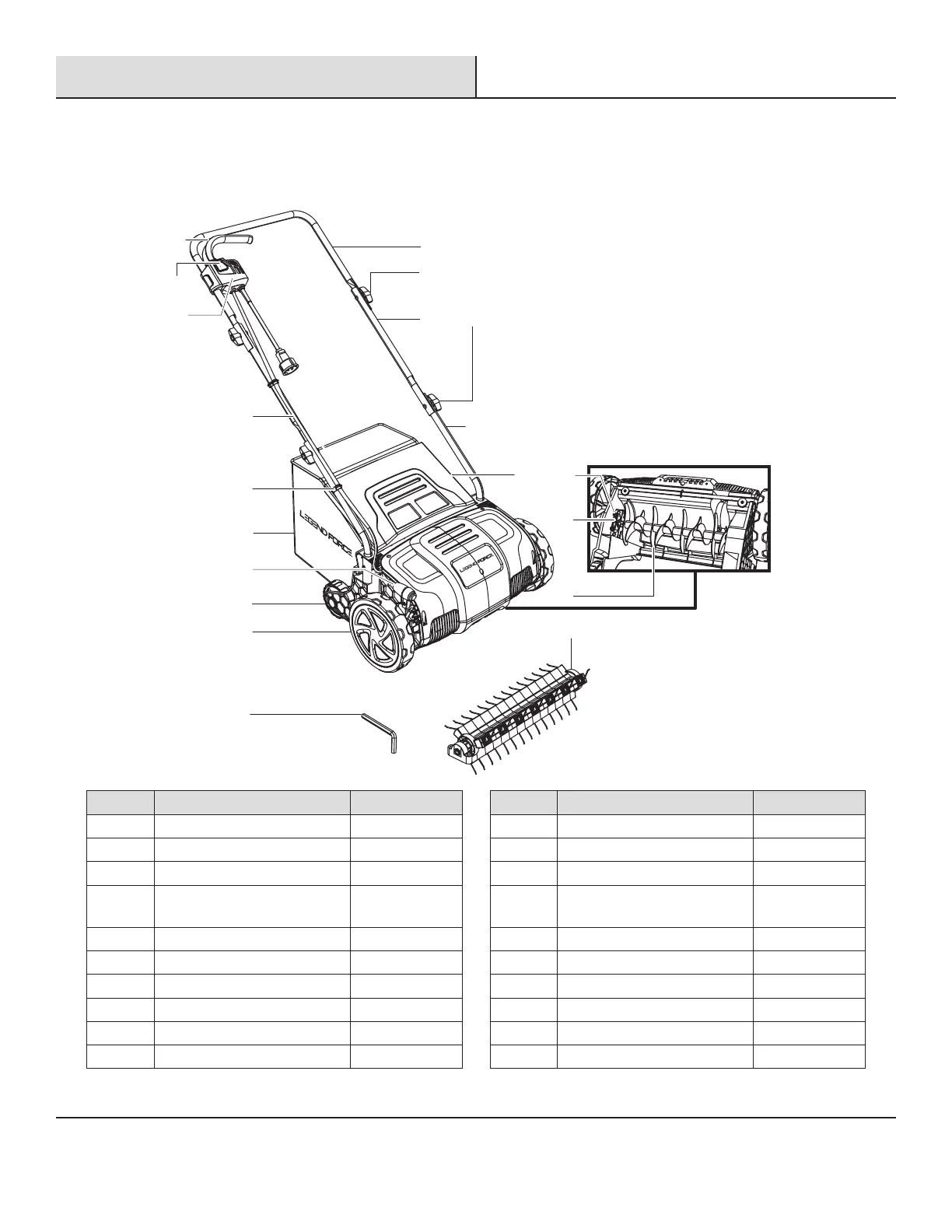

Read the owner’s manual and safety instructions carefully before operating the electric scarifier + dethatcher. Compare the illustration
below to the electric scarifier + dethatcher in order to familiarize yourself with the location of the various controls and adjustments. Save
this manual for future reference and reread it prior to each dethatching session.
BOTTOM
A
B
C
D
E
F
G
H
I
J
L
M
N
O
P
Q
R
T
K
Part Description Quantity Part Description Quantity
A Upper handle frame 1 K Hex key wrench 1
B Upper handle knobs and bolts 2 L Front wheel 2
C Middle handle bars 2 M Rear wheel 2
D Lower handle knobs and bolts 2 N Scarifying/raking depth
adjustment lever
1
E Lower handle bars 2 O Thatch collection bag 1
F Ejector flap 1 P Cable clips 2
G Locking bolts 2 Q Switch box 1
H Bearing seat 1 R Safety lock button 1
I Scarifying cylinder 1 S Switch lever 1
J Dethatcher cylinder 1 T Gear box 1
