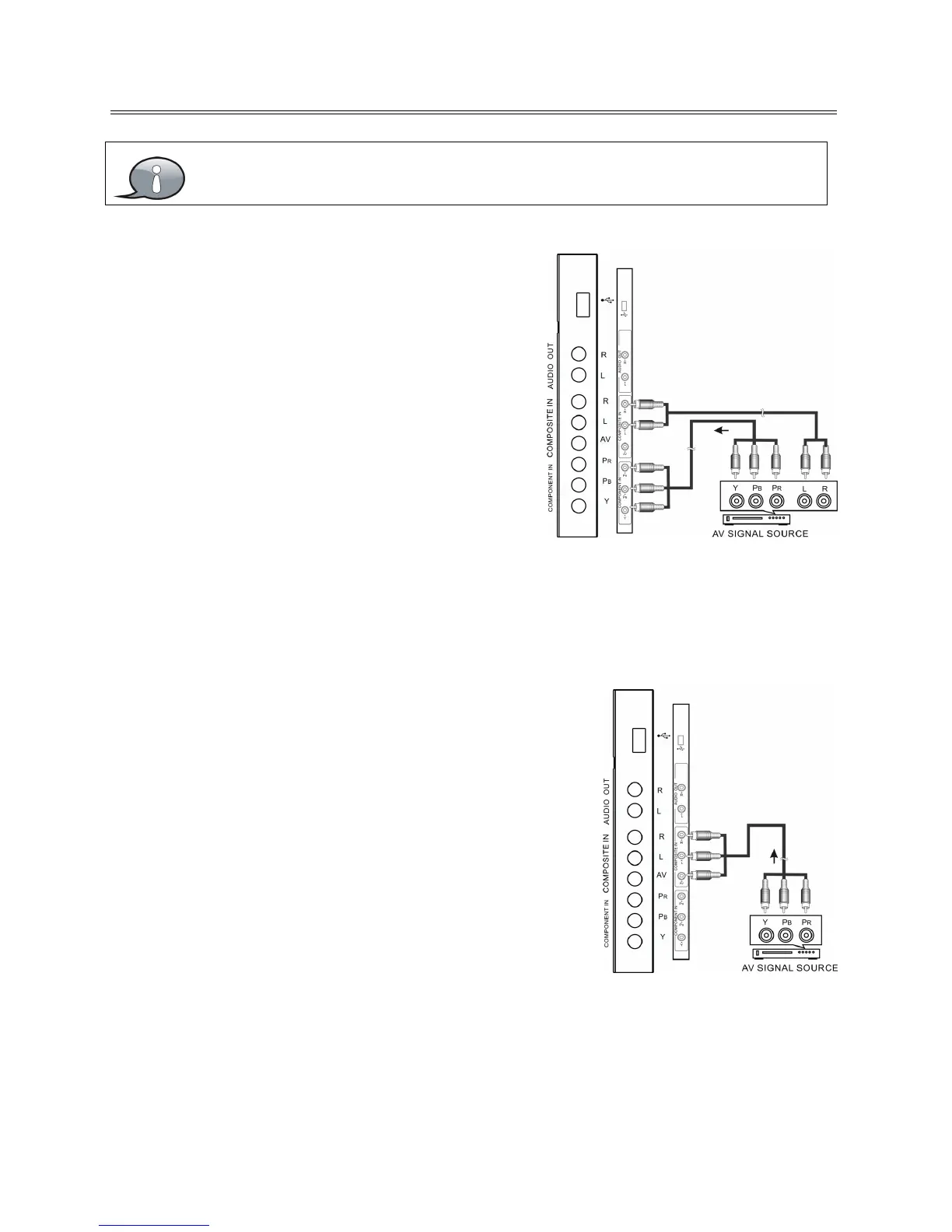

System Connections

ConnectingExternal Equipment to

COMPONENT Video IN (YPbPr)

1. When connecting external equipment to your

television, match the colors of the connecting jacks

(Video: Blue, Green, Red; Audio: White / Red ).

2. Connect the optional component video cables (blue,

green, red) (not included) from the video output

jacks (Y, Pb, Pr) on your external equipment to the

Component Y Pb Pr input on the TV’s rear panel.

3. Connect white / red audio cables for sound from the

audio (L / R) output jacks on your external

equipment to the AV L / R input jacks on the TV’s rear

panel.

4. Press INPUT then direction buttons to select COMPONENT mode, and then press the ENTER

button to confirm.

Connecting to COMPOSITE Input

Use the AV cables to connect the external AV signal source to the

AV input jacks on the rear panel of the unit.

After connection, turn on the power of the unit and the external

AV signal source. Press INPUT then direction buttons to select AV

mode, and then press the ENTER button to confirm.

Connecting to OPTICAL Output

Connect an optional digital cable directly to the television’s OPTICAL audio output to listen through

all inputs except VGA. (VGA does not support digital audio)

HDMI provides both audio and video signals and typically provides superior image

quality to AV and YPBPR.

Legend LE3933 User Manual
