View of Unit

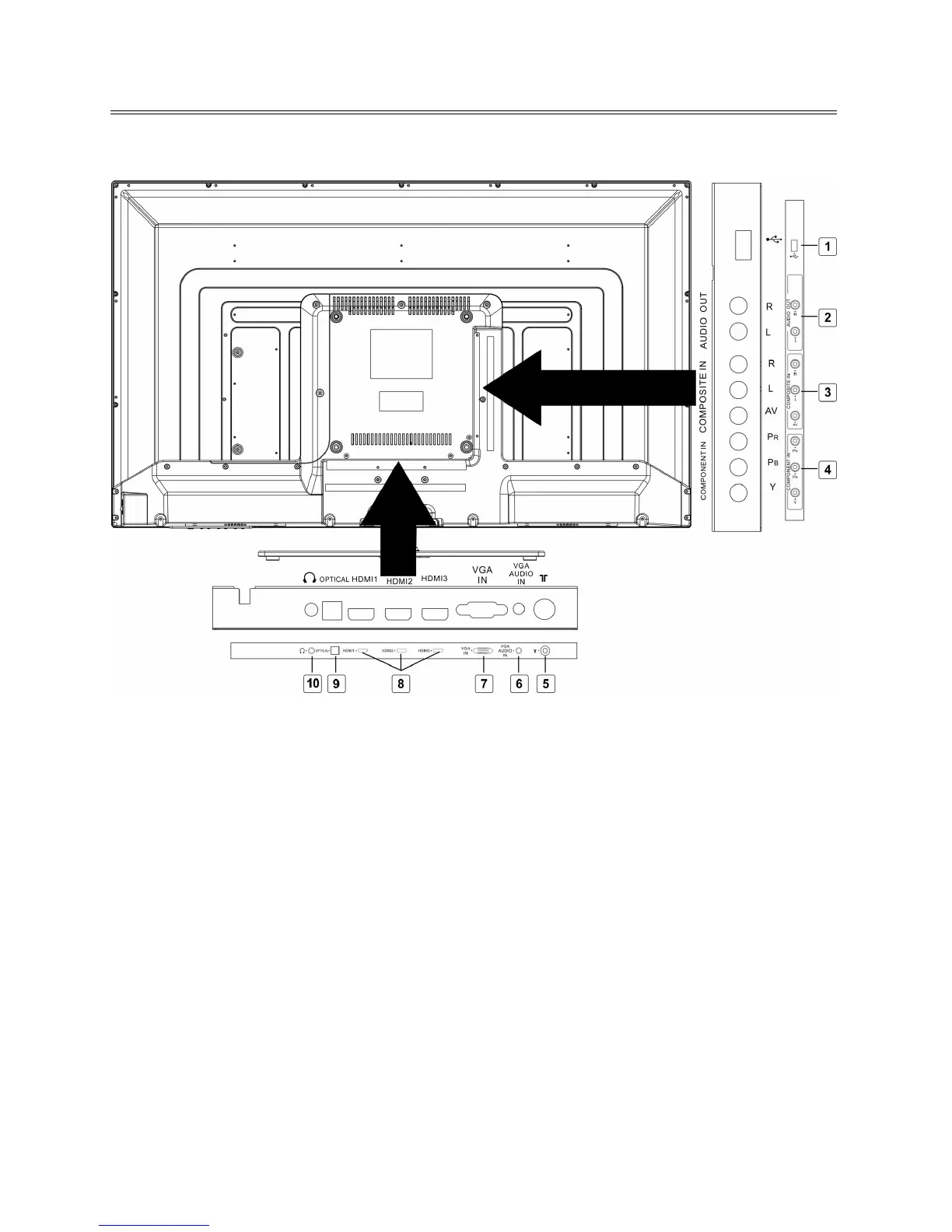

Rear Panel
1. USB Port
Connect the USB device.
2. AUDIO OUT Jack
Connect to audio receiver.
3. COMPOSITE IN Jacks
Connecting for AV signal input in AV mode.
4. COMPONENT IN Jacks
Connecting for the Y/P
B
/P
R
input in
COMPONENT mode.
Y/P
b
/P
r
share the same audio jack with
COMPOSITE.
5. RF INPUT Jack
Connect an antenna or cable connection
for television reception.
6. VGA AUDIO IN Jack
Connecting for VGA audio signal input.
7. VGA IN Jack
Connected to the VGA output jack on a
personal computer.
8. HDMI1/HDMI2/HDMI3 Input Jacks
Connecting for HDMI signal.
9. OPTICAL Jack
Connect an optional coaxial digital cable
(not included) through a compatible amp
/ receiver to enjoy superior audio sound.
10. Earphone Jack
When earphone is inserted, the
loudspeaker is switched off.
