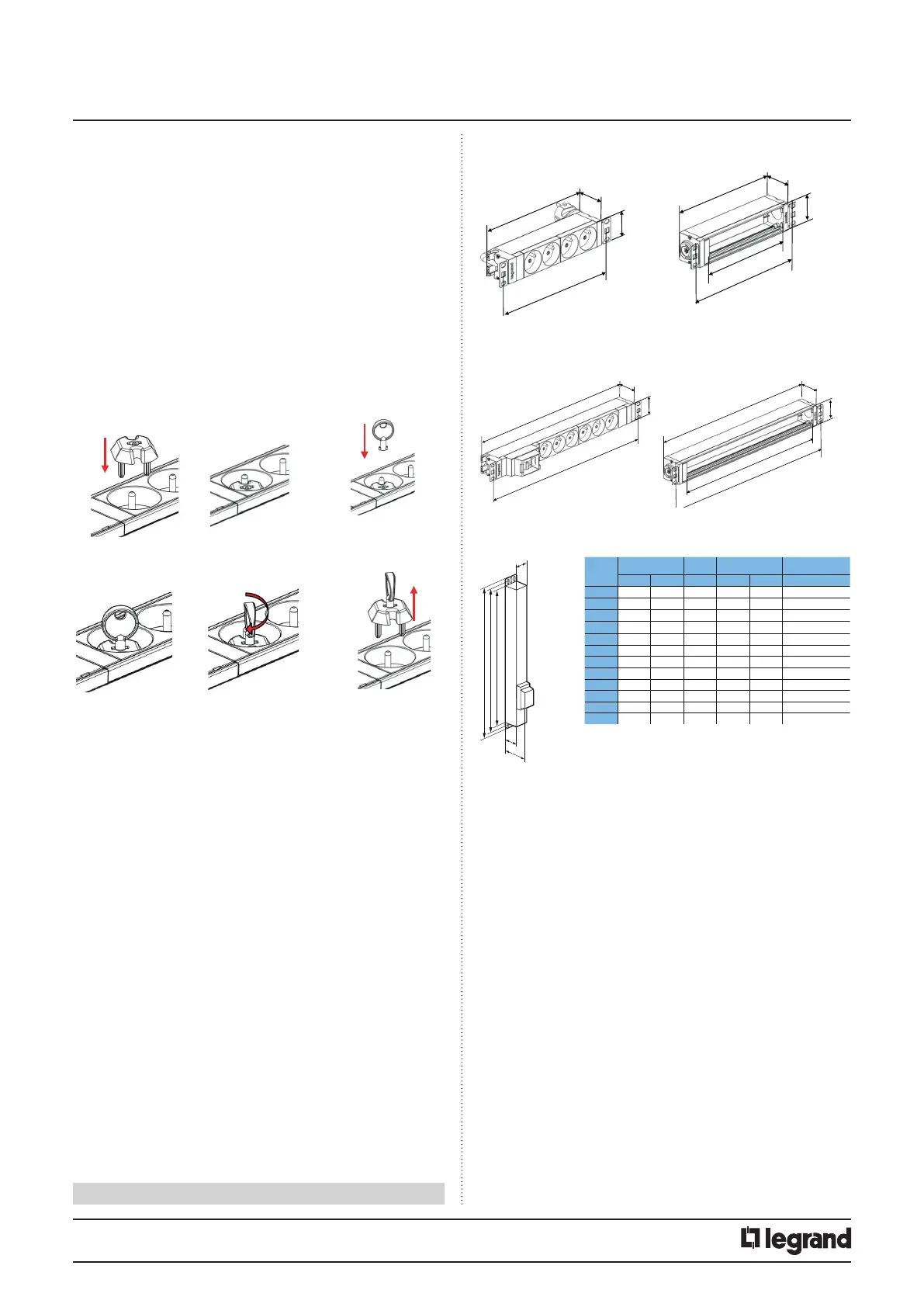

3.10 Locking caps
For locking out the use of a socket.
Require a key to unlock access.
Products comprise a set of 6 locking caps + 1 key.
Cat.No 646890: For French/Belgian, German and Italian standard
sockets (P40)
Cat.No 646892: For UK standard sockets
Cat.No 646894: For C13 standard sockets
Cat.No 646895: For C19 standard sockets
ABS plastic
Light grey RAL 7035
Operating principle
1
2
3
45
6
4. DIMENSIONS
4.1 10’’ PDUS
52.5
44.3
214
237
237
52.5
214
52
180
All 10’’ catalogue numbers
excluding 6 468 98
To be equipped catalogue number
6 468 98
4.2 19’’ PDUS
442
52.5
465
465
52.5
442
52
405
44.3
All 19’’ catalogue numbers
excluding 6 468 99
To be equipped catalogue
number 6 468 99
4.3 ZEROU PDUS
Cat. No
Height Width Depth
Fixing centres
(min.-max.)
AB
(1)
CDE
(2)
F
(1)
1: Total height with standard bracket (screw-xing)
2: Total depth at circuit breaker slot
D
E
C
BFA
6 468 50 1250 129452 52.5 87 1262-1292
6 468 51 1250 129452 52.5 87 1262-1292
6 468 52 1250 129452 52.5 87 1262-1292
6 468 53 1250 129452 52.5 87 1262-1292
6 468 54 1466 151052 52.5 87 1478-1508
6 468 56 1034 107852 52.5 87 1046-1076
6 468 57 1034 107852 52.5 87 1046-1076
6 468 60 1070 111452 52.5 87 1082-1112
6 468 61 1070 111452 52.5 87 1082-1112
6 468 65 1160 120452 52.5 87 1172-1202
6 468 70 1340 138452 52.5 87 1352-1382
6 468 75 1475 151952 52.5 87 1487-1517
