56

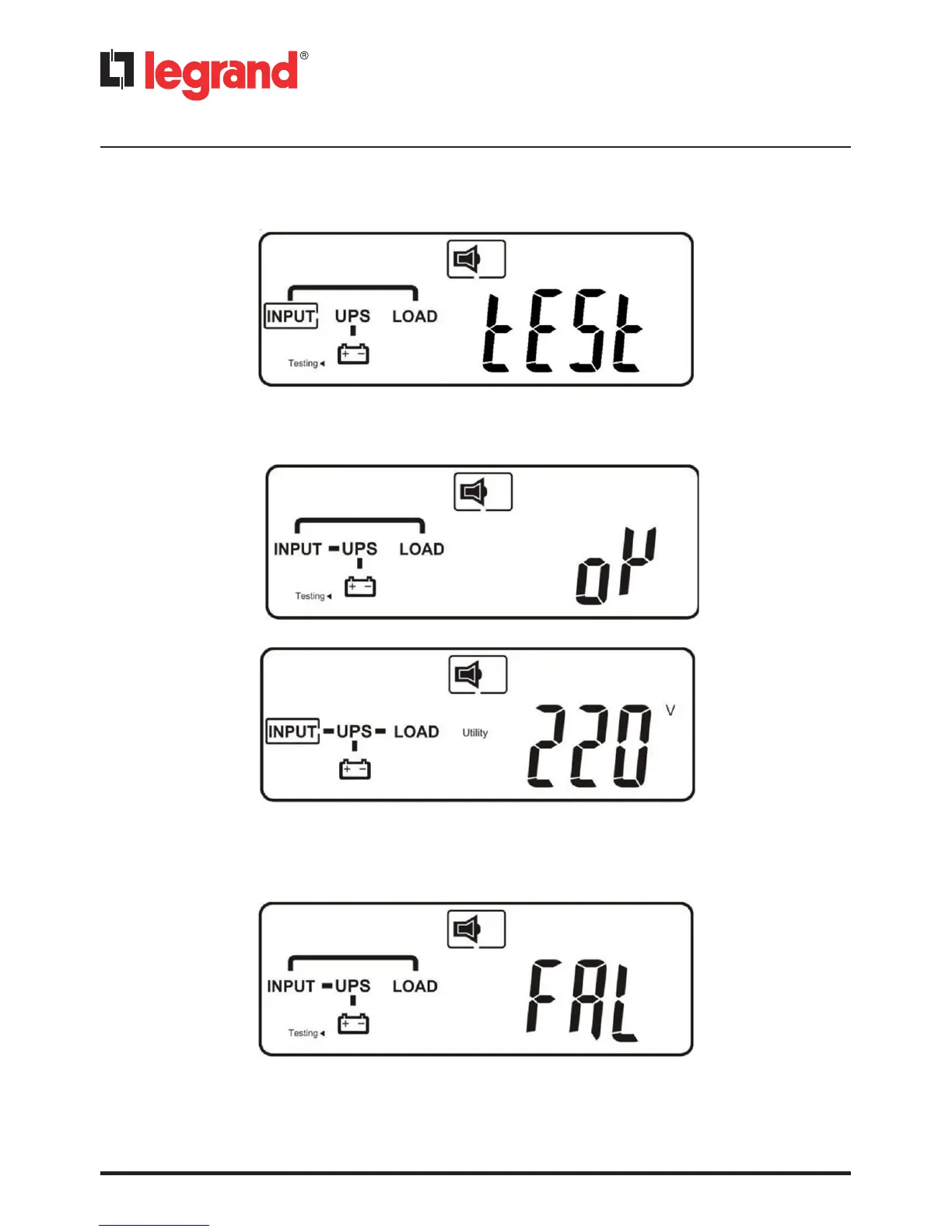

The UPS is in self-test mode. During the self-test mode, the UPS remains in stored energy mode
for some seconds. The display changes from g. 3 to g. 4.
If the self test is successful, the display changes from g. 4 to g. 5 and then to g. 6.
If the self test is not successful, the display changes from g. 4 to g. 7. An error code or error sta-
tus appears on the screen.
6. The start-up procedure is completed. Make sure that the batteries are fully charged or that the
UPS has been connected to the input line for at least 8 hours before turning on the load brea-
kers.
4 Operation
Fig. 4
Fig. 5
Fig. 6
Fig. 7
