LEGRAND DMX3 2500 User Manual

110
DMX
3

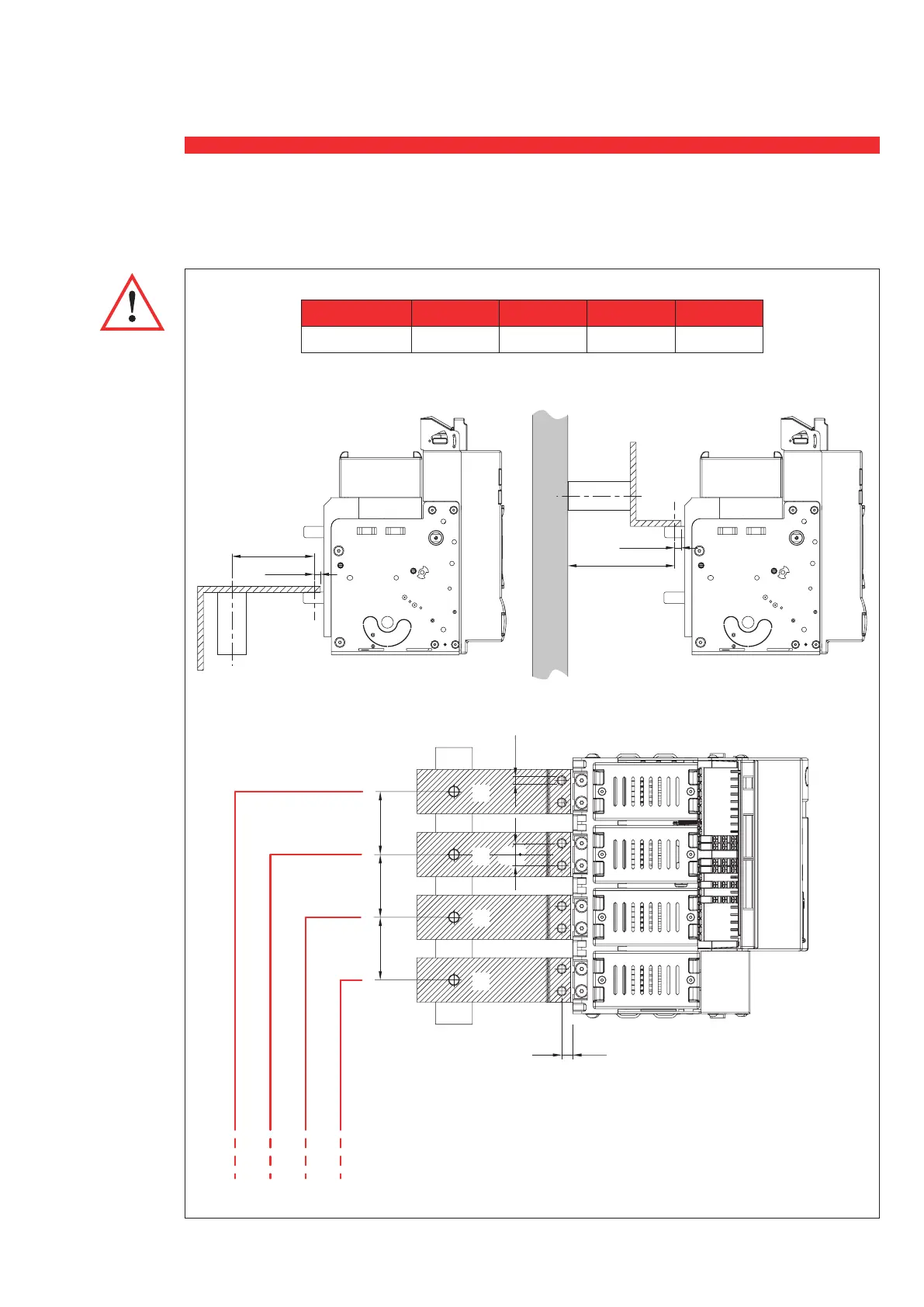

13. Connection for fixed version
858585
ø11
15
30
==
11mm
"X" max (mm)
11mm
"X" max (mm)
L3
L2
L1
N
Termination
support must
be made
of isolating
material and
sized according
to the bars in
order to avoid
performances
during
short circuit
conditions.
DMX
3
2500.
Icc (kA) ≤ 42 ≤ 50 ≤ 65 ≤ 100
“X” max (mm) 350 300 250 150

LEGRAND DMX3 2500 Specifications

General

Rated current In	2500 A
Suitability for isolation	Yes
Rated operational voltage Ue	690 V AC
Rated insulation voltage Ui	1000 V
Rated impulse withstand voltage Uimp	12 kV
Voltage Rating	690 V AC
Standard	IEC 60947-2
Mounting	Fixed
Poles description	3P
Breaking capacity code	H, N
Utilisation category	B
Breaking Capacity	50 kA
