9. Features of the main electrical accessories

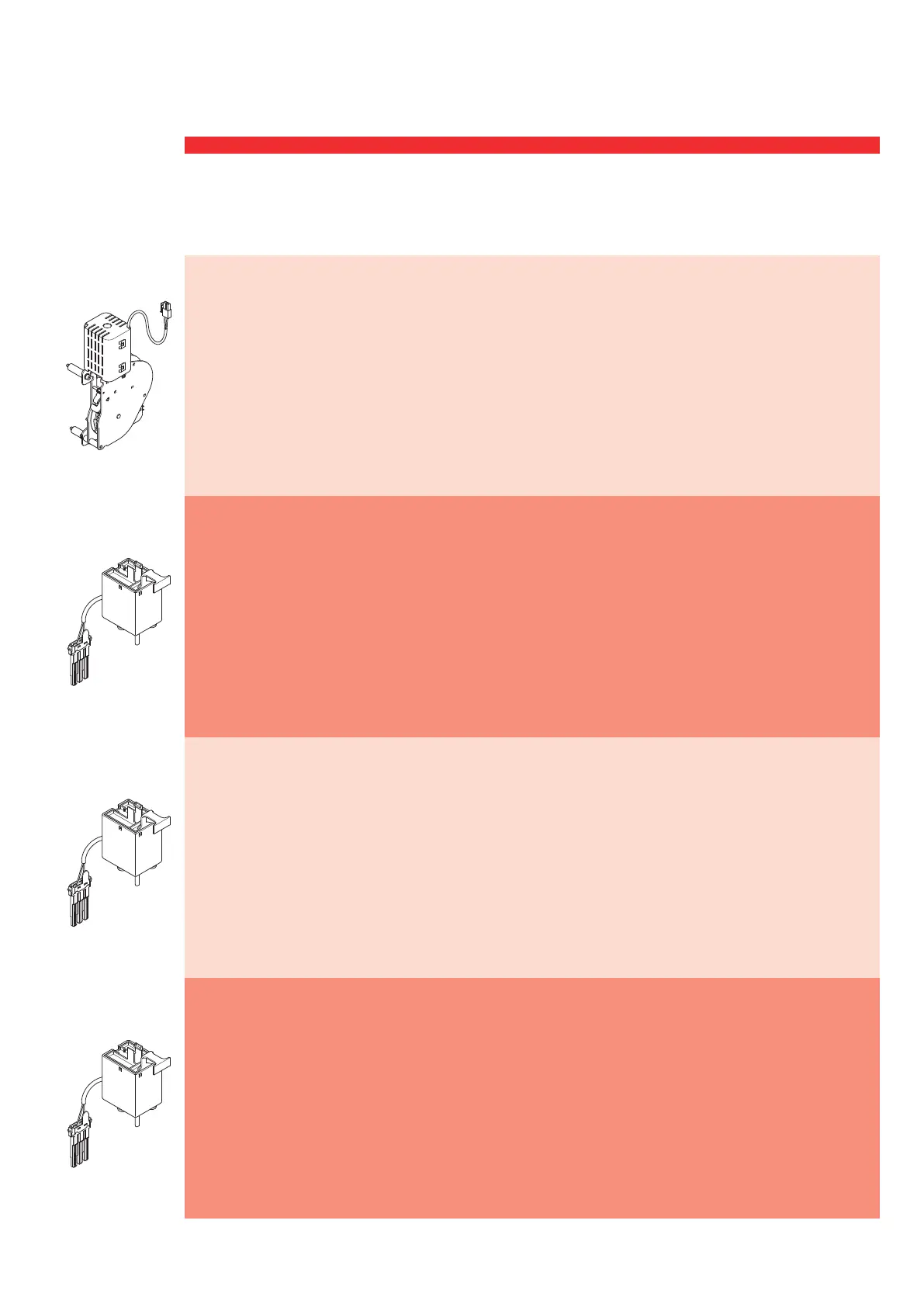

Motor operator
Technical features
Rated operating voltage Vn (Va.c.): 24V-48V-110V÷130V-220V÷250V-400V÷440V - 480V
(Vd.c.): 24V-48V-110V÷130V-220V÷250V
Voltage range (% Vn): 85÷110
Maximum power consumption (W/VA): 180/180 (DMX
3
2500), 240/240 (DMX
3
4000-6300)
Maximum peak current for about 80ms: 2÷3xIn
Charging time (s): 5 (DMX
3
2500), 7 (DMX
3
4000-6300)
Operating frequency (n°/min): 2 (DMX
3
2500), 1 (DMX
3
4000-6300)
Closing coil
Technical features
Rated operating voltage Vn (Va.c.): 24V-48V-110V÷130V-220V÷250V -415V/440V/480V
(Vd.c.): 24V-48V-110V÷130V-220V÷250V
Voltage range (% Vn): 85÷110
Pick-up consumption (W/VA): 500/500
Pick-up time (ms): 180
Hold consumption (W/VA): 5/5
Closing time (ms): 50
Isolation voltage (kV): 2,5
Shunt trip
Technical features
Rated operating voltage Vn (Va.c.): 24V-48V-110V÷130V-220V÷250V -415V/440V/480V
(Vd.c.): 24V-48V-110V÷130V-220V÷250V
Voltage range (% Vn): 70÷110
Pick-up consumption (W/VA): 500/500
Pick-up time (ms): 180
Hold consumption (W/VA): 5/5
Opening time (ms): 30
Isolation voltage (kV): 2,5
Undervoltage release
Technical features
Rated operating voltage Vn (Va.c.): 24V-48V-110V÷130V-220V÷250V -415V/440V/480V
(Vd.c.): 24V-48V-110V÷130V-220V÷250V
Voltage range (% Vn): 85÷110
Pick-up consumption (W/VA): 500/500
Pick-up time (ms): 180
Hold consumption (W/VA): 5/5
Opening time (ms): 60
Isolation voltage (kV): 2,5
