43
DMX
3
Les supports
de barres
doivent être en
matériaux isolant
et correctement
dimensionnés
pour ne pas
compromettre les
performances en
présence d’un
éventuel court-
circuit.

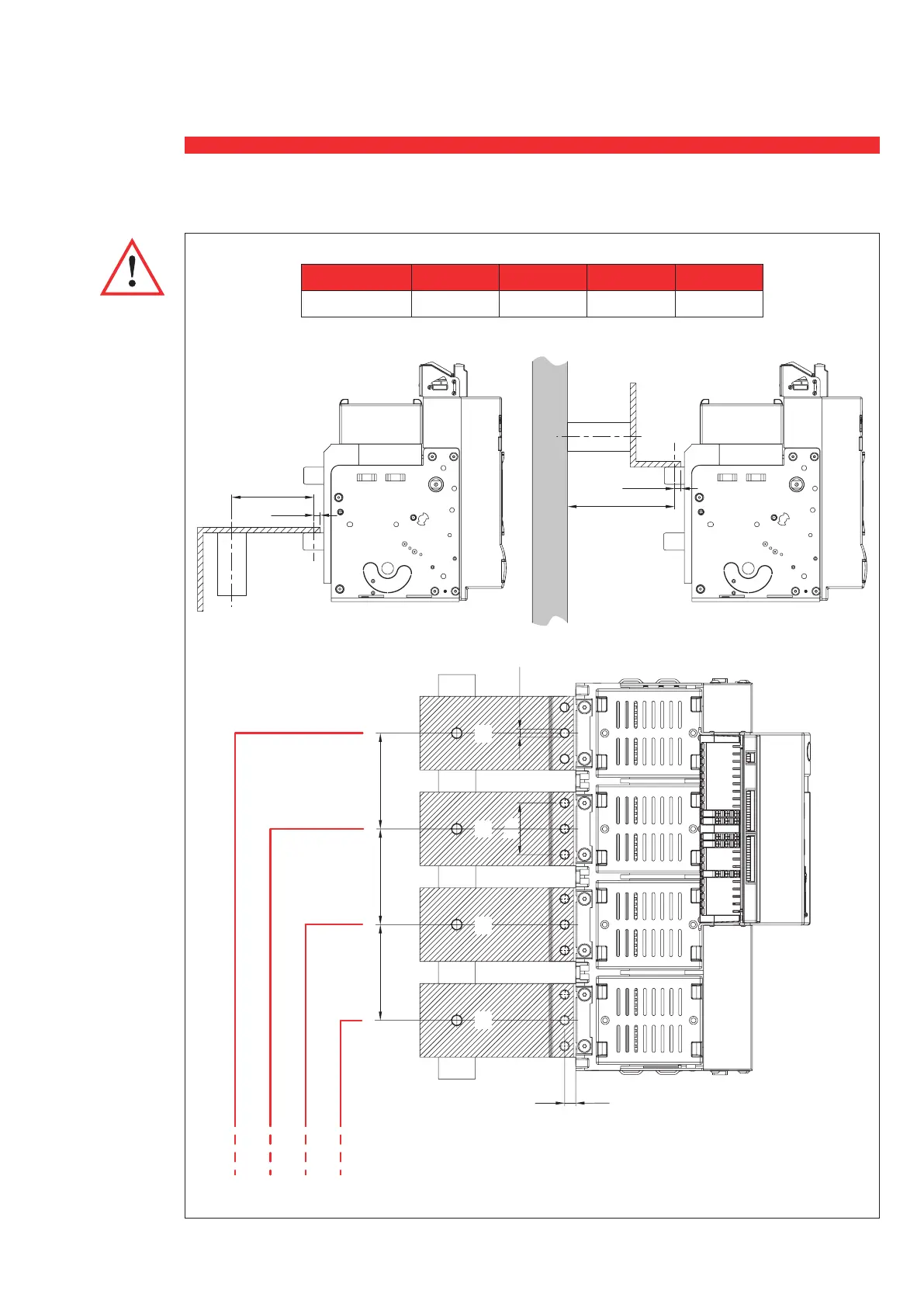

ø11
130130130
70
15
11mm
11mm
"X" max (mm)
"X" max (mm)
L3
L2
L1
N
DMX
3
4000.
Icc (kA) ≤ 42 ≤ 50 ≤ 65 ≤ 100
“X” max (mm) 350 300 250 150
