LEGRAND DMX3 Series User Manual

72
DMX
3

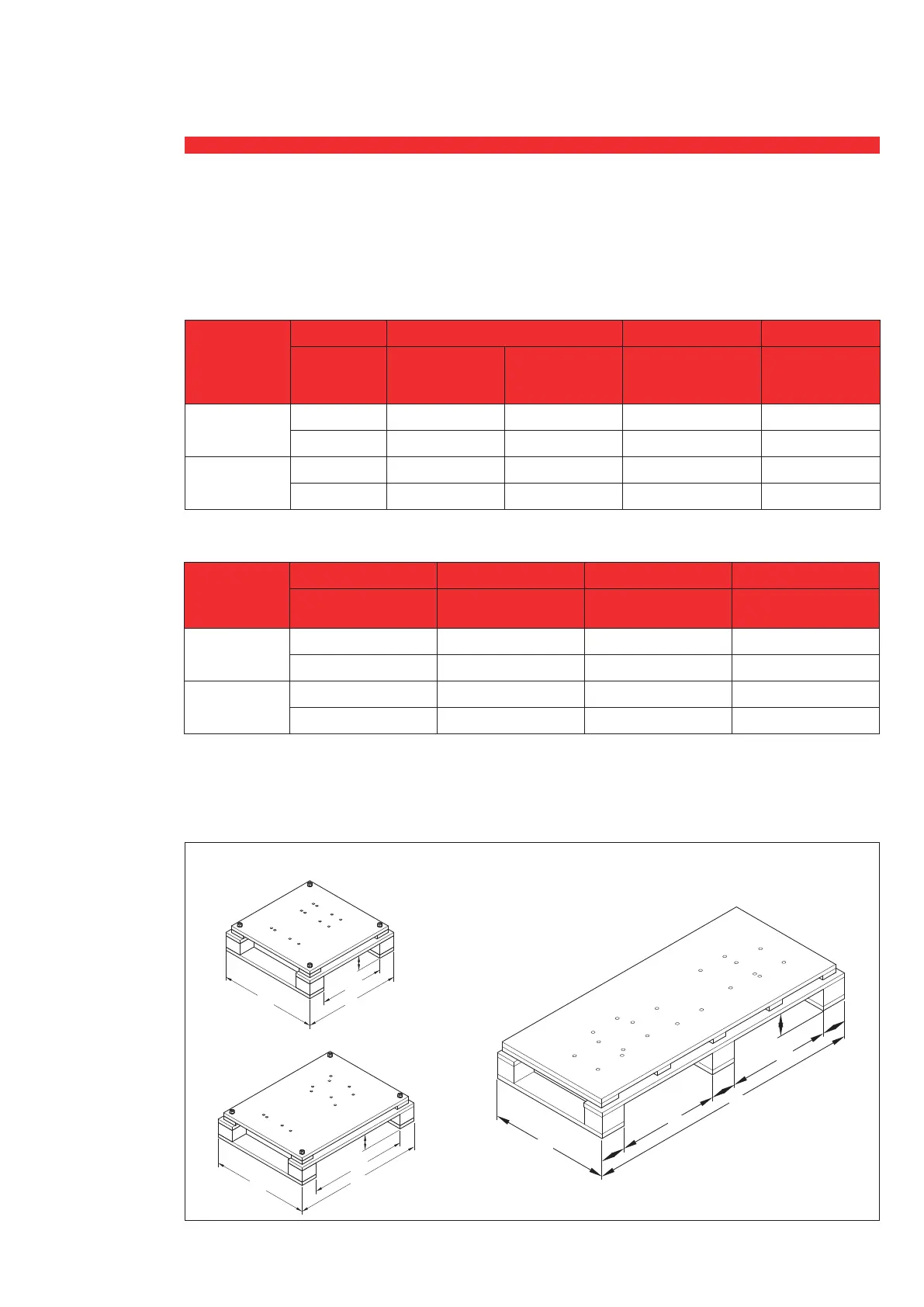

1. Weights
It is important to know the weight of the breaker for proper selection of handling equipment.
Net Weight.
Circuit breakers
Switch disconnectors
2. Handling and unpacking
The breaker can be transported using a fork lift.
Type
DMX
3
2500 DMX
3
4000 DMX
3
6300
Rating (A)
630/800/1000/
1250/1600
(version 42kA)
630/800/1000/
1250/1600/
2000/2500
630/800/1000/
1250/1600/2000
2500/3200/4000
5000/6300
Fixed
3P 39 kg 41 kg 59 kg 118 kg
4P 46 kg 48 kg 76 kg 152 kg
Draw-out
3P 73 kg 77 kg 108 kg 225 kg
4P 90 kg 94 kg 137 kg 274 kg
Type
DMX
3
2500 DMX
3
4000 DMX
3
6300
Rating (A)
1250/1600/
2000/2500
1250/1600/2000/
2500/3200/4000
6300
Fixed
3P 39 kg 57 kg 114 kg
4P 45 kg 73 kg 146 kg
Draw-out
3P 75 kg 106 kg 212 kg
4P 91 kg 134 kg 268 kg
600
800
100
600
600
600
100
400
600
1300
500
500
100
100
100
100
DMX
3
6300DMX
3
2500
DMX
3
4000
