LEGRAND DMX3 Series User Manual

81
DMX
3
Only for draw-out breaker
8 Remove the cap from the frontal cover
10 Nm
1 Nm
10 Nm
1 Nm

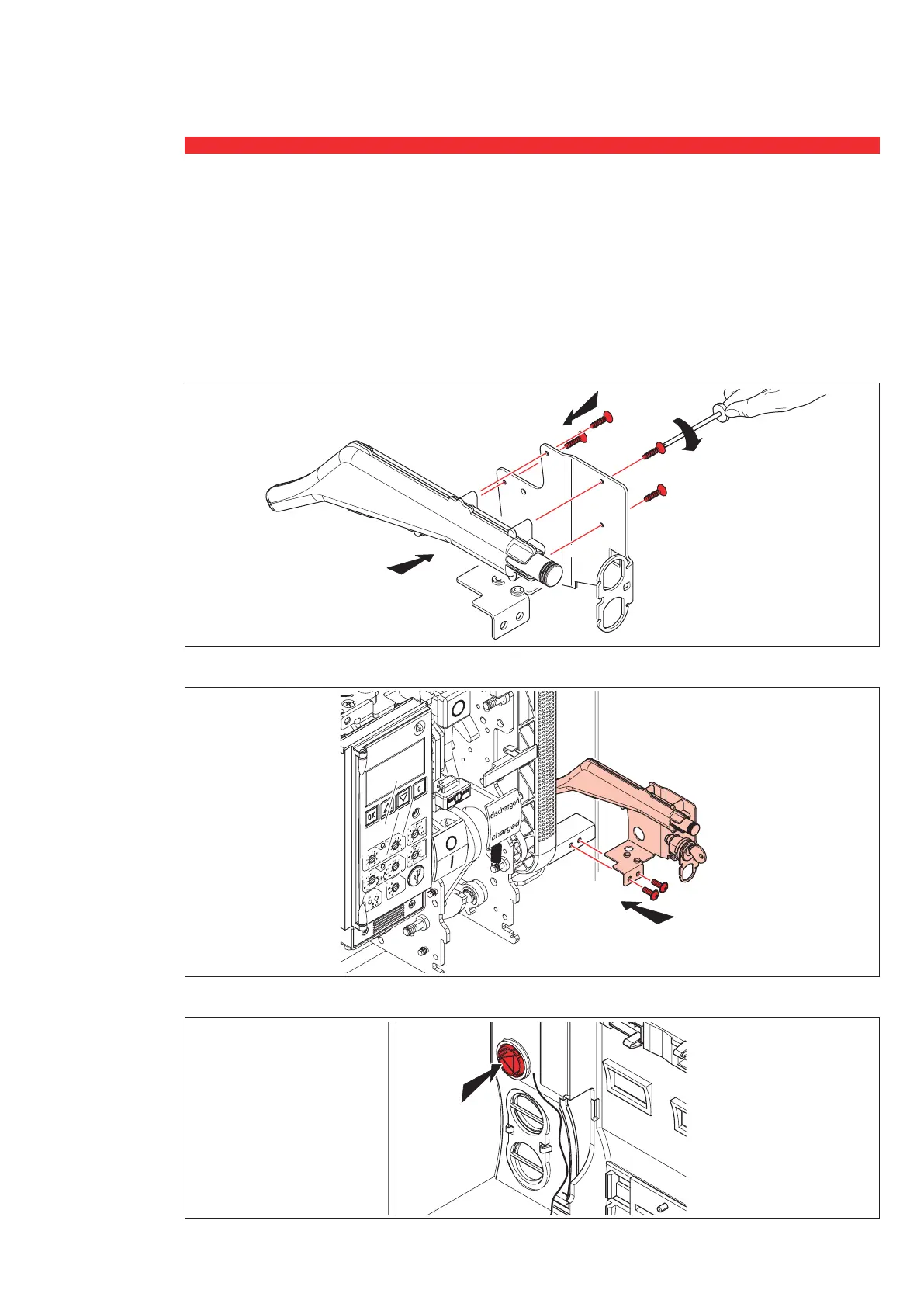

1 Remove frontal cover
2 If necessary install the mechanical interlock
3 If necessary install the ready to close contact
4 If necessary install the motor operator
5 If necessary install the keylock (optional) for draw-out version
6 Screw the case of the draw-out bar on the delivered support
7 Screw the support on the bottom crossbar
10 Nm
1 Nm
