PREMIUS
1-10 kVA
G

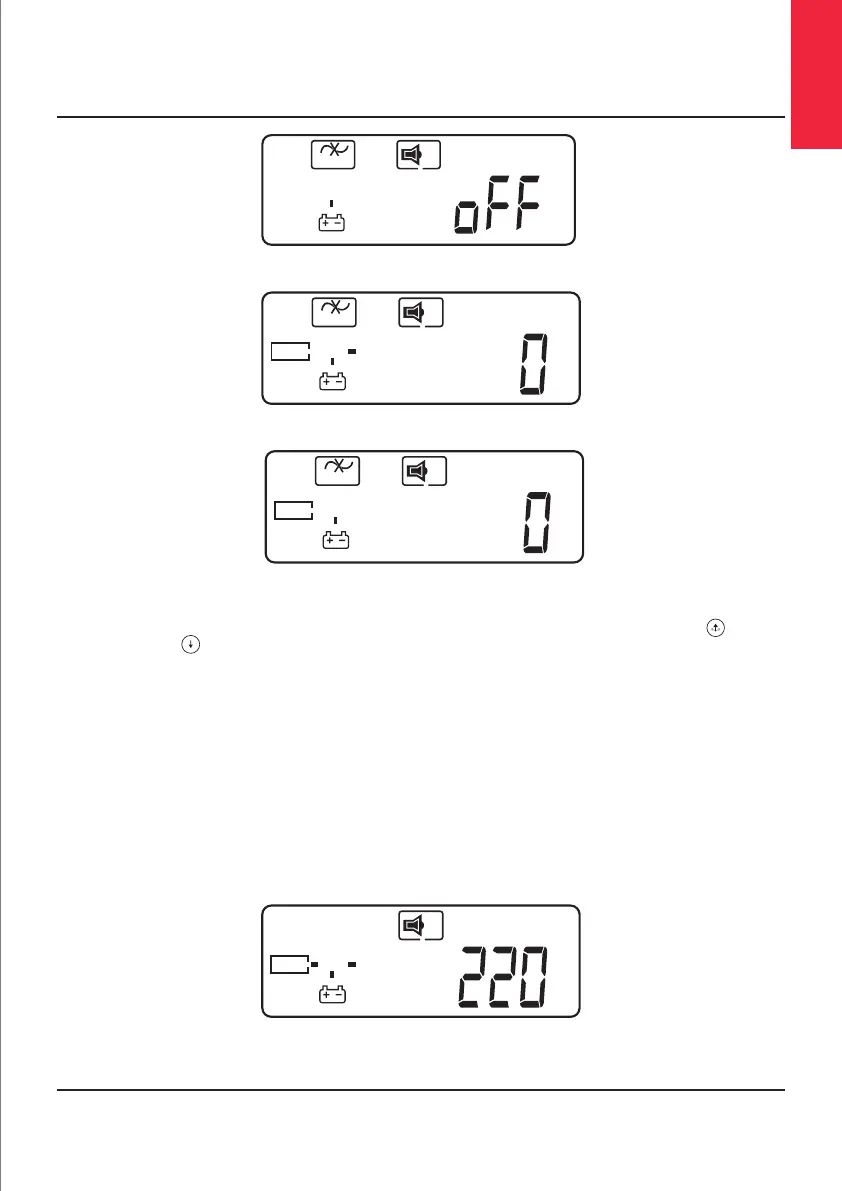

“Off”, which means the UPS pre-start was successful
H
Utility input is ‘0’ and Utility Abnormal
I
3.5.3 Check Measured Values and Figures detected by the UPS
3.5.3.1. If you would like to check the measured values and figures detected by the UPS use the scroll up and
scroll down keys. When you scroll down the LCD will display
figure C (Voltage from Utility Input)
figure I1 (Voltage from Bypass Input)
figure J (Frequency from Utility Input)
figure K (Frequency from Bypass Input)
figure L (UPS Output Voltage)
figure M (UPS Output Frequency)
figure N (UPS Output Load %)
figure O1 (UPS Battery Voltage)
figure O2 (UPS Battery Numbers)
figure P (UPS Inner Temperature).
I1
Voltage comes from Bypass Input
Utility
INPUTLOAD
UPS
Utility
INPUTLOAD
UPS
Utility
V
Utility
Utility
V
INPUTLOAD
UPS
INPUTLOAD
UPS
Bypass
V
