2
LMCP-GE48 RETROFIT KIT INSTALLATION
Step 1: Remove all interior components,
leaving relays and power supply only.
Step 2: Remove LMRD cards from adapter plate.

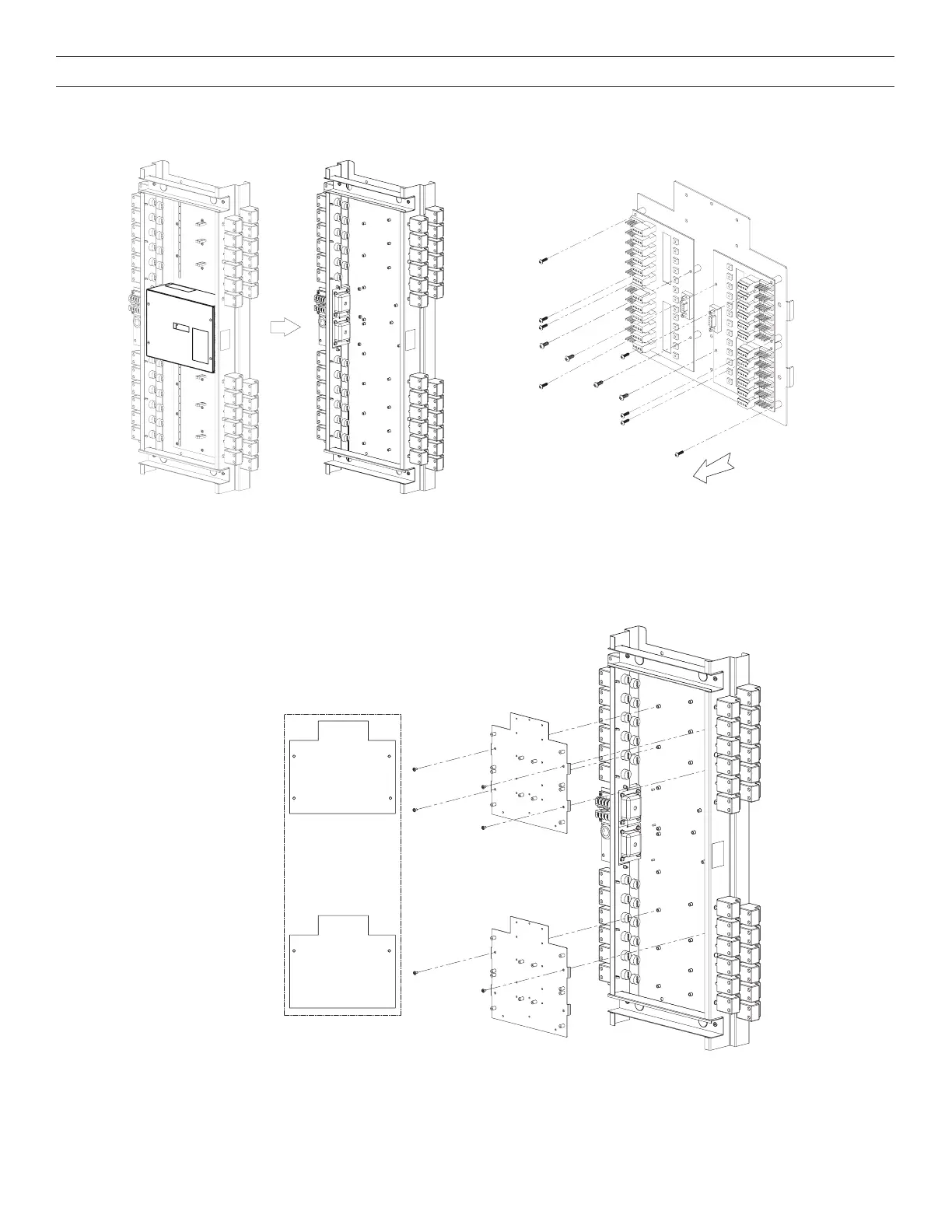

Fig. 8: Example GE48
panel ssembly
Fig. 10: Remove LMRDFig. 9: After removing
interior items
Step 3: Install adapter plate.
Mounting plate
screw locations
(Total 4 #6-32
screws for
mounting plate)
NOTE: Only two (2)
screws needed for
bottom plate)
LMRD-12-MP
P/N # 841436
LMRD-12-MP
P/N # 841436
Fig. 11: Adapter plate mounting detail
To Next Page
