LEGRAND Wattstopper LMCP-GE24 User Manual

800.879.8585
www.legrand.us/wattstopper
No. 24813 – 11/16 rev. 1
© Copyright 2016 Legrand All Rights Reserved.
© Copyright 2016 Tous droits réservés Legrand.
© Copyright 2016 Legrand Todos los derechos reservados.
Wattstopper warranties its products to be free
of defects in materials and workmanship for a
period of five (5) years. There are no obligations
or liabilities on the part of Wattstopper for
consequential damages arising out of, or in
connection with, the use or performance of this
product or other indirect damages with respect
to loss of property, revenue or profit, or cost of
removal, installation or reinstallation.
Wattstopper garantit que ses produits sont
exempts de défauts de matériaux et de fabrication
pour une période de cinq (5) ans. Wattstopper
ne peut être tenu responsable de tout dommage
consécutif causé par ou lié à l’utilisation ou
à la performance de ce produit ou tout autre
dommage indirect lié à la perte de propriété, de
revenus, ou de profits, ou aux coûts d’enlèvement,
d’installation ou de réinstallation.
Wattstopper garantiza que sus productos
están libres de defectos en materiales y mano
de obra por un período de cinco (5) años. No
existen obligaciones ni responsabilidades por
parte de Wattstopper por daños consecuentes
que se deriven o estén relacionados con el
uso o el rendimiento de este producto u otros
daños indirectos con respecto a la pérdida
de propiedad, renta o ganancias, o al costo
de extracción, instalación o reinstalación.
WARRANTY INFORMATION INFORMATIONS RELATIVES À LA GARANTIE INFORMACIÓN DE LA GARANTÍA

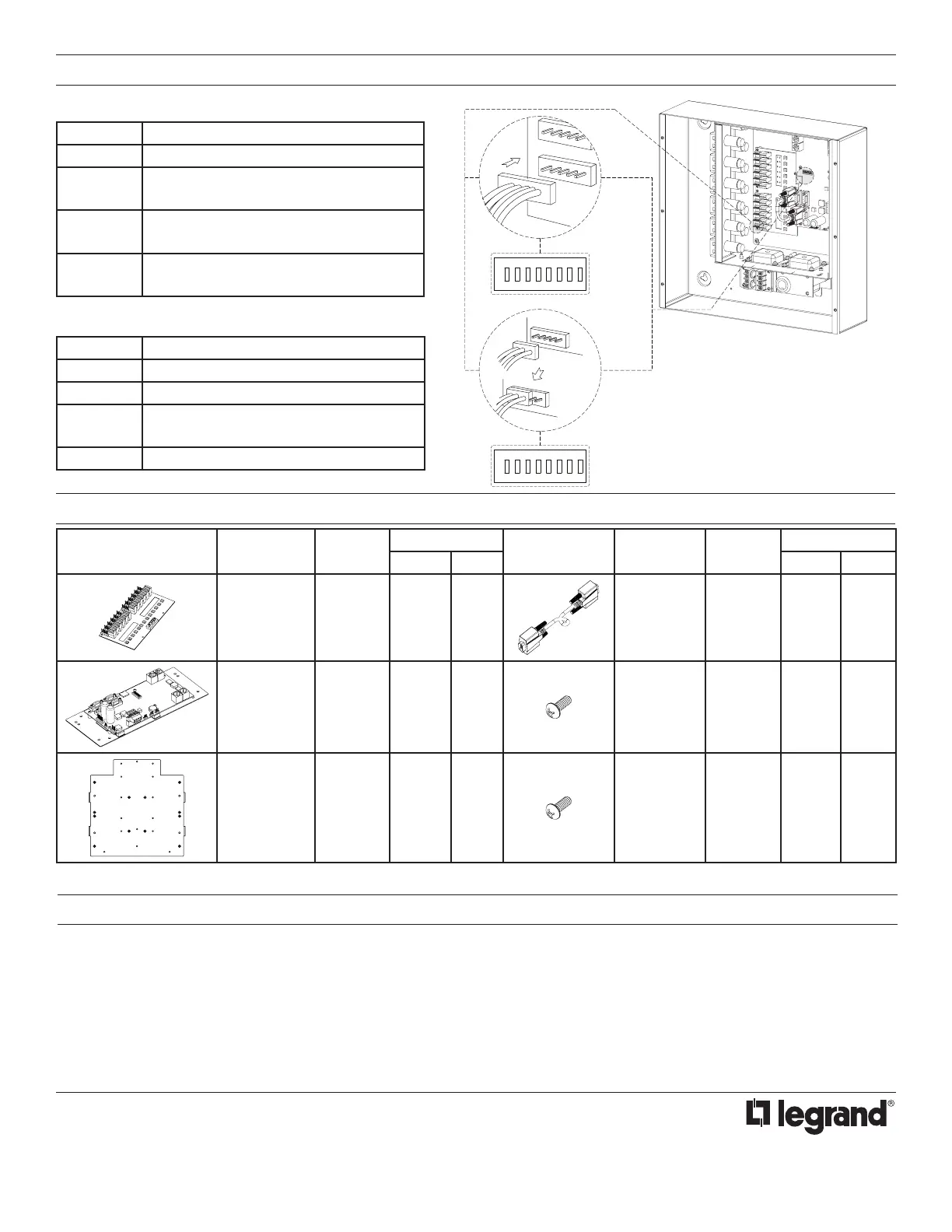

RELAY CONNECTION DETAILS
Option 1:
5-pin connector
DIP Switch Setting
1, 2, 3, 4, 6 Reserved (OFF)
5 ON (for GE relays)
OFF (for HDR relays)
7 ON: Relays ON/OFF during PnL
OFF: Only pilot LEDs ON/OFF during PnL
8 ON: Pilot LEDs follow logic
OFF: Pilot LEDs follow Pilot
Option 2:
3-pin connector (no pilot)
DIP Switch Setting
1, 2, 3, 4, 6 Reserved (OFF)
5 ON (50 ms pulse width)
7 ON: Relays ON/OFF during PnL
OFF: Only pilot LEDs ON/OFF during PnL
8 ON
PARTS LIST
Part Description Part
Number
Quantity Part Description Part
Number
Quantity
GE24 GE48 GE24 GE48
LMRD-12 #16694 2 4
Cable
Assembly
#841449 2 4
LMPI-ASSY #770431 1 1
Screw #6-32
L=5/16
#17686 8 10
LMRD-12-MP #841436 1 2
Screw #4-40
L=3/8
#03336 12 24
* SWS and TLC are products and property of General Electric (GE).
(LMCP-GE12 assembly shown
as reference)
12345678
ON
12345678
ON
