3.2 Preset Recall Stations

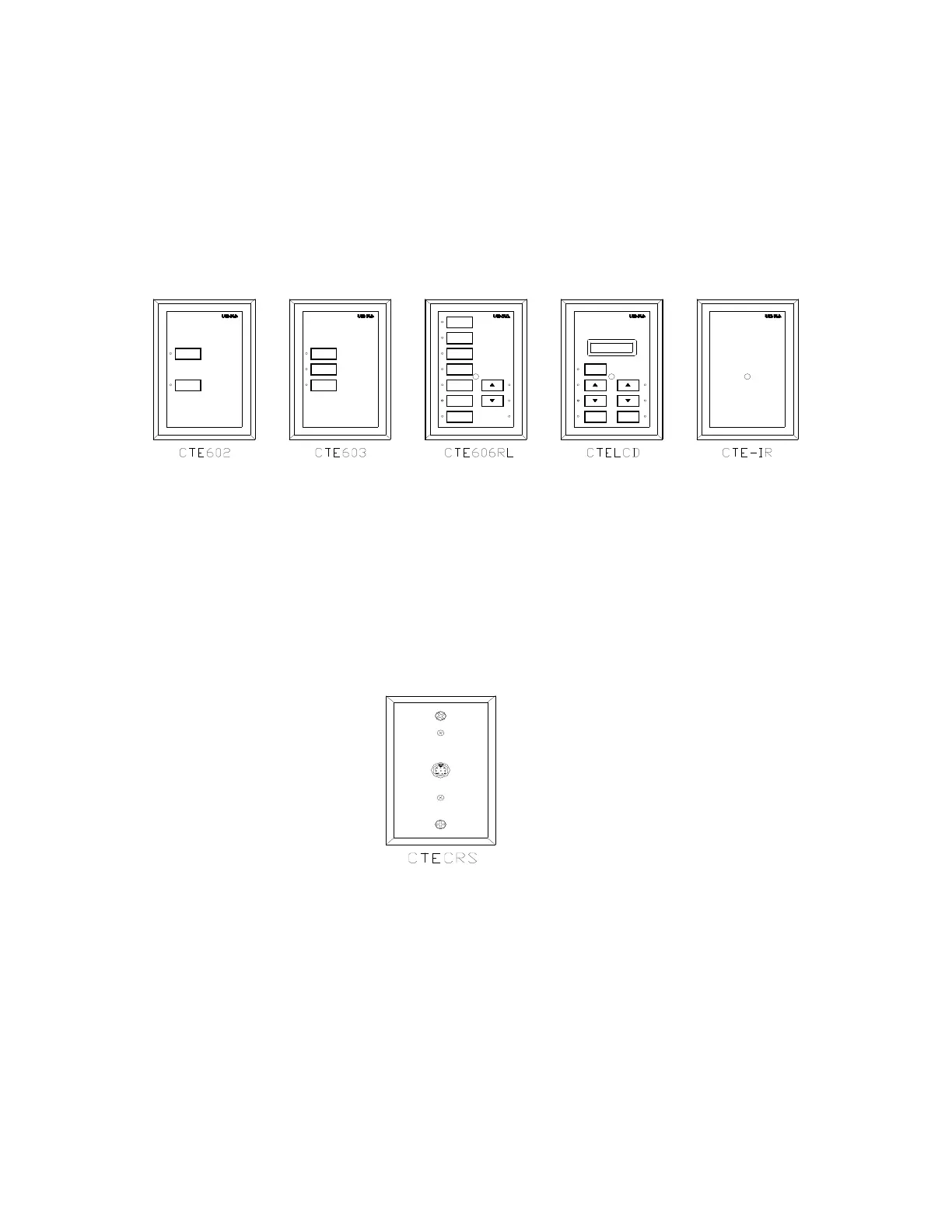

The stations illustrated in Figure 8 are referred to as recall stations. By default, the buttons are used to
recall presets. Each button on these stations may also be programmed to perform a variety of other
functions such as invoking a script, activating a chase, activating a lock group or operating a partition.
They may also be programmed to store and recall backup cues, dimmer source take control and
activating panics.
Figure 8:
Recall Stations
3.3 Receptacle Station
The receptacle station will accept any of the above station types for the purpose of having a portable
and removable control. This can be useful in applications where a desktop control is desired, or in a
venue with only recall stations on the wall, but having a portable master station for setting presets.
. Figure 9:
Receptacle Station
DX3 Manual 16
