Lehle Mono Volume User Manual

6
4. Output socket
 Connect your target device here.
For instance, this would be an amplifier, a mixer
panel, a stage box or a sound card. This output,
like the DIR Out has low impedance and does not
change its output impedance when the volume is
altered via the volume pedal.
5. External power supply
 Connect your external power supply here (9-15 V DC
or 7-12 V AC).
For the Lehle Mono Volume an external power
supply is required.
This should provide a minimum of 9 V and no
more than 15 V DC, but alternatively you can also
connect an AC voltage source with more than 7
V or up to 12 V. The polarity is not relevant. The
voltage supplied is internally rectified, filtered,
stabilised and then brought to 18 V.

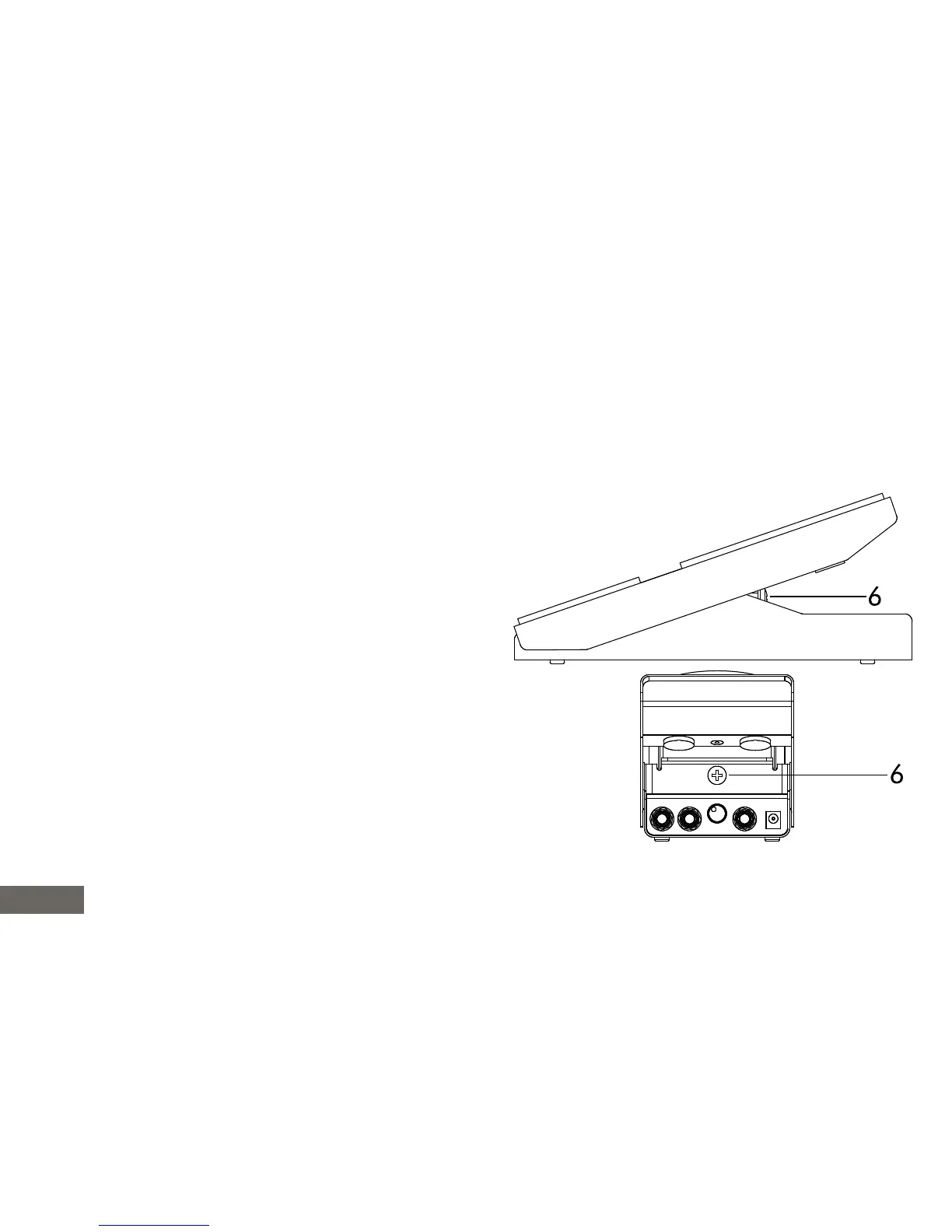

6. Pedal Feel
 Turn this screw to adjust the feel of the pedal.
If you turn this screw clockwise, you tighten the
brake. This way the pedal feel will be heavier.
Turning the screw counterclockwise, diminishes the
resistance when pressing and gives the pedal a
lighter feel.
