Example
In this example lenghts specifications are printed on a cable (for details
see <Meter-Go-function>). In addition the word Leibinger shall be printed
together with each third printout. See Picture 1 for details.

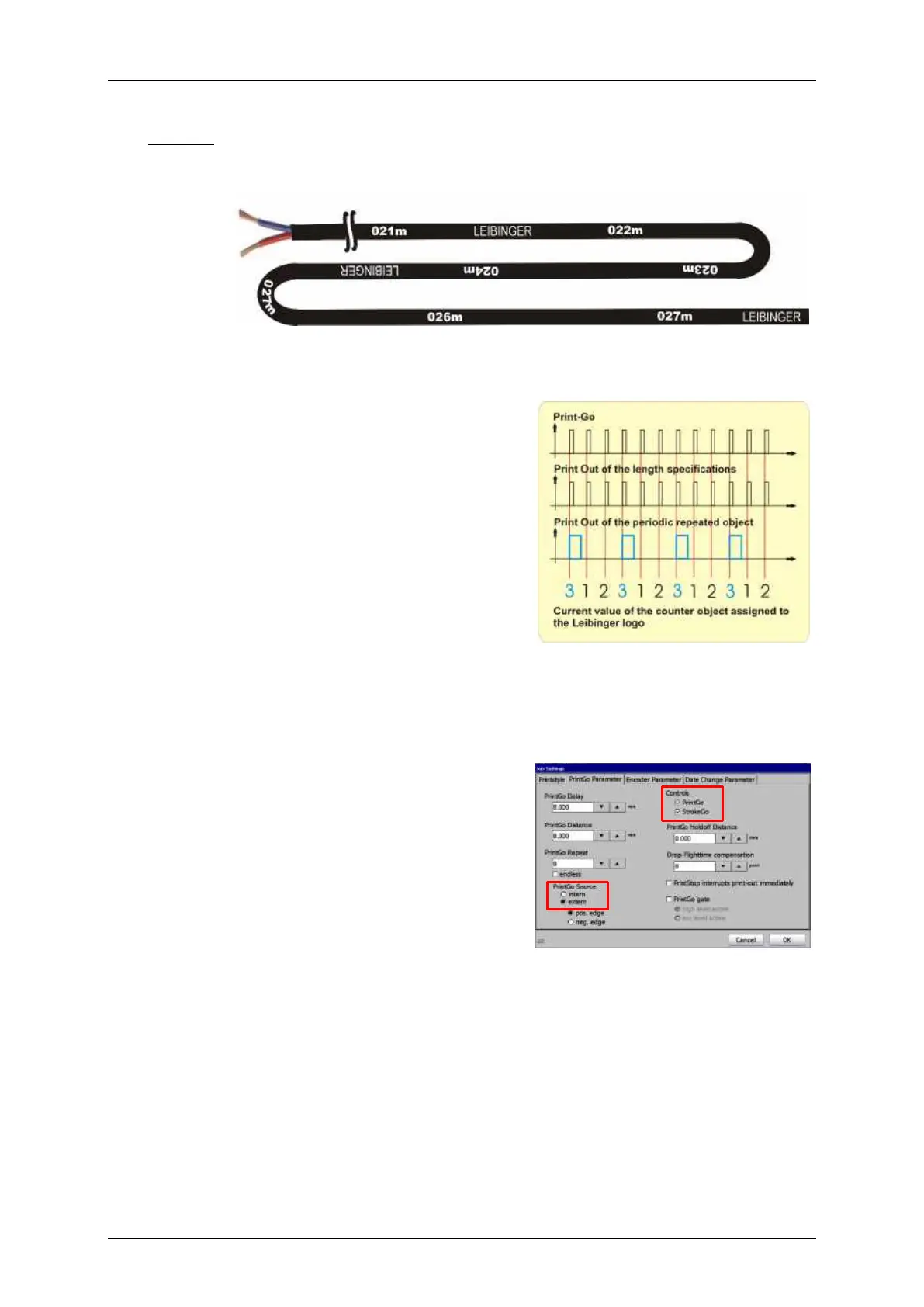

Picture 1 – Example cable print: the Leibinger logo together with each
third meter printout
The printout of the length specifi-
cations is controlled by the PrintGo
signals. The printout of the Leibinger
logo is controlled by the value of the
counter that is assigned to the
Leibinger text object.
Picture 2 shows the timing diagram.
For this print job are several settings
required.
Picture 2 – Timing diagram for the
periodically repeating
object
Settings for the PrintGo parameters
The PrintGo parameters are the same
for all objects printed. The PrintGo
signals (from the external measuring
system) and the StrokeGo signals
(from the external encoder) are used
to control the printout.
Relevant settings are marked in
Picture 3.
Picture 3 – PrintGo settings for all
printed objects
