68 / The displays
The displays

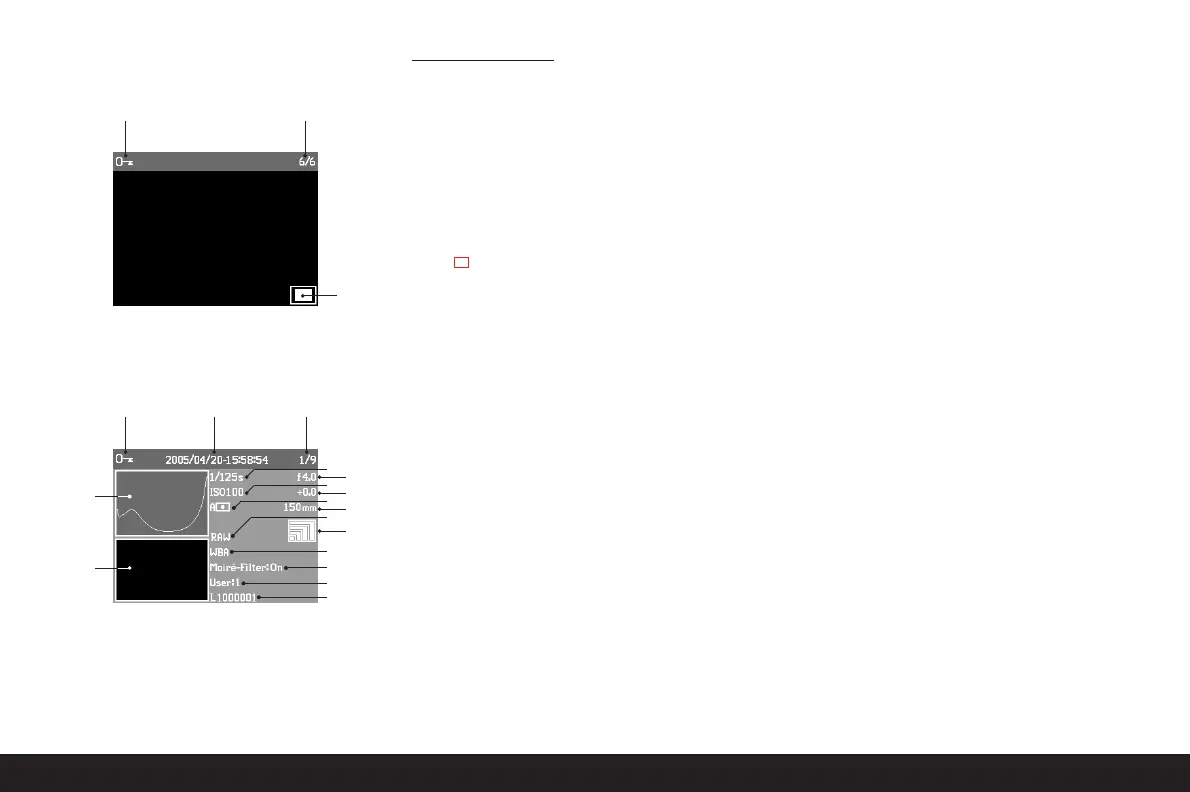

2.1 On the monitor
In normal review mode
2.1.1 Delete protection symbol
(only if set)
2.1.2 Picture number/total number of available
pictures
(not with enlarged view)
2.1.3 Enlargement level/position of trimmed area
shown
(schematic, for enlarged view only)
2.1.4 Selected picture
(only with reduced viewing of 4 or 9 pictures)
Review with supplementary information (
INFO
)
2.1.5 Picture
2.1.6 Histogram
a. Luminance (brightness)
b. Red/green/blue
(separate display of individual colors)
2.1.7 Delete protection symbol
(only if set)
2.1.8 Date/time
2.1.9 Picture number/total number of available
pictures
2.1.10 Picture information
a. Shutter speed
b. Aperture
1
c. Sensitivity
d. Exposure compensation
e. Exposure measuring method
f. Focal length
1, 2
g. Compression/file format
h. Resolution
i. White balance
j. Moiré filter setting
k. User profile
l. Folder number/file name
1
Most lenses equipped with ROM, including the EXTENDER-R2x
11 269 (see camera and lens instructions) provide the required
information. With lenses and extenders not equipped with ROM,
this information is not displayed.
2
On zoom lenses equipped with ROM, the information is graduat-
ed, on the Vario-Elmar-R 4/80–200 up to a maximum of 180mm.
In two cases (Apo-Vario-Elmarit-R 2.8/70–180 and Vario-Elmar-R
4.2/105–280), only the initial focal length is displayed.
2.1.1
2.1.7 2.1.8 2.1.9
2.1.5
2.1.6
2.1.2
2.1.3
b
a
d
f
h
2.1.10
c
e
i
j
k
l
g
