Leica E Series User Manual Eyepieces (Only for Leica EZ4) 39
Variant 2: 16× eyepieces
On the 16× adjustable eyepieces, the insert is
fixed to the eyepiece by a screwed connection.
1. Screw the insert out counterclockwise.

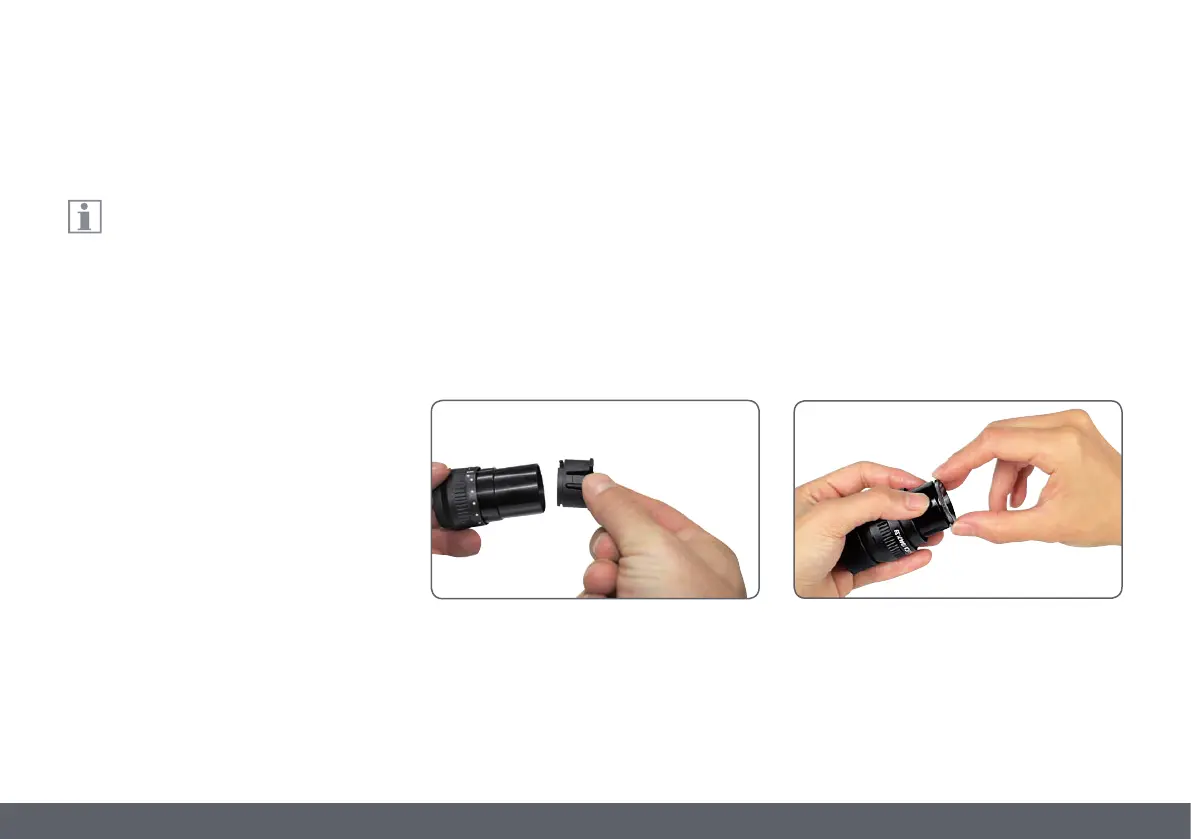

Variant 1: 10× and 20× eyepieces
The 10× and 20× adjustable eyepieces include
an insert at the bottom with a snap mount.
1. Gently press the two small tabs on the snap
mount together and pull out the insert.
Graticules: Preparation
Care instructions
The graticule must always be clean and
dust-free! Never touch the graticule with
bare hands! Always hold the graticule by the
edges!
