Leica LS15 - Page 47

1
7
6
8
5
4
3
2
PIN_001
Pin Signal
Name
Function Direction
1 USB_D+ USB data line In or out
2 USB_D- USB data line In or out
3 GND Signal ground -
4 RxD RS232, receive data In
5 TxD RS232, transmit data Out
6 ID Identication pin In or out
7 PWR Power input, nominal +12 V (11 V -
16 V)
In
8 NC Not connected -

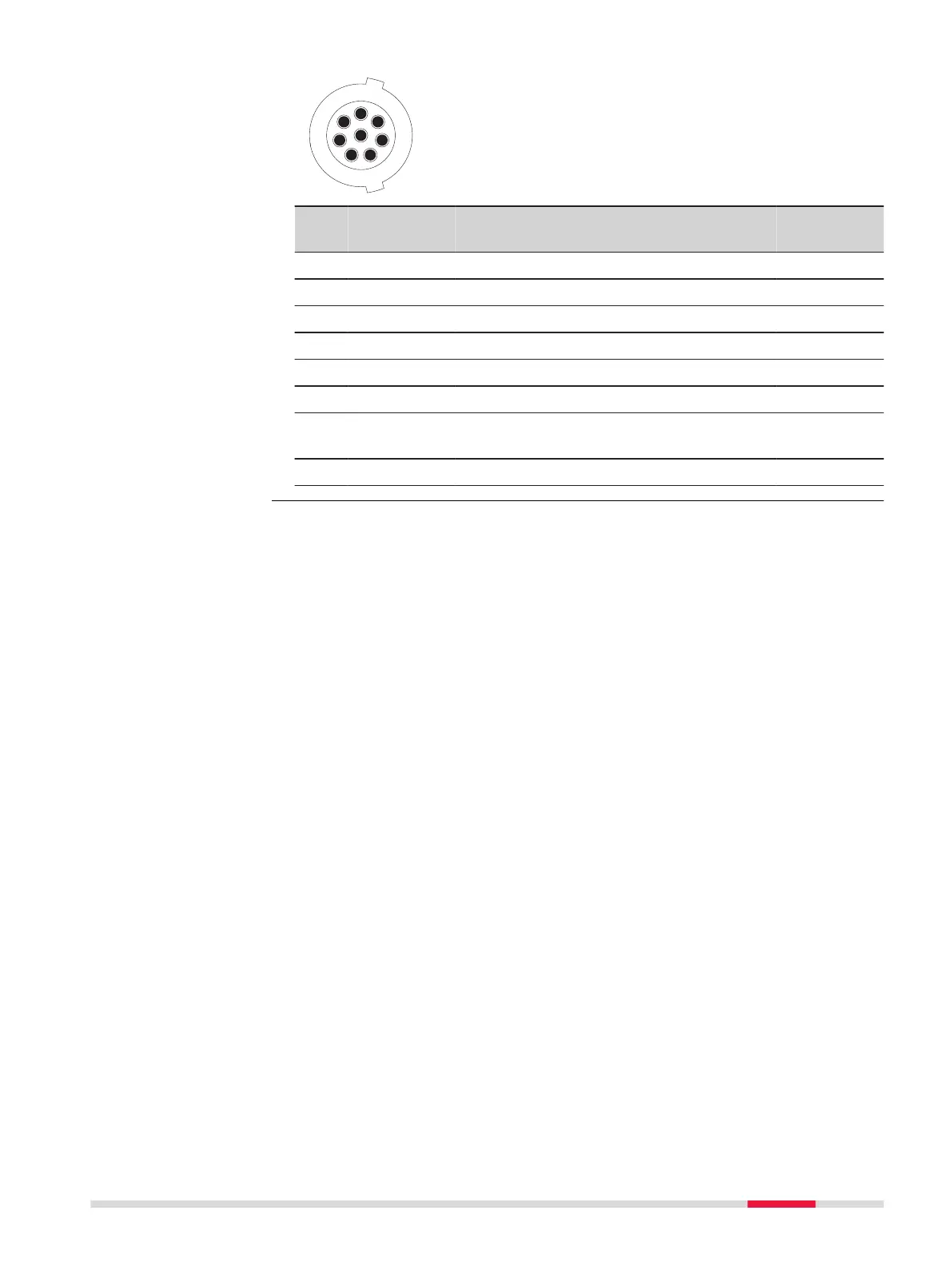

Pin assignments
(only LS15)
Settings 47
