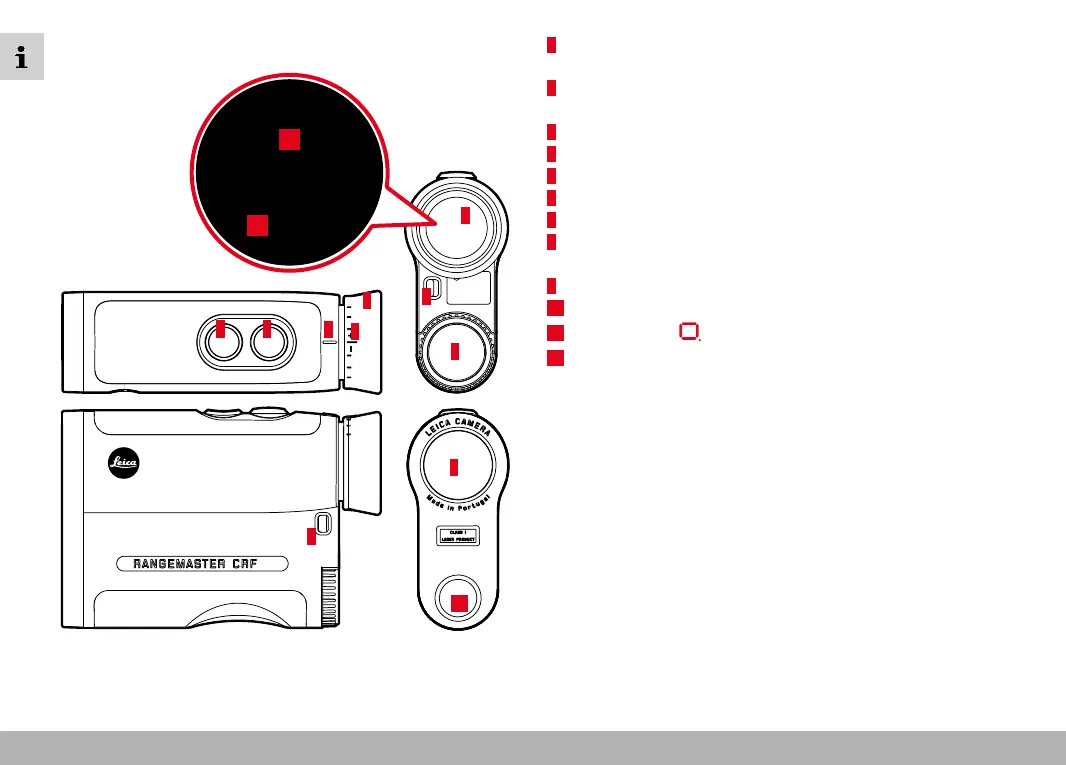

PART DESIGNATIONS
10
PART DESIGNATIONS
6
7
8
7
10
9
1 2
3
5
4
1 5
11
12
1
Menu Selection Button
eu.us (meter/yard display), ehr (equivalent horizontal range)
2
Main button
Switching the device ON/OFF
3
Index for diopter setting
4
Diopter scale
5
Eyecup
6
Eyepiece
7
Strap lugs
8
Battery compartment
3 V lithium cell (type CR2)
9
Lens
10
Laser transmission lens
11
Target mark
12
Display 0 0 (value)
