RTJ400 User Guide
Box Joint Procedures - 3/16"
Chapter 12

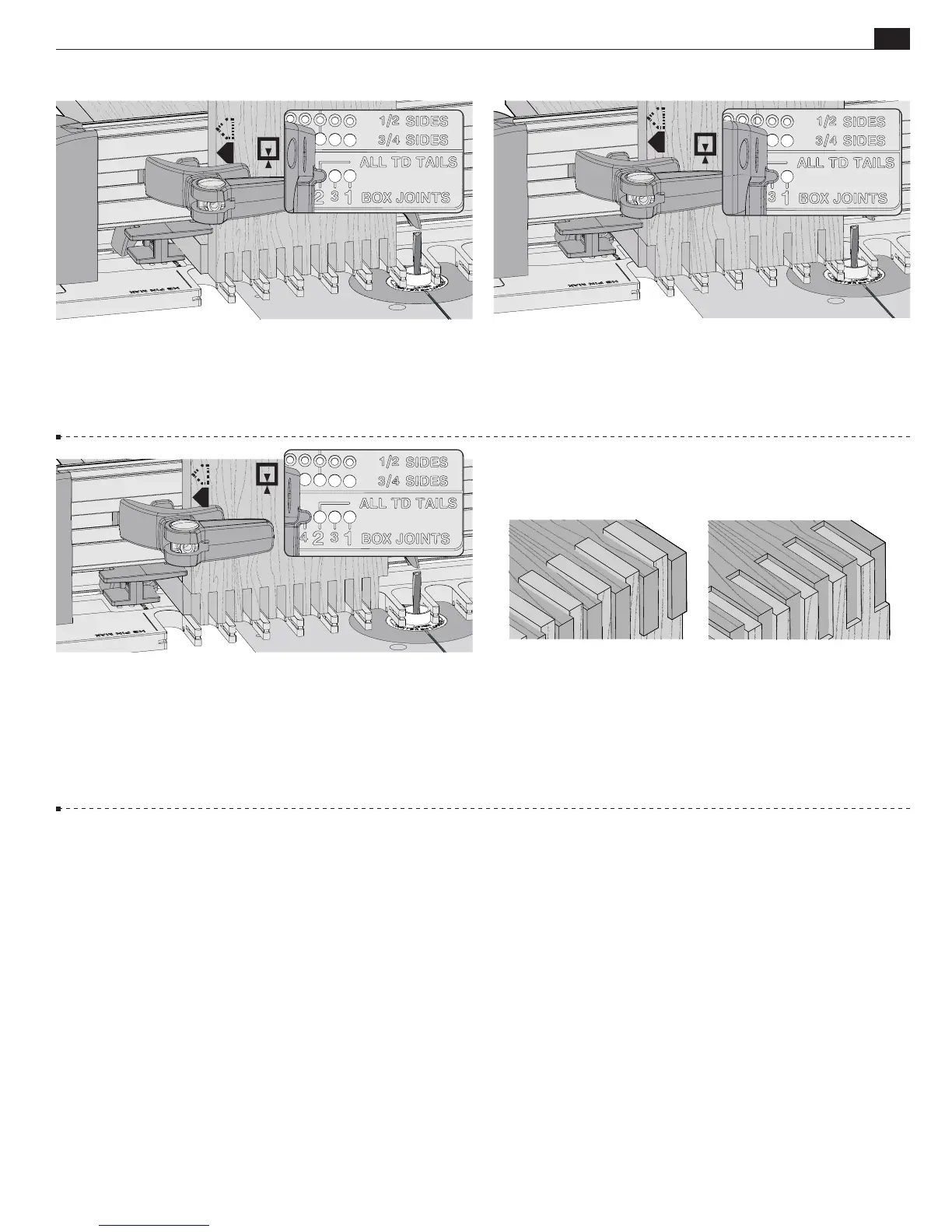

12-20 Unlatch and move the right frame pin to the
No.2 BOX
JOINTS
hole, latch the frame. Rout into every opening. Unclamp
and flip the board, keeping the same side against the sidestop.
Clamp it and repeat the steps in reverse order. Remove pin
board 1 and repeat steps 12-19 and 12-20 for pin board 2.
12-21 Remove pin board 2. Unlatch and move the frame pin
to the
No.3 BOX JOINTS
hole and latch the frame. Clamp a socket
board against the sidestop and rout into all template openings.
12-22 Unlatch and move the frame pin to the
No.4 BOX JOINTS
hole and latch the frame. Again, rout into all openings. Unclamp
and flip the board, keeping the same edge against the sidestop.
Clamp it and repeat the routing in reverse order. Remove socket
board 1 and repeat steps 12-21 and 12-22 for socket board 2.
Remove socket board 2. All four boards are now complete and
ready for assembly.
12-23
Flushness If the joint is
over flush
, lower the bit to
suit. If the joint is
under flush
, raise the bit to suit.
■
OVER FLUSH UNDER FLUSH
