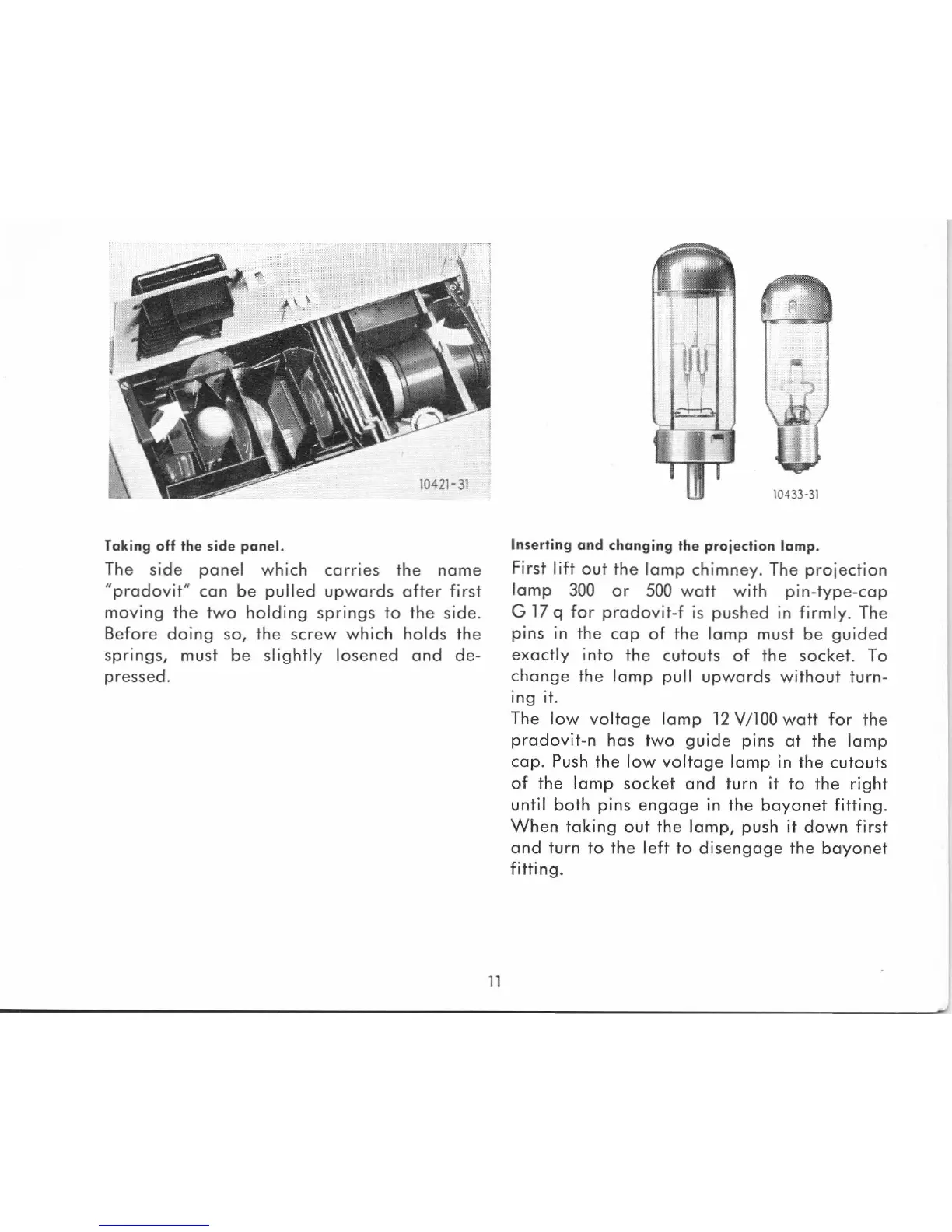

Taking off the side panel.
The side panel which carries the name
"prodovit" can be pulled upwards after first
maving the twa holding springs ta the side.
Before doing so, the screw which holds the
springs, must be slightly losened and de-
pressed.
.,
..
~.
10433·31
Inserting and changing the projection lamp.
First lift out the lamp chimney. The prajection
lomp 300 or 500 watt with pin-type-cap
G 17 q far pradovit-f is pushed in firmly. The
pins in the cap of the lamp must be guided
exactly into the cutouts of the socket. To
change the lamp pull upwords without turn-
ing it.
The low voltage lamp 12 V/100 watt for the
pradovit-n has twa guide pins at the lamp
cap. Push the low voltage lamp in the cutouts
af the lamp socket and turn it to the right
until both pins engage in the bayonet fitting.
When taking out the lamp, push it down first
and turn to the left to disengage the bayonet
fitting.
