5.1004.8641.0 B
Maintenance 5-17

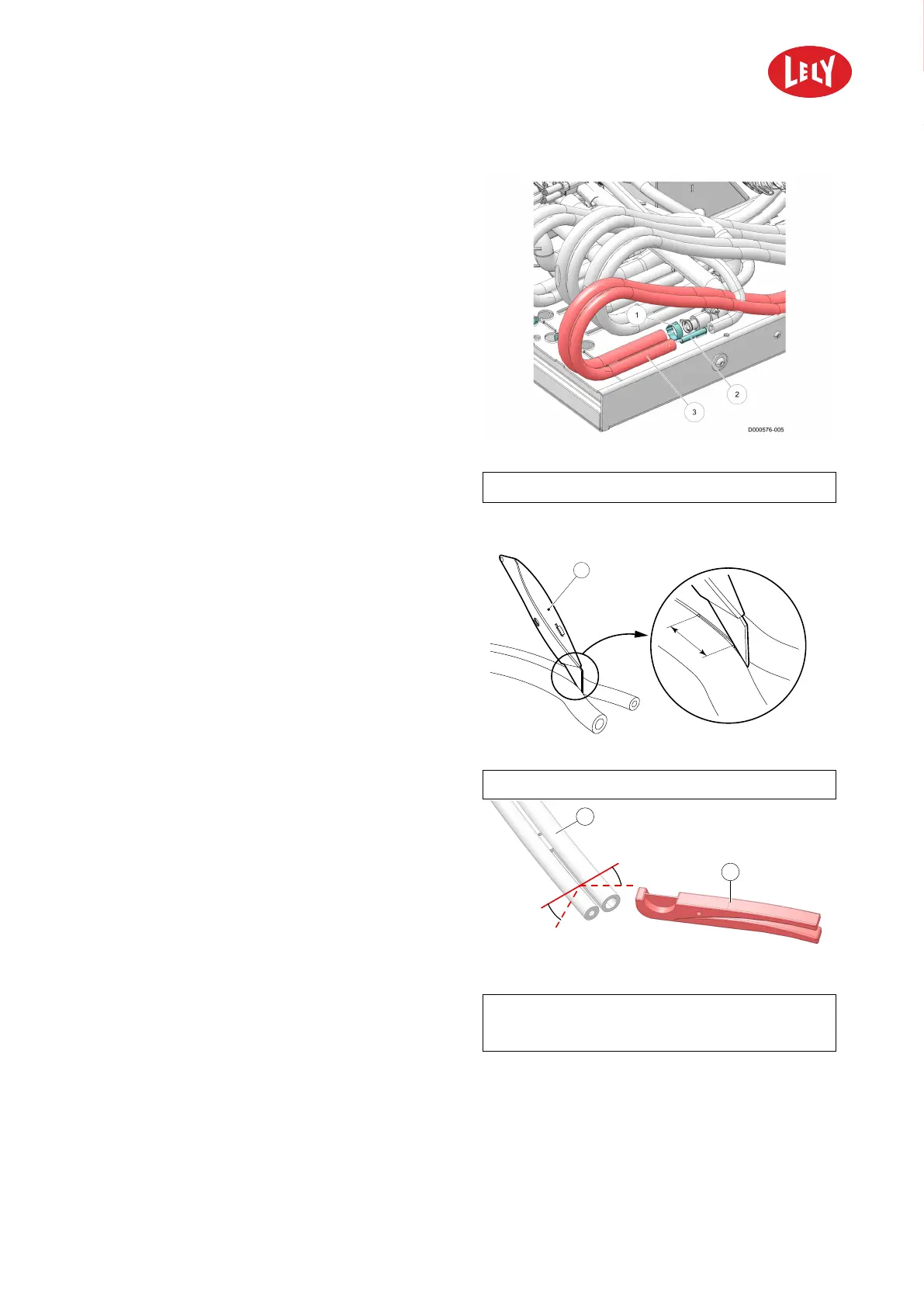

Figure 33. Connection pieces
KEY: 1. Clamp - 2. Connection piece - 3. Twin tube
5. Use the clamp pliers to release the clamps (1) on
the connection pieces to the preformed milk
tubes (see figure 33 on page 5-17).
6. Disconnect the twin tube from the connection
piece (2) to the 4effect pulsator tubes.
7. Remove the twin tube from the area.
Install the Twin Tubes
Figure 34. Make an incision in the twin tube
KEY: 1. Knife
1. Make an incision (see figure 34 on page 5-17) in
the twin tube from:
1. The right end to the first hole.
2. The left end to the first hole.
Figure 35. Cut off the tubes
KEY:
1. Tube cutter - 2. Twin tube
α = 30°
2. Cut off the tubes (2) under an angle of 30º (see
figure 35 on page 5-17).
Make sure the inside of the twin tubes are clean
and dry.
