DIAGNOSIS menue
E-LINK D 6060 • D 4060 29

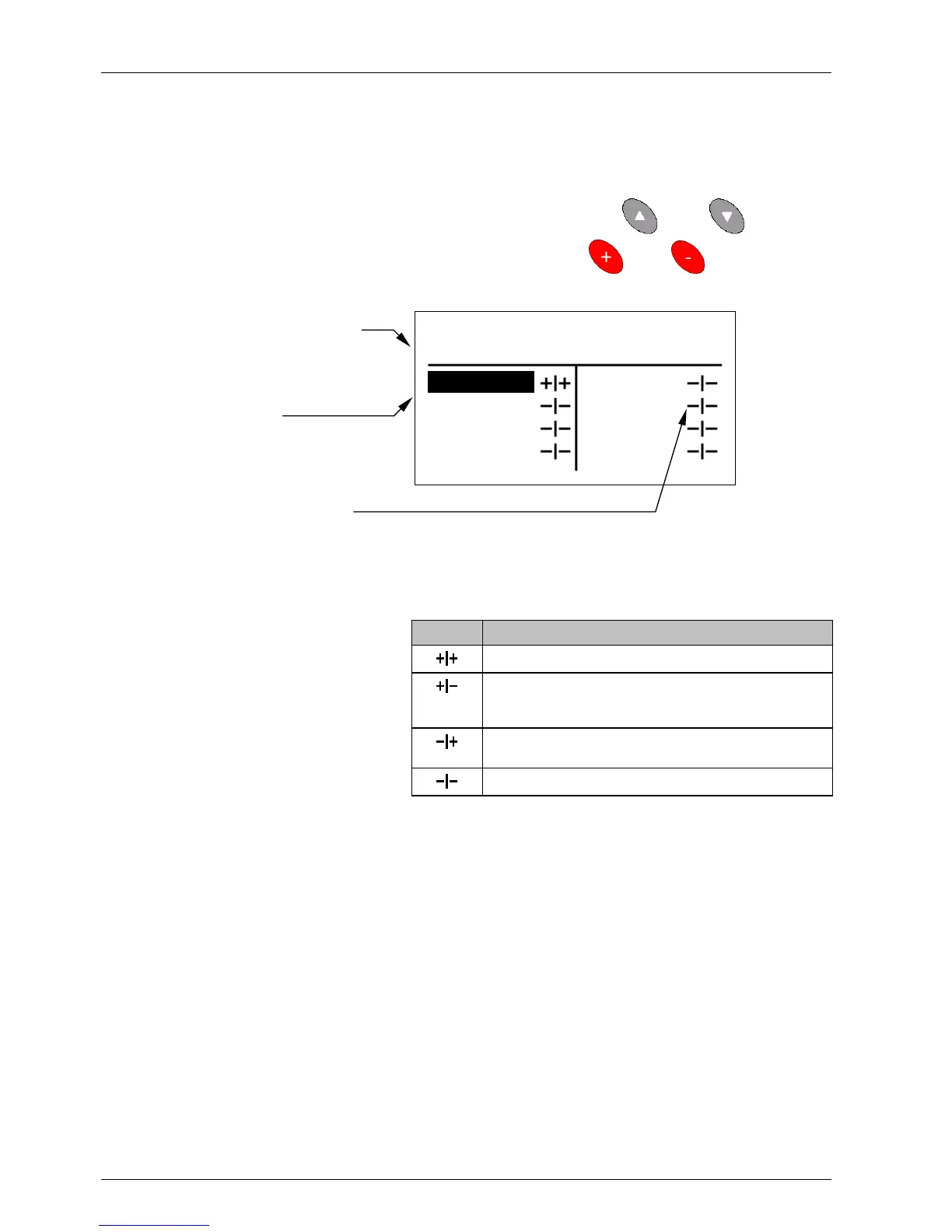

Standard diagnosis – Actors
In the "Actors" diagnosis, the status of the actor channels is
displayed. The functions can be tested manually (Diagnosis
Manual) or automatically (Diagnosis Automatic):
 Select actor channel: keys < > and < >
 Actor On or Off: keys < > and < >.
The following symbols are used for the actor status:
Symbol Actor status
Actor has been triggered (+) and has switched (+).
Actor should be triggered (+), but has not switched (–).
Attention, fault! E. g. actor channel in control unit
defective.
Actor not triggered (–), but has switched (+). Attention,
fault! E. g. short circuit to chassis or broken wire.
Actor has not been triggered (–) and has not switched (–).
Valve diagnostic
Valve diagnostic Valve diagnostic
Valve diagnostic 1/2
1/2 1/2
1/2
Manual
M
anualManual
M
anual
Val. B
Val. BVal. B
Val. B
Val. C
Val. CVal. C
Val. C
Val. 45
V
al. 45Val. 45
V
al. 45
Fan
FanFan
Fan
Tying
TyingTying
Tying
Val. 67
Val. 67Val. 67
Val. 67
Val. 89
V
al. 89Val. 89
V
al. 89
PU STOP
P
U STOPPU STOP
P
U STOP
Selected acto
r
channel
Here: manual diagnosis
Because of special
properties, the actor channel
"Tying" is automatically
switched off after an on-time
of 0.5 sec..
