EN-8
1 INTRODUCTION

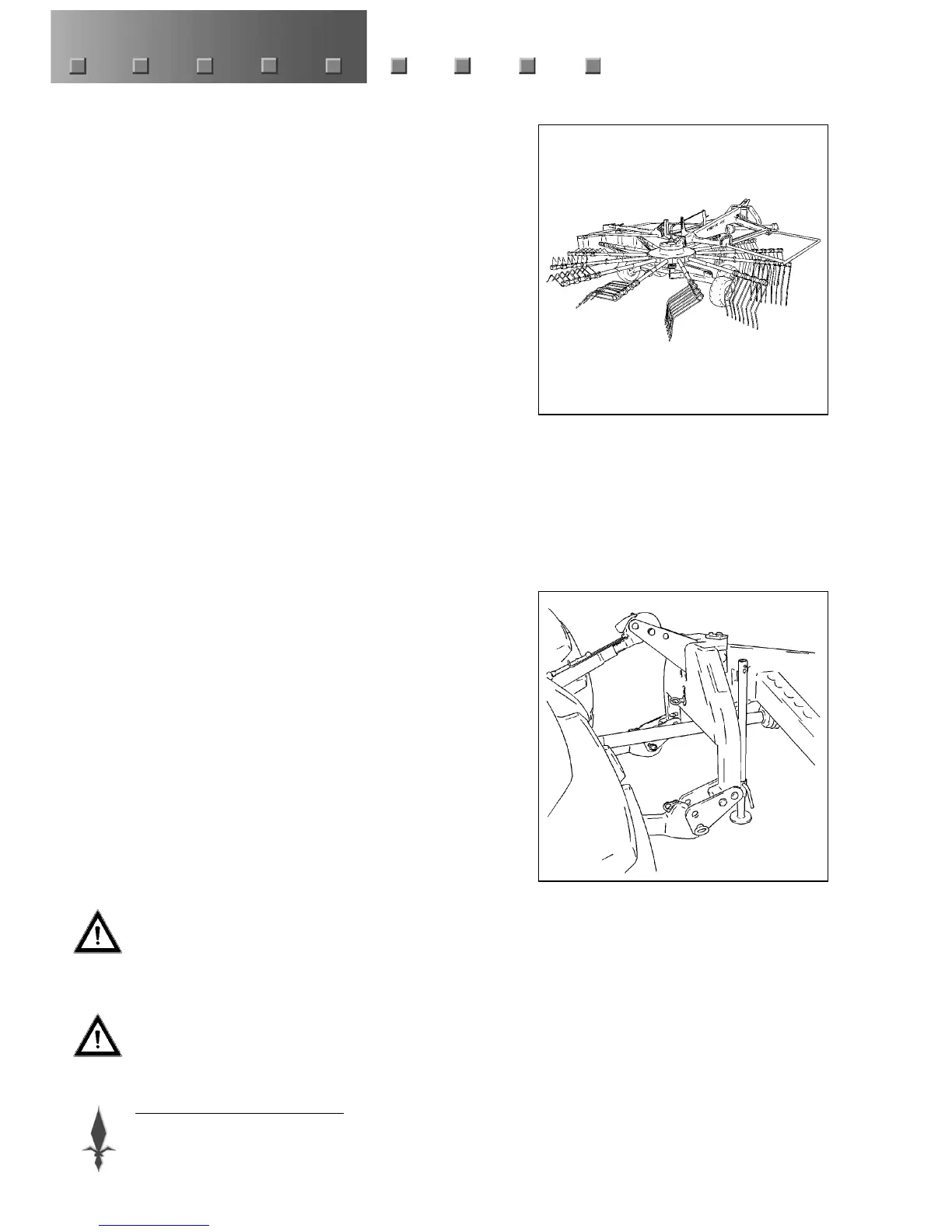

The LELY HIBISCUS 425, 455 and 485 (fig. 1) are hitch carried,
single rotor rakes for side delivery. The machine has 1 rotor with
either 11 or 13 tine arms, each equipped with 4 double tines.
The tines give a clean sweep and move the grass to left hand side in
an airy windrow.
As standard the HIBISCUS rake comes with a pivoting 3 point
linkage headstock giving the machine trailing characteristics. This
allows for the machine to continue raking operations even when
turns are made.
The tandem axle wheel assembly ensures an excellent raking
operation of this rake also when working in undulating fields.
2 LINKAGE TO THE TRACTOR
- Adjust the tractor’s three point hitch lower arms at equal height.
- Fit the lower arms to the linkage pins (cat. II) of the machine’s
headstock.
- Fit the tractor top link to the machine by means of a category II
top link pin.
- Place the parking jack in the raised position (fig. 2).
- Secure the tractor’s lower arms by means of stabilisation chains
or rods eliminating any sideways movements.
- Check if the PTO shaft telescopes smoothly.
- Fit the PTO shaft to the tractor PTO.
At first assembly or use of another tractor: check the minimum
and maximum overlap of the PTO shaft halves
*
.
- Fit the safety chain of the protection tube to a rigid part of the
tractor.
If the machine is fitted with a lighting kit (option):
- Put the plug of the lighting cable in the tracor socket and
check the lighting for correct operation.
*. Consult the instruction supplied with the PTO shaft
1
