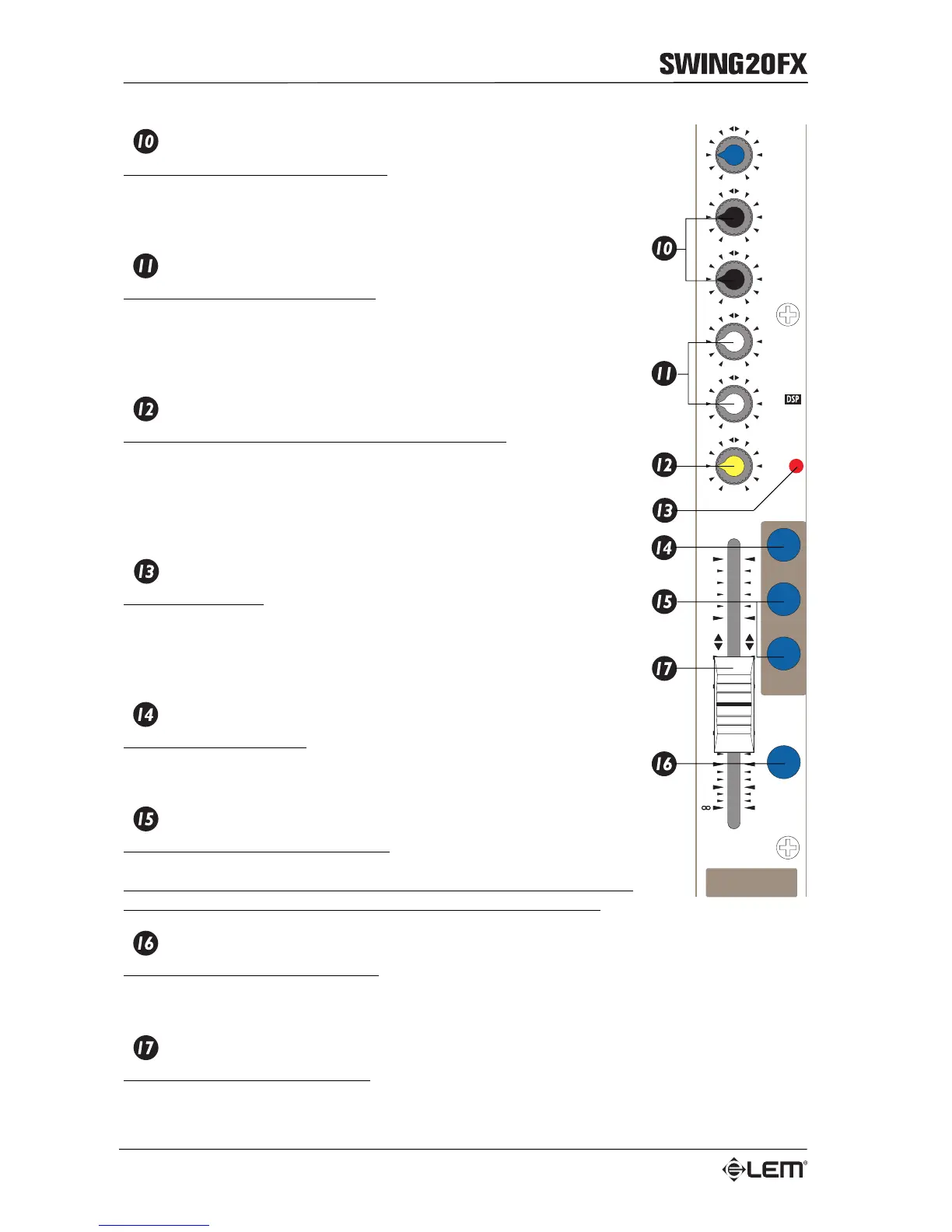

MONO input channel
MONITOR 1&2
Control for the MONITOR sends level.
The MONITOR sends are PRE-FADER: this means than the signal sent to the
MONITORS is taken before the control of the channel FADER, allowing a
completely independent mix for the monitoring respect to the main mix.
EFX 1 & EFX2/DSP
Control for the EFFECT sends level.
The EFX 1 and EFX2/DSP sends are POST-FADER: this means than the
signal sent to the AUX output is taken after the control of the channel FADER.
The EFX 1 send the signal to the AUX 1 output. The EFX2/DSP send the signal
both to the AUX 2 output and to the built-in DSP.
PAN
Centre-dented pot for controlling the signal’s pan: regulates stereo
“position” of the signal with respect to the GROUPS and to the main MIX L&R
outputs. If PAN is turned completely to the LEFT, the signal will only be sent
to the ODD GROUPS, if it’s turned completely to the RIGHT, the signal will
only be sent to EVEN GROUPS. At intermediate settings, the signal is sent to
both directions, but in different proportions.
PEAK
PEAK LED indicator: lights up when the input signal is near to the CLIPPING
point. This control is POST-GAIN, POST-INSERT and POST-EQ and,
therefore, reacts to the signal already processed by the internal EQ and by
external units. Set the GAIN control in such a way that the PEAK LED do not
light up or only do so occasionally.
MUTE
Button for MUTE function.
When pressed, this switch mutes the channel to the GROUPS and L&R MIX
outputs.
GROUP 1-2&3-4
Routing buttons towards the GROUPS: by pressing these buttons the signal
of the channel can be sent to the GROUPS 1-2 and 3-4.
IMPORTANT: to be sent to the MIX L&R the channel signal have to be
always assigned at least to one GROUP (see also MASTER section).
PFL
Button for PRE-LISTENING function.
Allows the channel signal to be selected for the listening thru the HEADPHONES outputs and the
visualization on the LED BARGRAPHS. The listening and the visualization are PRE-FADER.
FADER
Fader for controlling channel level: regulates the level of each channel sent to the groups, the MIX
L&R and the MIX B outputs.
PAN
PEAK
MUTE
1 - 2
3 - 4
PFL
PRE-FADER
PRE-FADER
MONITOR 1
MONITOR 2
POST-FADER
EFX 1
POST-FADER
EFX 2
