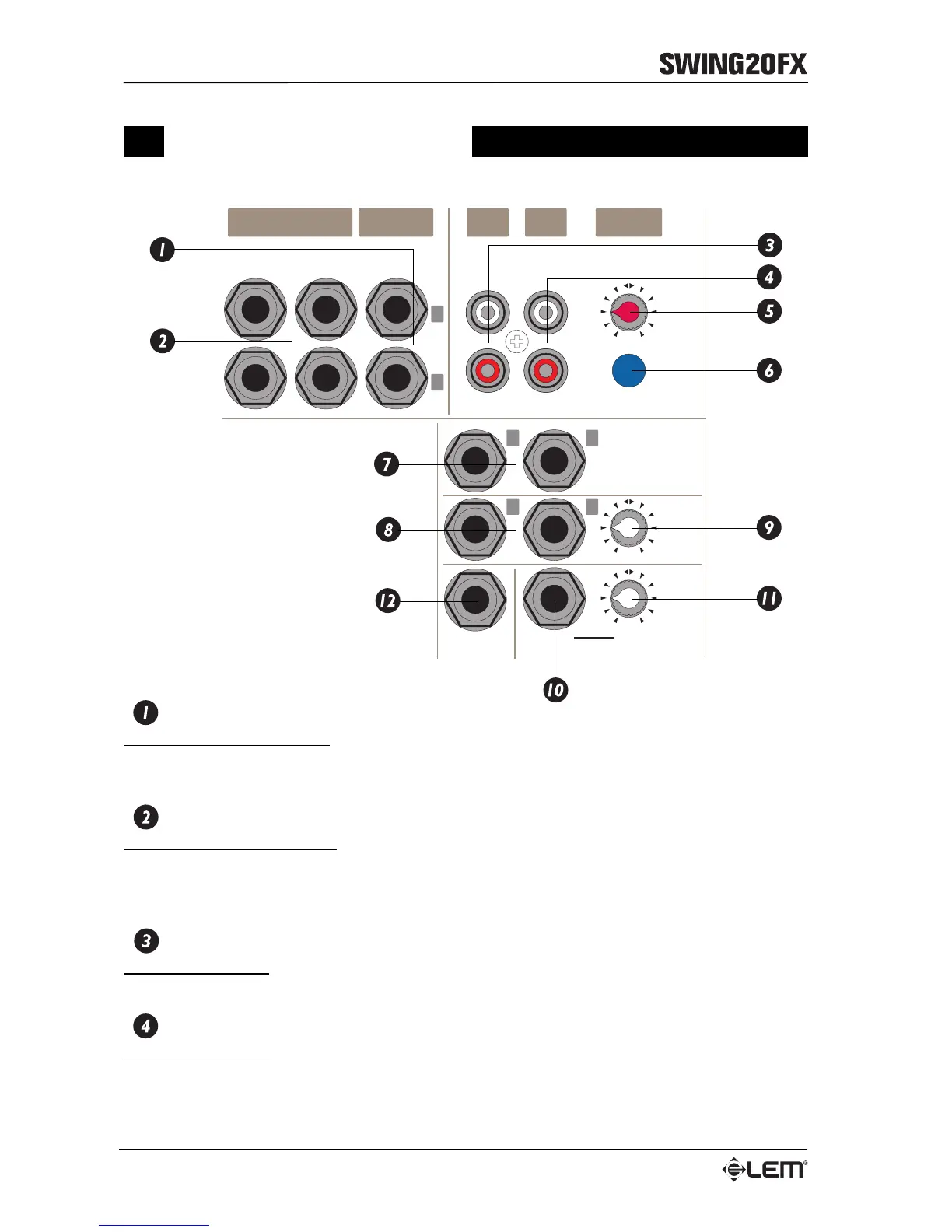

MASTER section
MASTER section
1
1
L
2
2
R
PHONESDSP
FOOTSWITCH
MIX B
TAPE IN
TO MIX
MONITOR
OUTPUTS
LEVEL
100
100
100
LEFT
LEFT (MONO) RIGHT
RIGHT
AUX SENDS
TAPE
IN
TAPE IN
LEVEL
TAPE
OUT
AUX RETURNS
AUX SENDS 1&2
Unbalanced JACK connectors: these connectors feed out the sum of the signals arriving from the relative
EFX sends of the input channels. The AUX sends are POST-FADER and are therefore mainly intended
for use with OUTBOARD EFFECTS.
AUX RETURNS 1&2
Unbalanced JACK connectors: these are the connectors of the auxiliary stereo inputs. These inputs,
whose signal is sent directly to MIX L&R, can be used for the return signal from outboard effects or for
connecting any instrument or equipment with a line output (e.g. keyboards, cassette recorder or CD
turntable).
TAPE IN L&R
Two RCA connectors: receive external signals from STEREO tape recorders, CD player, DAT, etc. These
inputs can be connected to the outputs of your equipment.
TAPE OUT L&R
Two RCA connectors: send out the signal taken from MIX and normally intended for STEREO recording.
These outputs can be connected to the inputs of a recorder.
