7

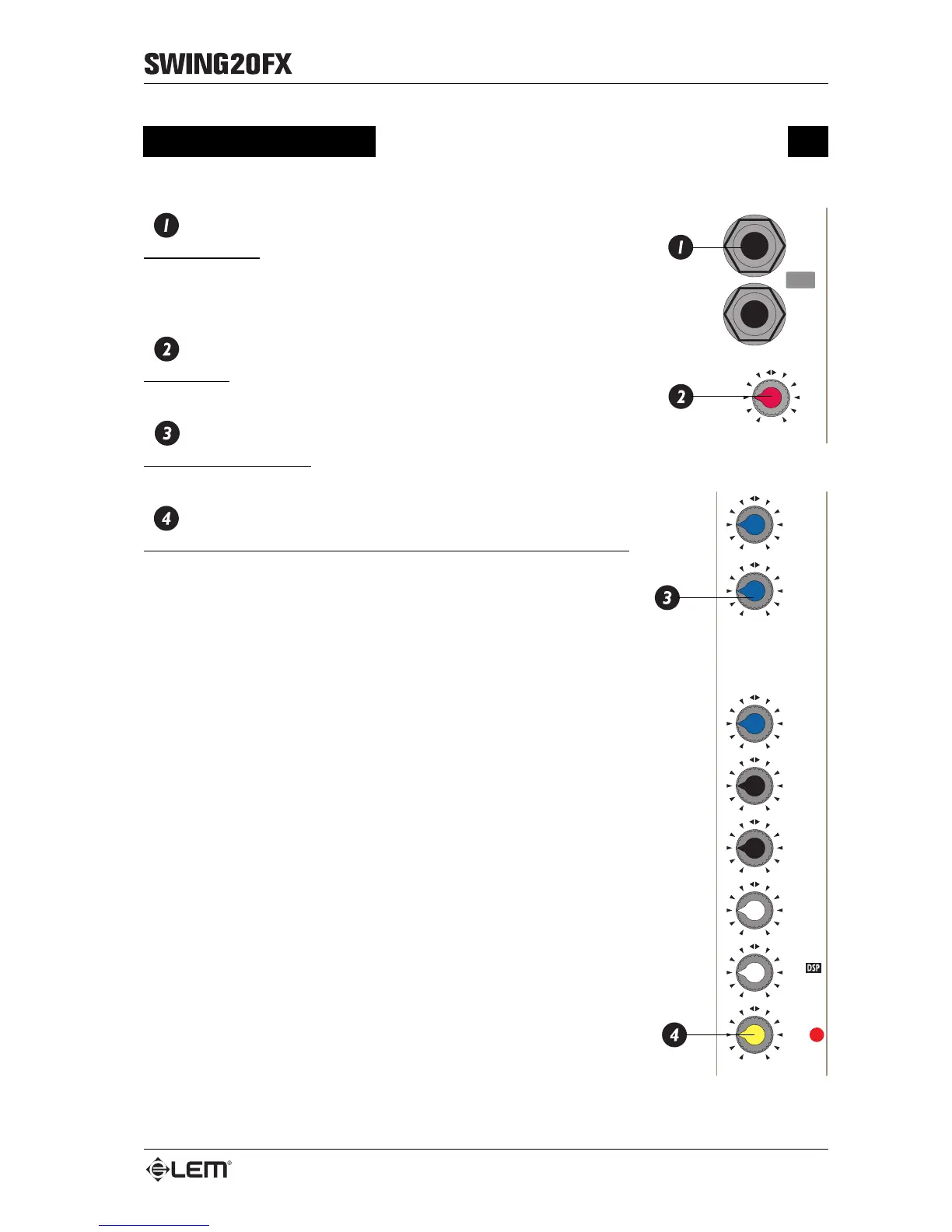

STEREO input channel
STEREO input channel
STEREO INPUT
JACK connector: receives the STEREO LINE input signal on the channel
(0dB).
Inserting a single JACK connector on the LEFT socket this channel can be
used as a MONO channel.
GAIN
Gain control: regulates the amplification of the signal connected to the L&R
inputs. The range is -20/-20 dB.
MID
MID frequency control: gives 12dB boost or cut at 2.5 kHz with a
“PEAKING” curve.
BAL
Centre-dented control of the balance of the signal on the main outputs.
The BAL control has a balancing effect on the levels of the two LEFT &
RIGHT parts of the STEREO signal and works as follows:
• turning to the LEFT lowers the RIGHT signal level on MIX RIGHT;
• turning to the RIGHT lowers the LEFT signal on MIX LEFT.
NOTE: the remaining features of the STEREO channel are the same as in
the MONO channel.
BAL
PEAK
PRE-FADER
PRE-FADER
MONITOR 1
MONITOR 2
POST-FADER
EFX 1
POST-FADER
EFX 2
GAIN
10
10
0
0
100
100
RL
+20dB
LINE
-20dB
0dB
2.5 kHz
MID
80 Hz
LOW
12 kHz
HIGH
+12-12
+15-15
+15-15
RIGHT
LEFT
(MONO)
17/18
