12
DSP
EFX 2
TO MIX
EFX 2
TO MON 2
EFX 2
TO MON 1
OFF
ON
100
100
100
MUTE
VOC2
VOC1
PERC
PLATE
S/ROOM
DEL2
DEL1
VOC3
CHURCH
DEL5
DEL4
DEL3
M/HALL
L/HALL
L/ROOM
DSP

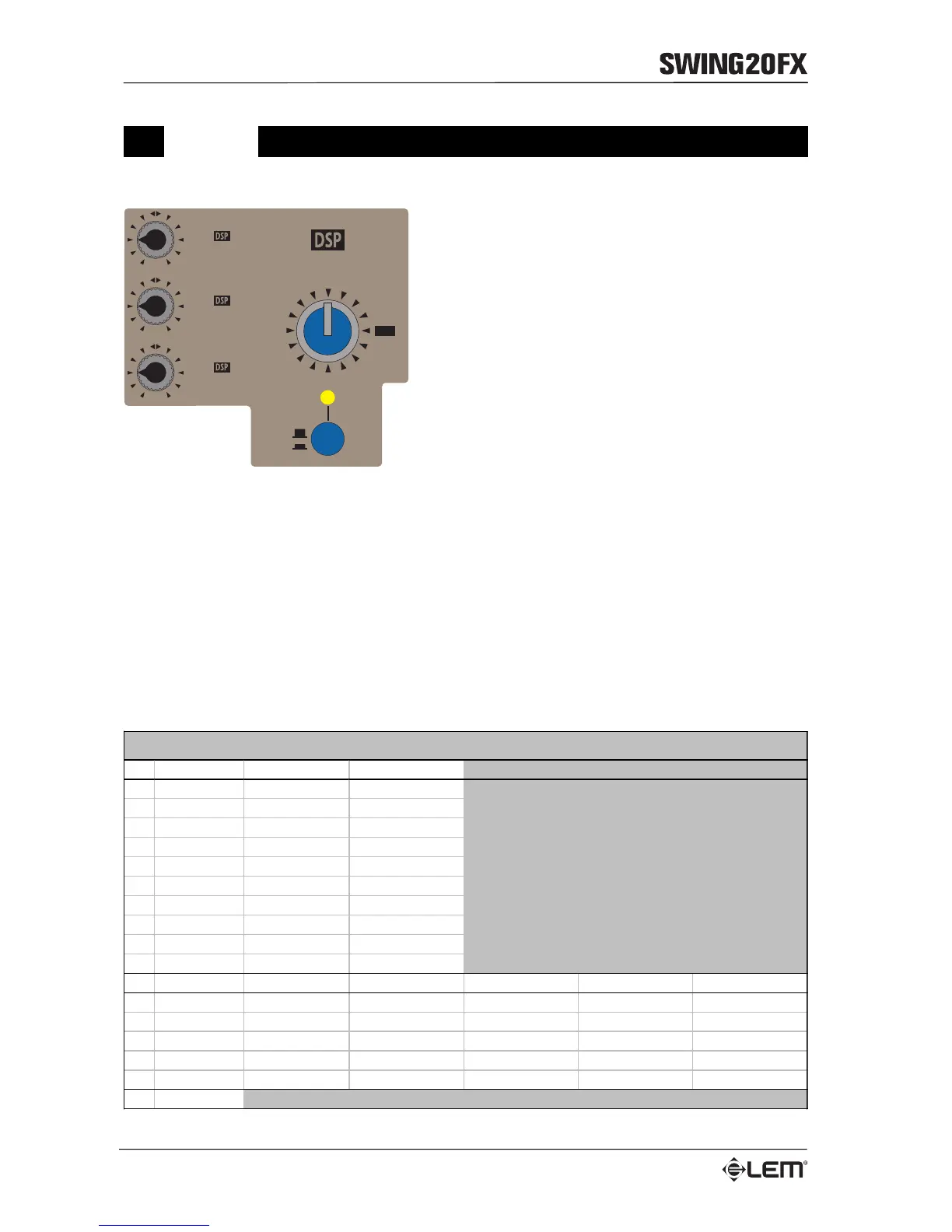

The SWING 20FX is fitted with a built-in DSP, including
15 high-quality REVERB and STEREO DELAY
effects able to reproduce accurately different kinds of
ambients and to enrich not only the voice, but also any
kind of instrument.
The 15 PRESETS can be selected by means of a
convenient 16-position encoder. In the last position
there’s a MUTE PRESET that can be used to cut out
the effect on all the channels. The DSP can be muted
also pressing the ON/OFF button on the control panel
or using a FOOTSWITCH connected to the JACK
socket on the connector panel
The signal is sent to the effect through the channel
EFX2 / DSP send. The effect level sent to the MIX
outputs is controlled by the EFX2 / DSP TO MIX knob.
The signal coming from the DSP can also be sent to
the MONITORS by means of the EFX2 / DSP TO MON 1 and EFX2 / DSP TO MON 2 knobs.
NOTE: if you need to use an external effect connected to the AUX 2 OUTPUT and to the AUX 2 RETURN INPUTS, the
internal DSP can be switched off selecting the MUTE PRESET. The internal DSP and the external effect can be also used
together, but this is not an advisable condition.
The following table include the list and the main parameters of the 15 PRESETS available in the internal
DSP.
No. PRESET Effect REV TIME (s)
1 CATHEDRAL HALL REVERB 5.0
2 LARGE HALL HALL REVERB 3.0
3 MID HALL HALL REVERB 1.7
4LARGE ROOMROOM REVERB 1.5
5 SMALL ROOM ROOM REVERB 0.8
6PLATE PLATE REVERB 1.5
7PERCUSSIONPLATE REVERB 1.2
8VOCAL 1 PLATE REVERB 3.0
9VOCAL 2 PLATE REVERB 1.5
10 VOCAL 3 PLATE REVERB 0.9
No. PRESET Effect LEFT DELAY (ms) RIGHT DELAY (ms) LEFT FB (%) RIGHT FB (%)
11 DELAY 1 STEREO DELAY 100 200 40 20
12 DELAY 2 STEREO DELAY 200 400 30 15
13 DELAY 3 STEREO DELAY 300 600 30 15
14 DELAY 4 STEREO DELAY 200 210 30 30
15 DELAY 5 STEREO DELAY 300 310 20 20
16 MUTE
PRESET LIST
