9
TAPE IN LEVEL
Pot for controlling the level of the TAPE input.
TAPE IN TO MIX
Button for the assignment of the TAPE IN signal to the MIX L&R.
Allow the TAPE IN signal to be sent to the MIX L&R.
MONITOR OUTPUTS 1&2
Unbalanced JACK connectors: these connectors feed out the sum of the signals arriving from the relative
MONITOR sends 1&2 of the input channels. The MONITOR sends are PRE-FADER and are therefore
mainly intended for the on-stage monitoring.
MIX B OUTPUT
Two unbalanced JACK connectors: this is an additional master output which sends out the same signal
of the MIX L&R.
MIX B LEVEL
Pot for control of the MIX B volume: this control is POST-MASTER, i.e.
the level of the signal depends on the position of the MIX L&R fader.
PHONES OUT
STEREO JACK headphone output connector: only stereo headphones with
a minimum impedance of 200 Ohms should be connected to this output.
PHONES LEVEL
Pot for controlling the level of the HEADPHONES outputs.
Normally the MIX L&R signal is heard from this output. When one or more
PFL buttons on the input channels are pressed, the signal of the selected
channels can be heard from the headphones output.
DSP FOOTSWITCH
JACK connector for the DSP FOOTSWITCH: allow a FOOTSWITCH to
be used for MUTING of the built-in DSP.
EFX TO MIX 1&2
Pot for controlling the level of the auxiliary stereo inputs: these pots
control the level of the AUX RETURNS to the MIX L&R. The EFX2 /DSP
pot controls both the AUX 2 input level and the return of the DSP to the
main outputs (see DSP).
EFX2/DSP TO MON 1&2
Pot for controlling the level of the EFX2 stereo input and the built-in
DSP to the MONITOR SEND 1&2: using these controls is possible to send
the signal of the effect connected to the EFX2 input and/or the signal of the built-in DSP to the MONITOR
outputs.

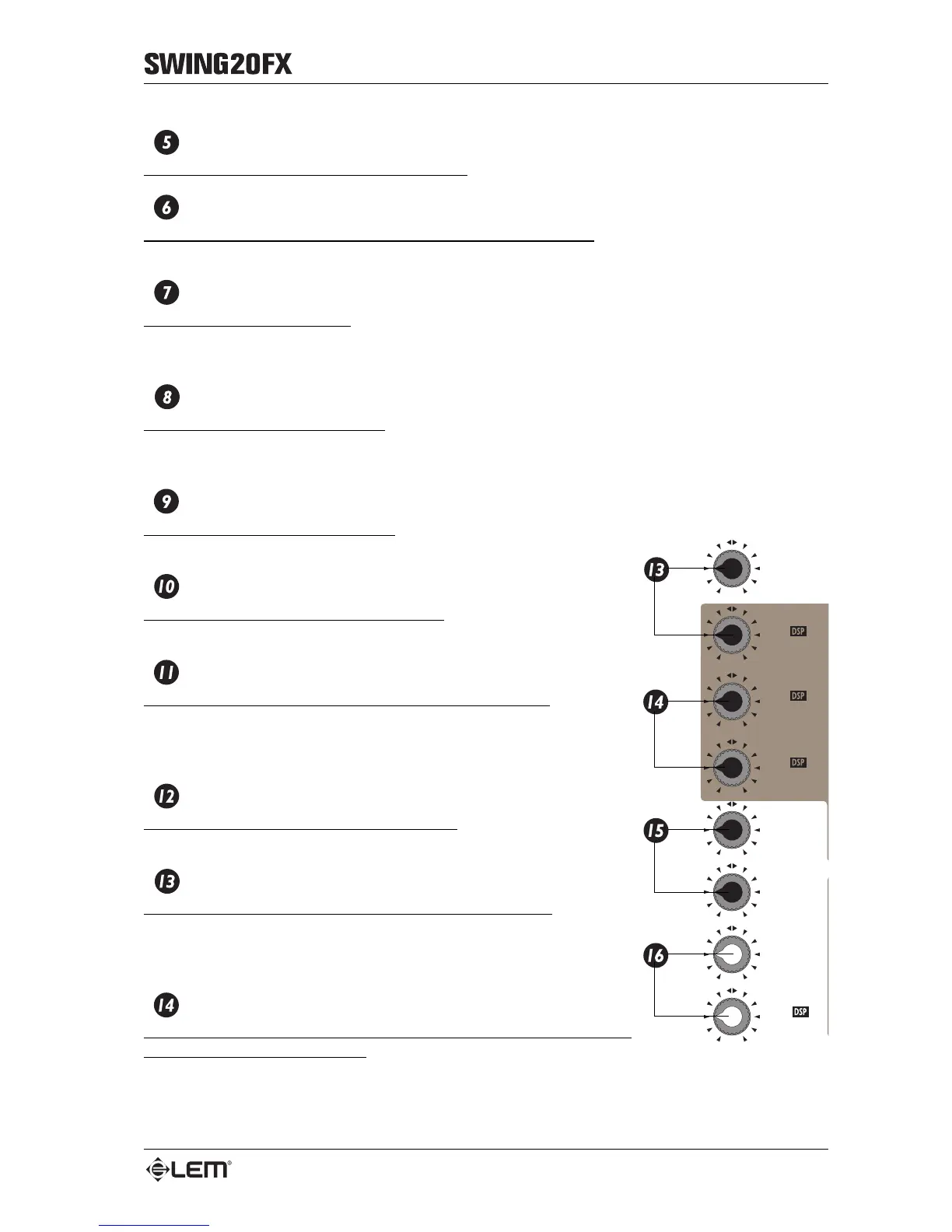

MASTER section
MONITOR 1
SEND
EFX 1
SEND
MONITOR 2
SEND
EFX 1
TO MIX
EFX 2
TO MIX
EFX 2
TO MON 2
EFX 2
SEND
EFX 2
TO MON 1
100
100
100
100
100
100
100
100
