LEMKEN 9/260 - 5 Attaching and Detaching the Implement; Attaching to the Tractor; Detaching from the Tractor

9
5 ATTACHING AND DETACHING THE IMPLEMENT
5.1 Attaching to the tractor
− Set tractor hydraulics to "Position
control".

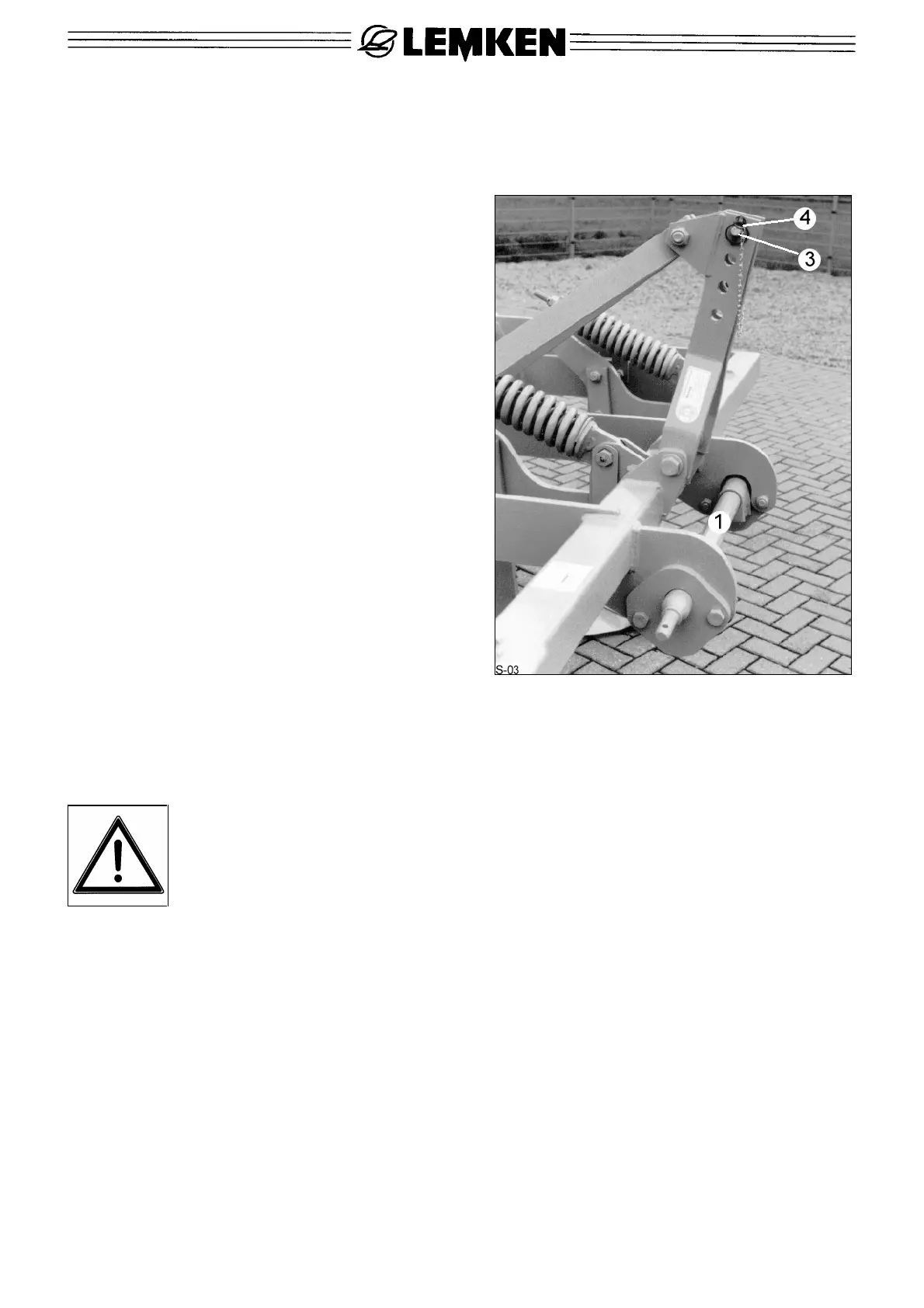

− Attach tractor lower links to the drawbar
(1) and secure.
− Fit top link so that it raises towards the
implement when in working position.
Secure top link (3) by means of spring
clip (4).
− Make electric supply connections for
lighting equipment, if public roads are
used.
5.2 Detaching from the tractor
− Park the implement always on firm and
level ground; re-attachment will then be
easier.
− Set tractor hydraulics to "Position
control".
− Lower the implement and disconnect
top link.
− Remove lower links from the drawbar (1).
− Detach electric supply-couplings if provided.
• Read and adhere to the General Safety Instructions as well as to
the Instructions ’Mounted implements’! See section 1!
