16
8 SHEARBOLTS

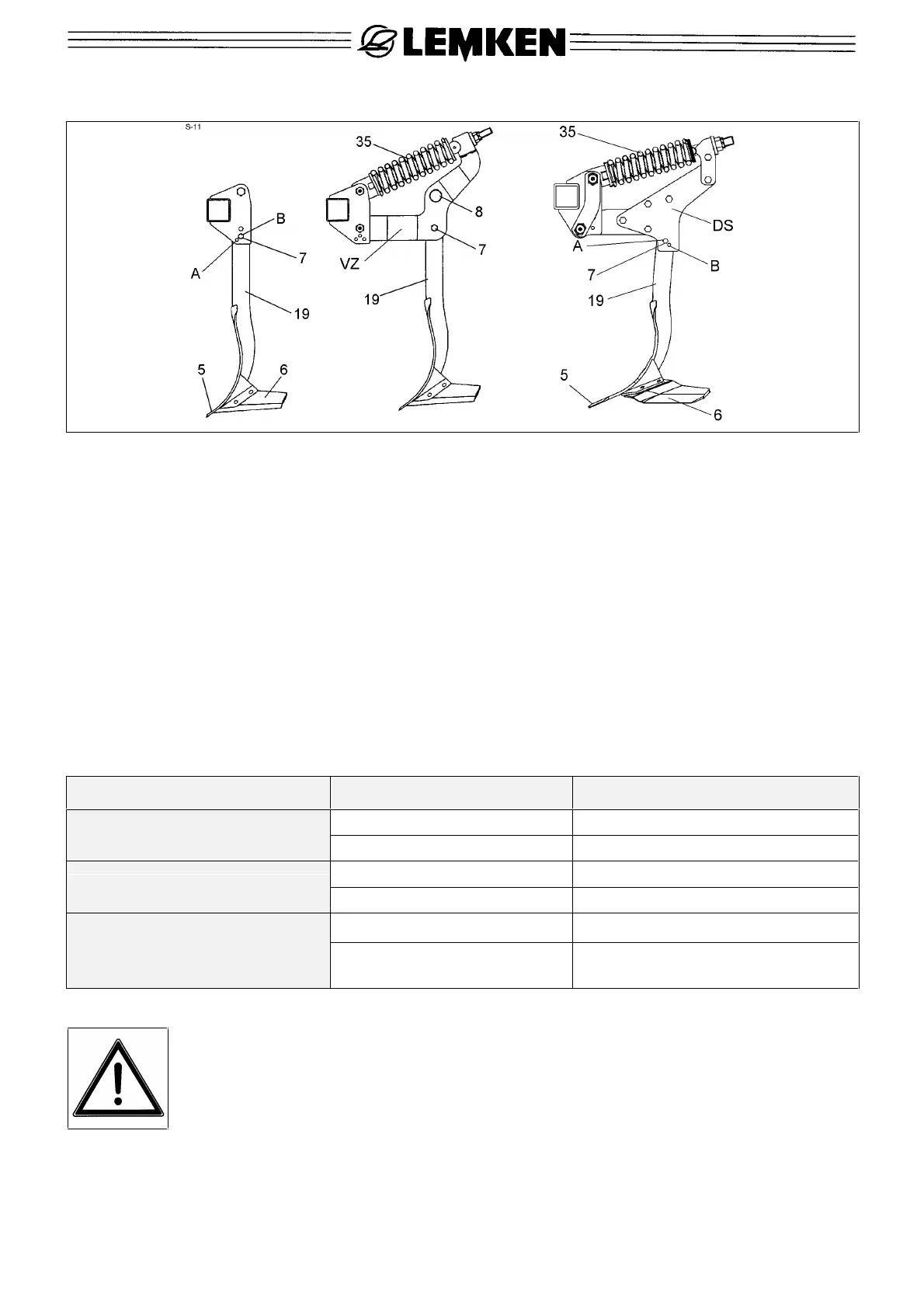

Each tine (19) and disc carrier is fitted with a shearbolt (7) which will save the
frame, tines and discs against overload.
Replace sheared bolt as follows:
a) Raise cultivator a few cm.
b) Remove all remains of the shearbolt (7).
c) Swing tine and/or disc carrier back into position.
d) Fit new shearbolt into hole concerned and tighten carefully.
Only shearbolts according to the schedule below should be used. Otherwise there
is a serious risk of damage to frame, tine or disc carrier or a premature failure
may be experienced.
Tine Disc carrier
301 7342 301 3240
TERRADISC 9
M 12x65 B=15/8.8 M 10x45 B=10/8.8
301 4600 301 3240
TERRADISC 9 Ü
M 20x70 B=28/8.8 M 10x45 B=10/8.8
301 3391 301 3240
TERRADISC 9 Ü (with
double cutting shear bolt
device)
M12x60 B=15/10.9 M 10x45 B=10/8.8
• Read and adhere to the General Safety Instructions! See section 1!
• When changing shearbolts, use suitable tools, only!
