10 OPTIONS

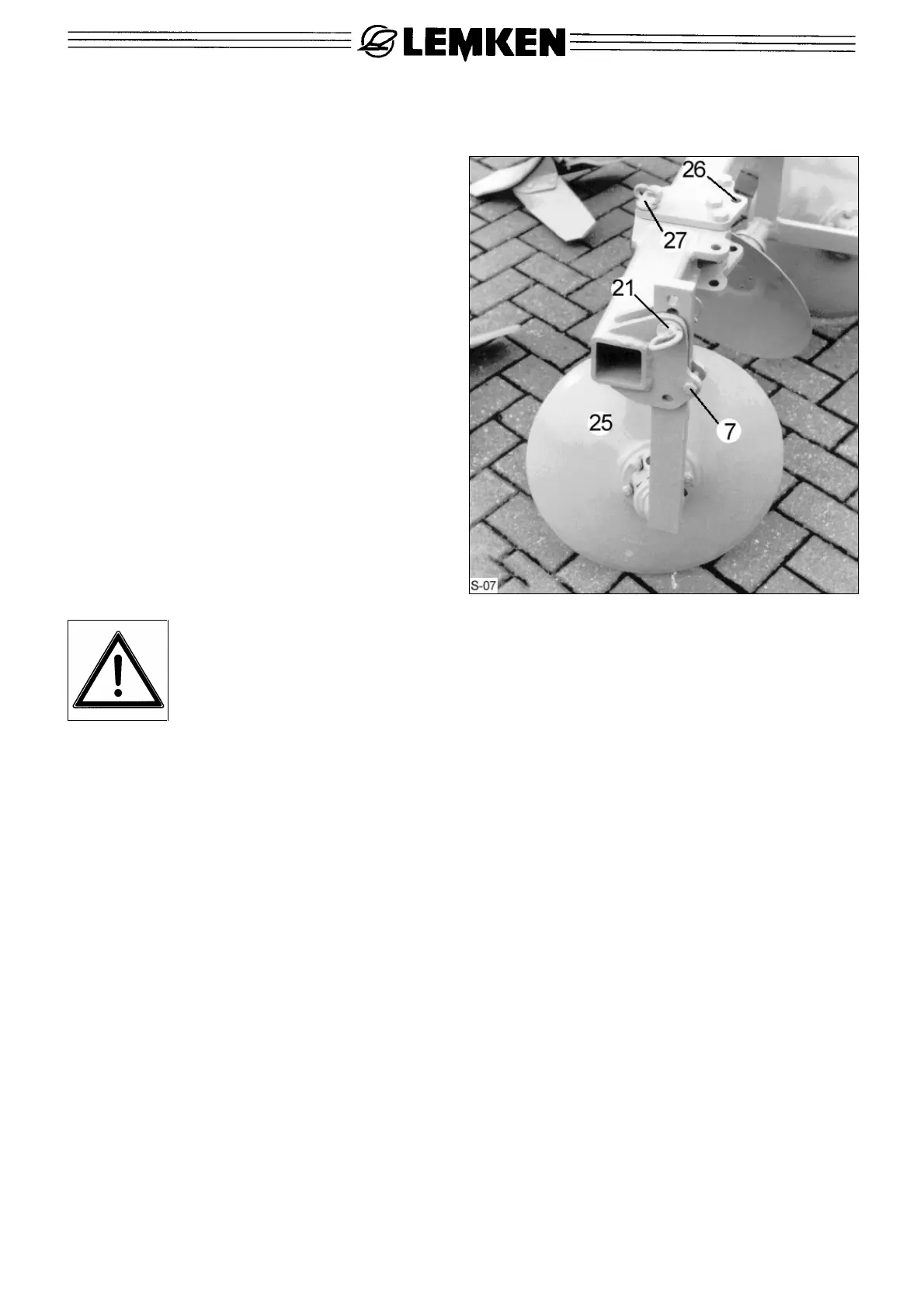

10.1 Outer discs
The outer discs (25) will be bolted to
the frame of the discs.
They should not work so deep as the
inner discs; their purpose is only to
move the soil which has been thrown
beyond the working width, into the
grooves left by the outer tines.
Working depth adjustment can be
made by means of pins (21). Secure
pin (21) after each adjustment.
For transport on public roads the
outer discs (25) must be folded
inwards.
To do so, remove pin (27), fold outer
disc (25) inwards and fit pin (27) in hole
(26) and secure.
• Read and adhere to the General Safety Instructions!
• Do not drive on public roads with outer discs being in working
position (folded out)!
