12

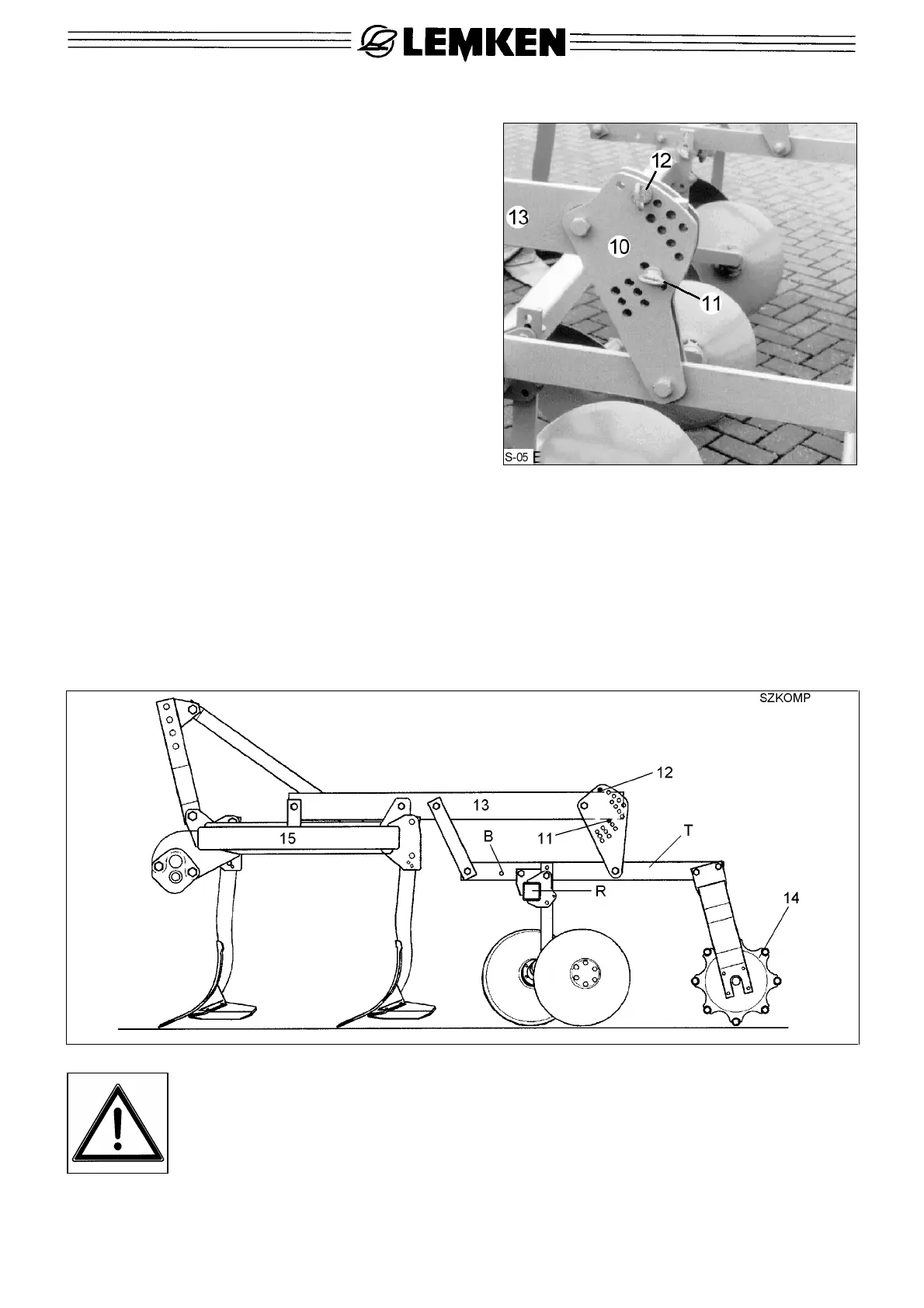

7.2 Depth adjustment of the tines
The tines (19) respectively shares (5, 6)
should be set at a working depth of 8 - 12
cm; with greater soil unevenness or deep
wheel marks a deeper cultivation depth
may be required.
Adjust working depth of the tines after
raising the implement some cm as follows:
Placing the lower pin (2) in a deeper hole
=> increased working depth.
Placing the lower pin (2) in an upper hole
=> reduced working depth.
The upper pins (12) located above the
carrier (13) are for obtaining enough
clearance between the ground and the tube-bar-roller, with the cultivator raised.
If with raised cultivator the tube-bar-roller (14) is still touching the ground or is too
close to the ground, then with fully lowered cultivator the pins (12) must be placed
in a lower hole above the carrier (13).
The length of the top link should be adjusted so that the frame (15) is nearly
parallel to the ground. Top link fitting depends on the required re-consolidation
effect of the tube-bar-roller.
• Read and adhere to the General Safety Instructions! See section 1!
• When adjusting the working depth, raise cultivator a few cm, only!
