14ACX SERIES
CRANKCASE HEATER (HR1)
HIGH PRESSURE SWITCH
(S4) — LIQUID LINE

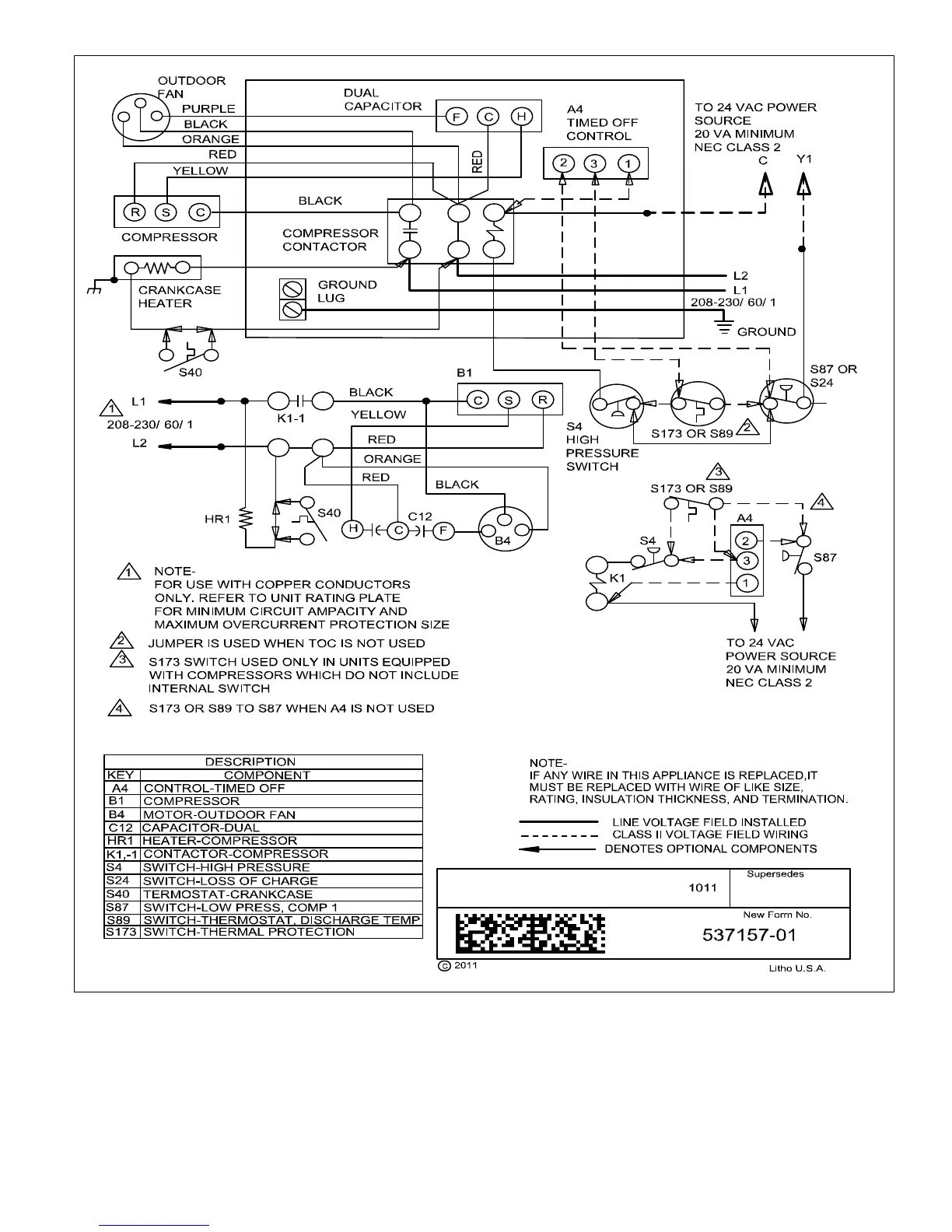

Figure 17. Typical Factory Wiring Diagram (Copeland Compressor) (14ACX-059-230-03 Only)
