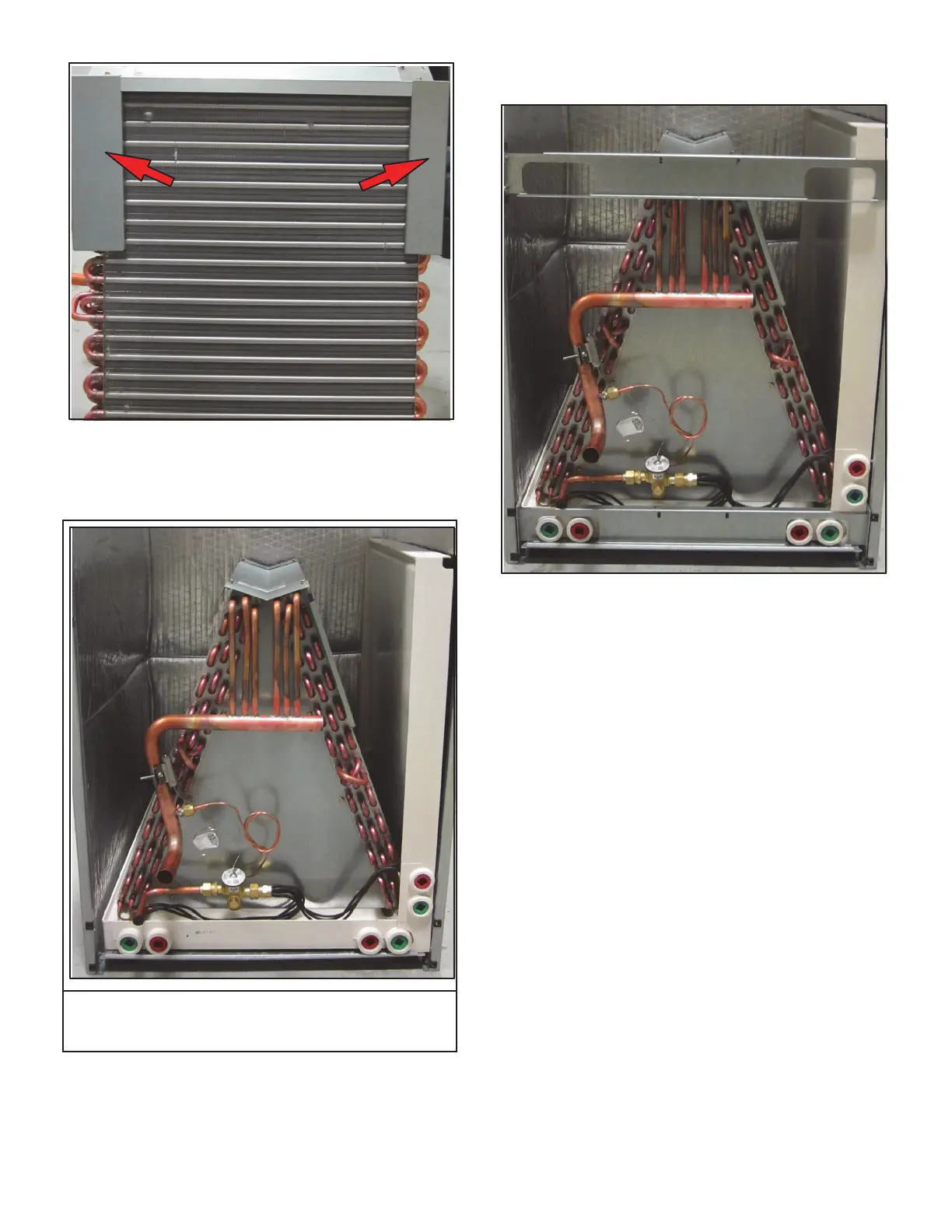

FIGURE 7. Reinstall the Top Cap. Brackets Must
Cover the Hairpins
6 - Slide coil assembly, bottom drain pan and horizontal
drain pan as one unit back into the air handler.
FIGURE 8. Slide Coil Assembly, Bottom Drain Pan
and Horizontal Drain Pan Back Into the Air Handler
as a Unit
7 - Reinstall the brackets that hold the coil and
horizontal drain pan in place. See gure 9.
FIGURE 9. Reinstall Brackets that Hold the Coil and
Horizontal Drain Pan in Place
8 - Reinstall the blower and coil access panels.
