Connexion with BM50
The address of each expansion valve driver must be set-up in order to ensure a good communication
between the Climatic 50 and the diver.

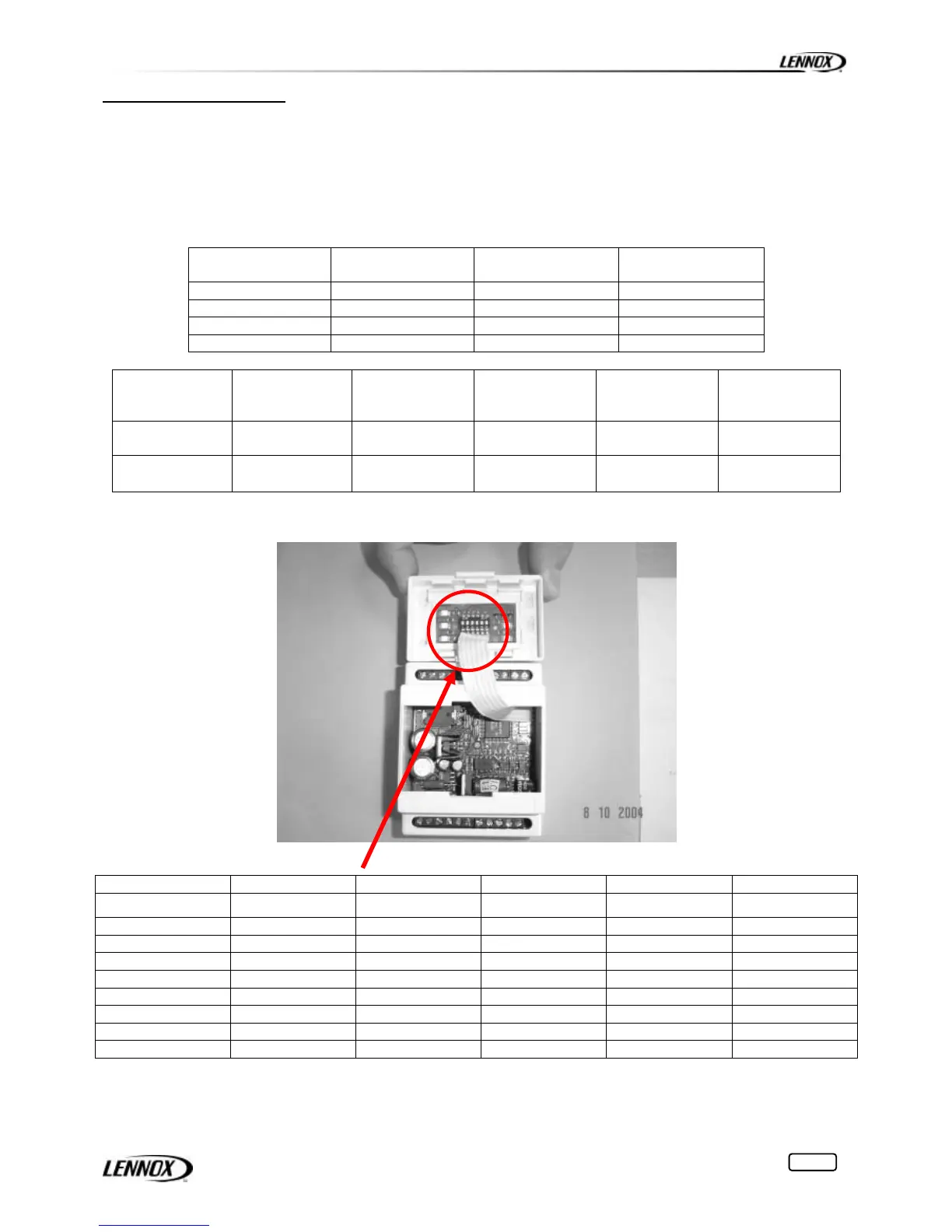

The address can be changed by using the dip switches that are under the Driver cover.
Addresses must follow the rules hereunder:
Ecologic n° BM50 address Driver circuit
n°1 address
Driver circuit
n°2 address
1 1 5 6
2 2 7 8
3 3 9 10
4 4 11 12
Ecomax
n°
BM50
address
Driver
circuit n°1
address
Driver
circuit n°2
address
Driver
circuit n°3
address
Driver
circuit n°4
address
1 1
2
5 6 7 8
2 3
4
9 10 11 12
The dip switches have to be positioned according to the following table:
SW1 SW2 SW3 SW4 SW5
Address\
Weight
1 2 4 8 16
5 ON OFF ON OFF OFF
6 OFF ON ON OFF OFF
7 ON ON ON OFF OFF
8 OFF OFF OFF ON OFF
9 ON OFF OFF ON OFF
10 OFF ON OFF ON OFF
11 ON ON OFF ON OFF
12 OFF OFF ON ON OFF
