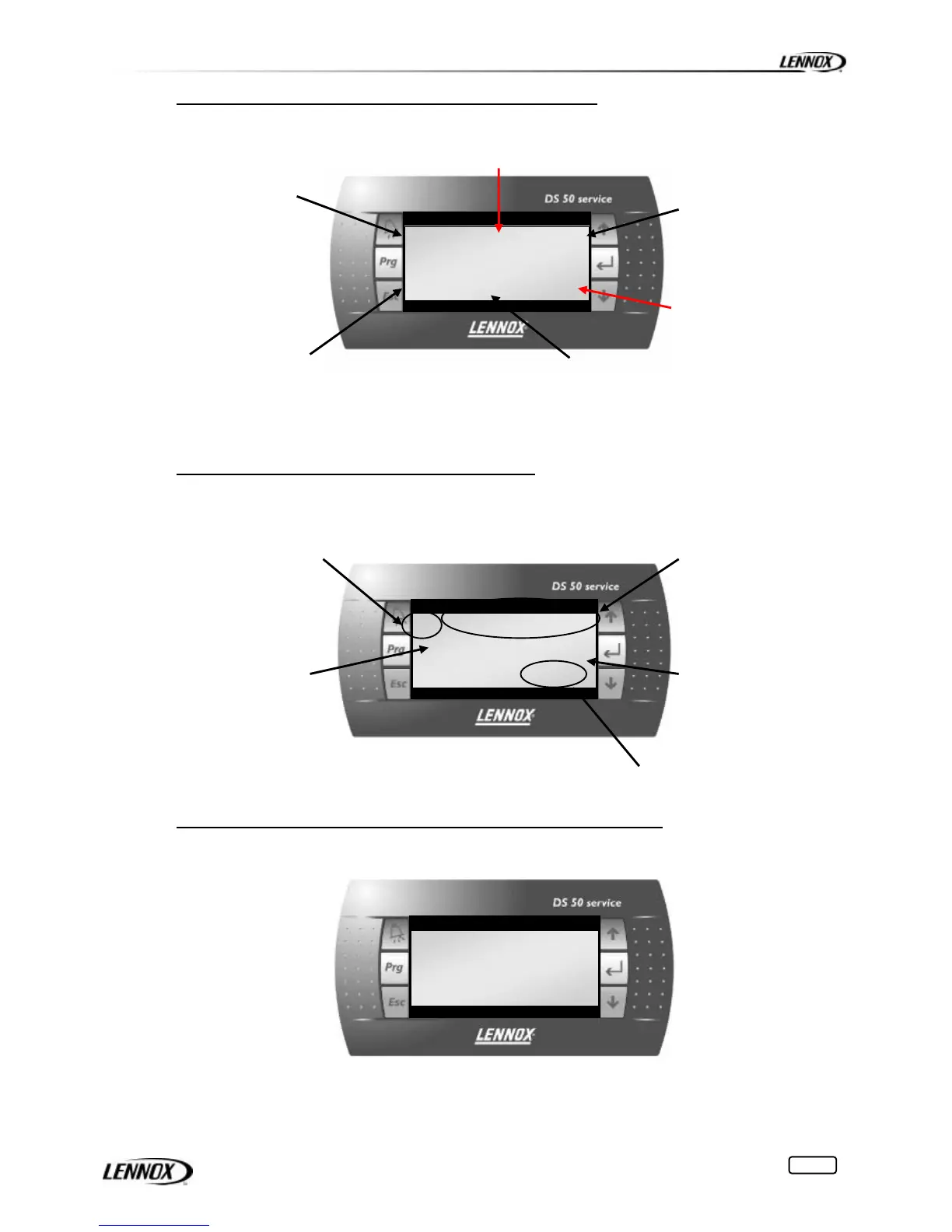

2. Fans operation (HP vs set point, fan operation, Ventilation factor)
3. Circuit 1 to 4 operation (HP, LP, superheat vs set point)
4. Circuit 1 to 4 operation: Compressor operation status (run time nb of starts)
C1 05.0 01478 06.0
H.P. 17.8b 42.8°C
L.P. 04.2b 04.0°C
Suc. 10.0°C
C1 05.0 01478 06.0
H.P. 17.8b 42.8°C
L.P. 04.2b 04.0°C
Suc. 10.0°C
Suction temperature (°C)
– unit with EEV only
Circuit Low Pressure
bars and Dew point
Circuit High Pressure
bars and Bubble point
Circuit number
Superheat set point (°C), EEV
opening (step), superheat
(°C) – unit with EEV only
1: 16.0 100.0 18.0
2: 16.0 075.0 17.5
1:? ? 100.0
2:? ? 100.0
1: 16.0 100.0 18.0
2: 16.0 075.0 17.5
1:? ? 100.0
2:? ? 100.0
25.7
PWM factor circuit 1 and
2 (%)
Ventilation factor circuit 1
and 2 (%)
HP set point circuit
1 and 2 (bars)
HP circuit 1
and 2 (bars)
Fan status for each circuit
On █ Off [ ]
Outdoor
Temperature in °C
Cir.1 –Comp.1
00125h 08m 36s
start 0000000010
Cir.1 –Comp.1
00125h 08m 36s
start 0000000010
