Lennox ComfortSense 5500 User Manual

3
Temperature Dial Indicator
2:31 am
heat−to
cool−to
78
inside
heat/cool
away
72°
78°
0
Ⓒ
Ⓑ
Ⓐ
Ⓔ
Ⓓ
Ⓕ

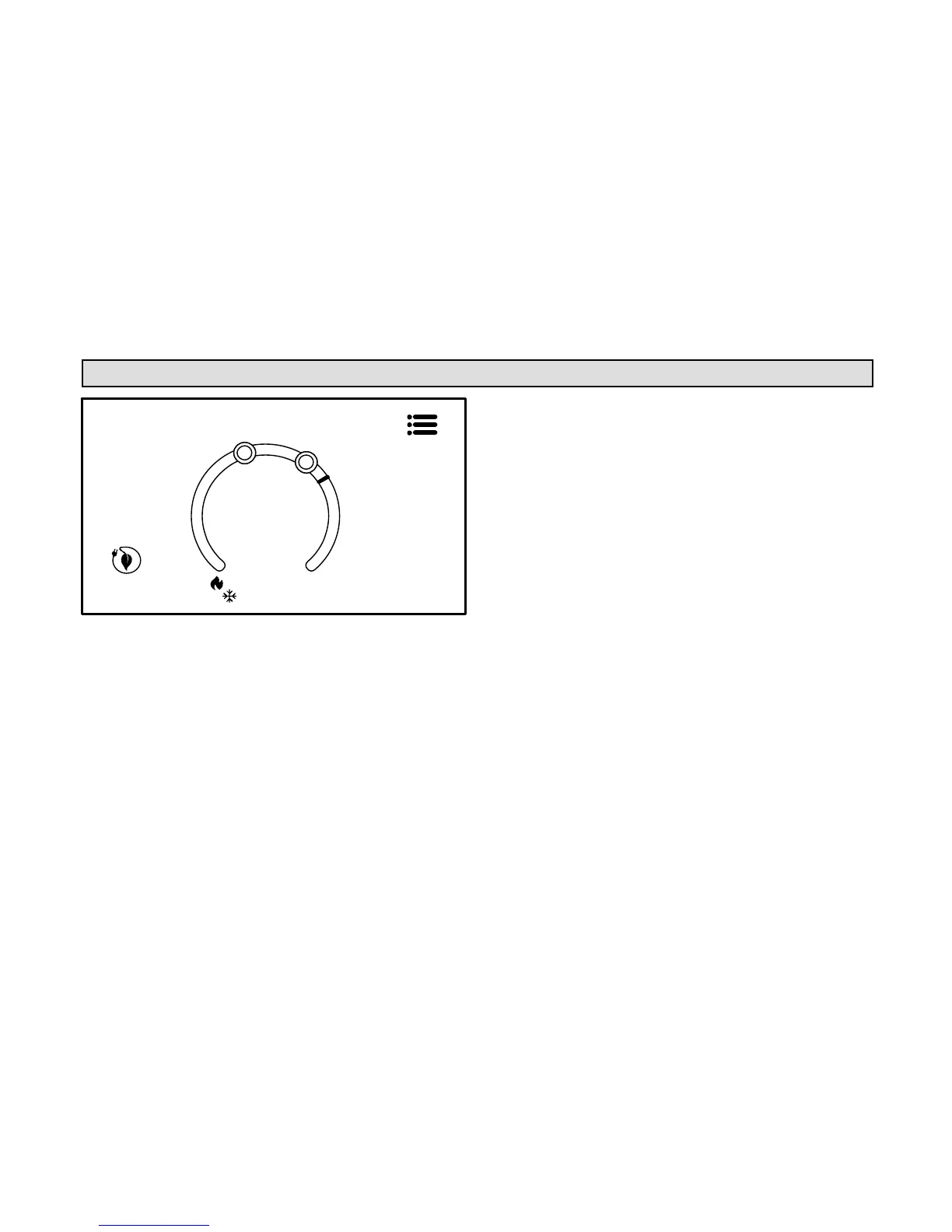

Figure 1. Temperature Dial Feature
A. This is the heat set point position indicator
on the dial. This object will be red in color.
B. This is the cool set point position indicator
on the Dial. This object will be blue in color.
C. This is the location area where no system
demand is active. In figure 1, the example
would be any temperature between 73°F and
77°F.
D. When there is an active call for heating, this
area of the dial will fade back and forth from
white to red.
E. When there is an active call for cooling, this
area of the dial will fade back and forth from
white to blue.
F. The yellow line indicates the actual room
temperature on the temperature dial indicator.

Lennox ComfortSense 5500 Specifications

General

Brand	Lennox
Model	ComfortSense 5500
Category	Thermostat
Language	English
