Lennox DAVE LENNOX SIGNATURE CBX32MV User Manual

CBX32MV / Page 20
OPTIONAL
ELECTRIC
HEAT
(Field
Installed)
AIR FLOW
LIQUID
LINE
SUCTION
LINE
SUPPLY
AIR
OPENING
Return Air
FILTER
LOW VOLTAGE
INLETS
(Top and
Right Side)
LINE VOLTAGE
INLETS
(T
op and Left Side)
Return Air

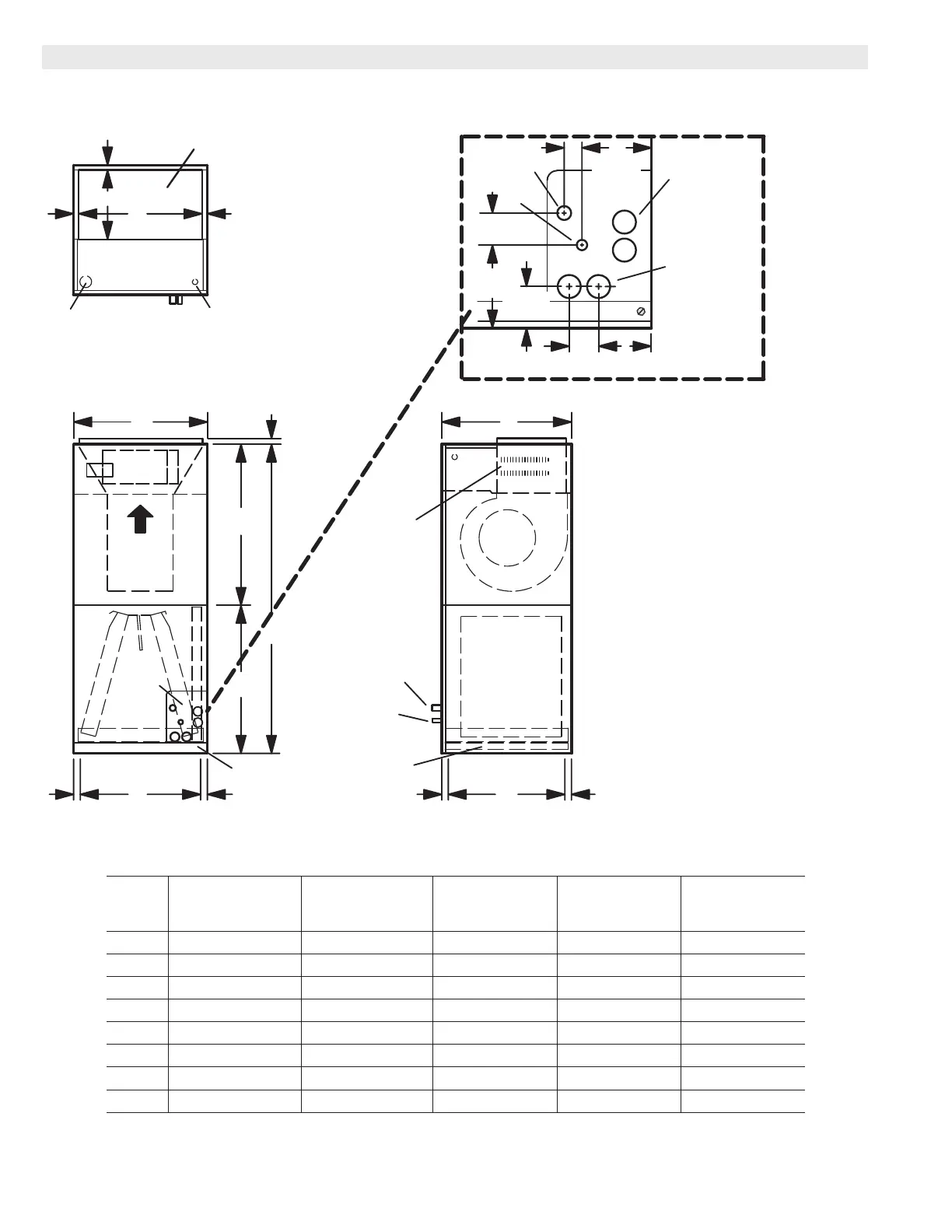

TOP VIEW
WEIV EDISWEIV TNORF
BLOWER
DETAIL OF PIPING PLATE
A
CB
11-1/16 (281)
D
F
E
LIQUID
LINE
SUCTION LINE
CONDENSATE
DRAINS (2)
(Horizontal)
COIL
PIPING
PLATE
3/4
(19)
3/4
(19)
3/4
(19)
5/8
(16)
5/8
(16)
1
(25)
5/8
(16)
5/8
(16)
1-3/4
(44)
2
(51)
1-1/8 (29)
4-3/8
(111)
2-3/4
(70)
5-3/8
(137)
3-1/2 (89)
CONDENSATE
DRAINS (2)
(Upflow and
Downflow)
FILTER
ACCESS
H
G
Note − Units are shipped in one piece but
may be disassembled into two separate
sections for ease of installation.
DIMENSIONS - INCHES (MM) UPFLOW
Model
No.
CBX32MV-018/024 CBX32MV-024/030 CX32MV-036
CBX32MV-048
CBX32MV-060
CBX32MV-068
inch mm inch mm inch mm inch mm inch mm
A 45-1/4 1149 49-1/4 1251 51 1295 58-1/2 1486 65 1651
B 16-1/4 413 21-1/4 540 21-1/4 540 21-1/4 540 21-1/4 540
C 20-5/8 524 20-5/8 524 22-5/8 878 24-7/8 625 26-5/8 675
D 14-3/4 375 19-3/4 502 19-3/4 502 19-3/4 502 19-3/4 502
E 19 483 19 483 21 533 23 584 25 635
F 15 381 20 508 20 508 20 508 20 508
G 24-5/8 625 24-5/8 625 26-3/4 640 27-7/8 708 32-3/8 822
H 20-5/8 524 24-5/8 625 24-5/8 625 30-5/8 778 32-5/8 829
20 of 44 B17-0056
01/19/2017

Lennox DAVE LENNOX SIGNATURE CBX32MV Specifications

General

Type	Variable Speed Air Handler
Refrigerant	R-410A
Airflow	Up to 2000 CFM
Warranty	10-Year Limited Warranty
Nominal Cooling Capacity	1.5 - 5 Ton
Nominal Heating Capacity	Match with heat pump or furnace
Blower Motor	Variable Speed ECM
Filter	MERV 16
