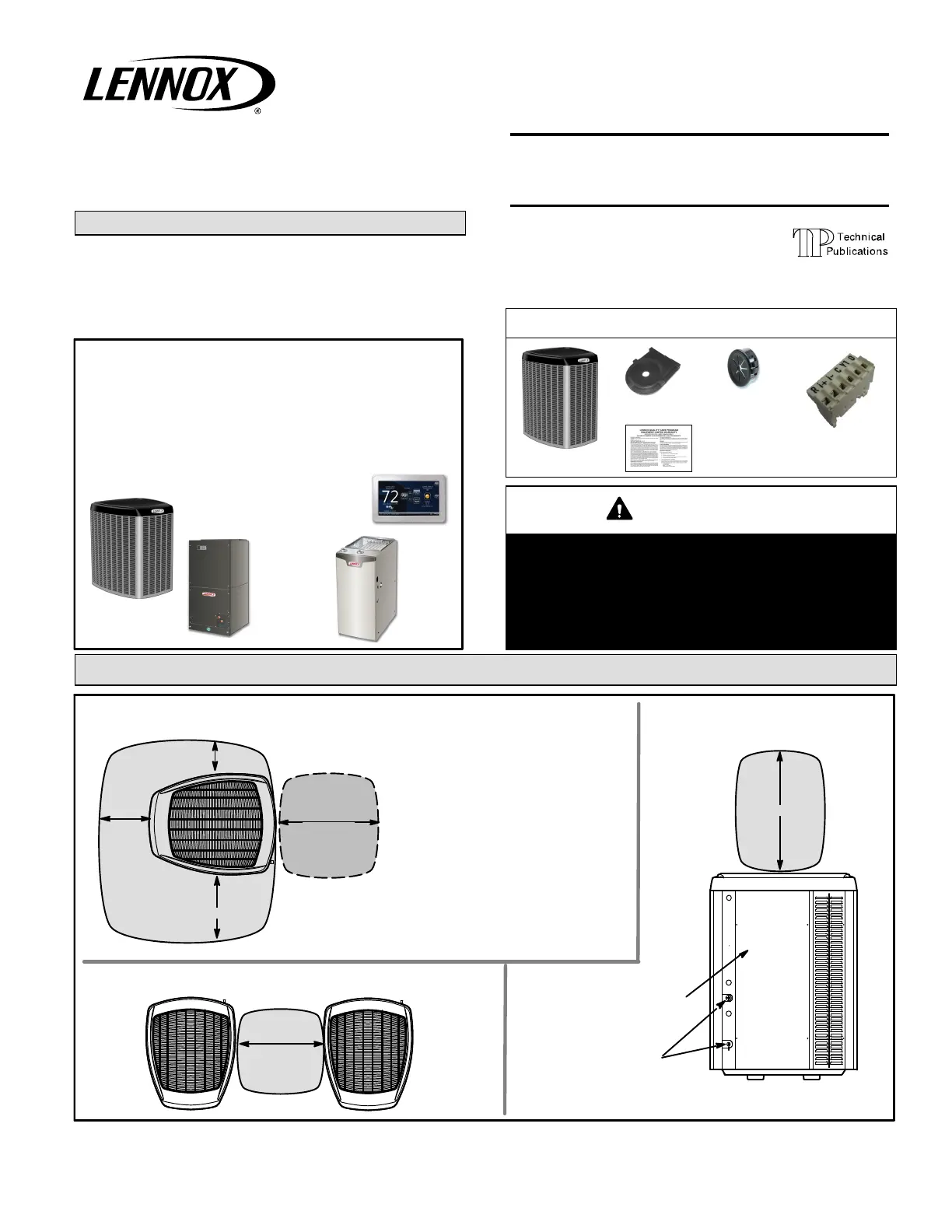

Page 1
7/2013 507005-01
*2P72013* *P507005-01*
E2013 Lennox Industries Inc.
Dallas, Texas, USA
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
General
This XP25 outdoor heat pump is designed for use with
HFC-410A refrigerant only.
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
THIS UNIT IS A INTEGRAL COMPONENT OF A SYSTEM THAT
WILL REQUIRE AN ICOMFORT WI-FI
®
THERMOSTAT AND
ICOMFORT™-ENABLED AIR HANDLER OR FURNACE.
XP25
iComfort WI-FI
®
IMPORTANT: BEFORE APPLYING ANY POWER (MAIN, SOLAR
OR LOW VOLTAGE) TO THE OUTDOOR UNIT, THE FIELD MUST
CONFIRM ICOMFORT Wi-Fi
®
THERMOSTAT HAS VERSION 2.1
OR HIGHER SOFTWARE. (REFERENCE ICOMFORT WI-FI
®
THERMOSTAT MANUAL)
iComfort™-enabled
air handler or
furnace
INSTALLATION
INSTRUCTIONS
Dave Lennox Signature
®
Collection XP25 System
HEAT PUMPS
507005-01
7/1/2013
Supersedes 6/14/2013
PACKING LIST
OUTDOOR UNIT
WARRANTY
CARD
GROMMETS (2)
BUSHING (1)
RAST 6-PIN
CONNECTOR (1)
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal inju
ry or loss of life.
Installation and service must be performed by a licensed
HVAC professional installer (or equivalent) or service
agency.
STEP 1 -- SETTING THE UNIT -- Clearances
CONTROL
PANEL ACCESS
LOCATION
6 (152)
36 (914)
12 (305)
30 (762)
24
(610)
LINE SET
CONNECTIONS
ACCESS PANEL
REAR VIEW OF UNIT
48 (1219)
MINIMUM CLEARANCE BETWEEN TWO UNITS
CLEARANCE ON ALL SIDES — INCHES (MILLIMETERS)
MINIMUM CLEARANCE
ABOVE UNIT
NOTES:
S Clearance to access panel must be 30
inches (762mm).
S Clearance to one of the other three
sides must be 36 inches (914mm).
S Clearance to one of the remaining two
sides may be 12 inches (305mm) and
the final side may be 6 inches
(152mm).
Note: Dimensions are not to scale.
FIGURE 1
Litho U.S.A.
29 of 44 B17-0056
01/19/2017
