XP25 SERIES

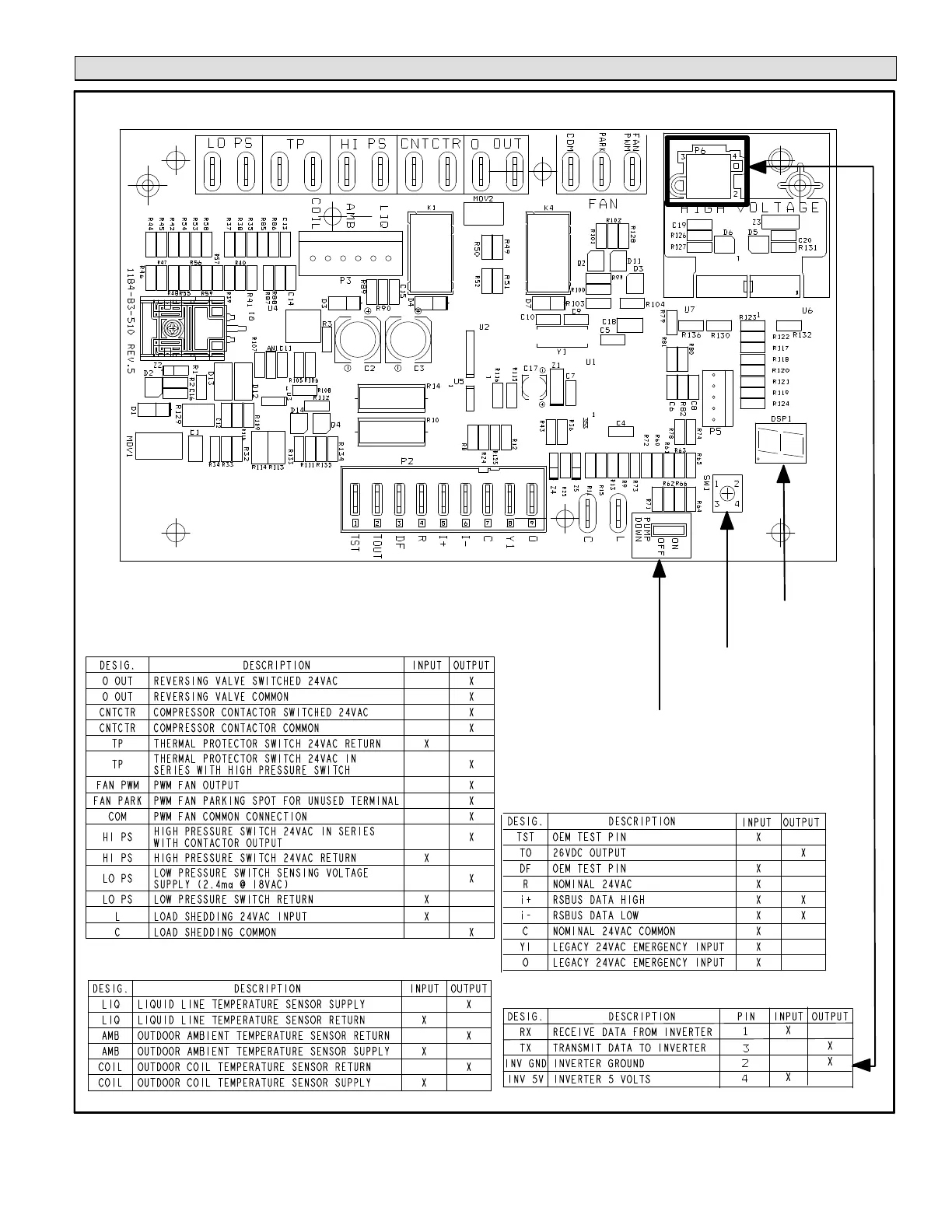

STEP 3 -- ELECTRICAL (Continued) -- Outdoor Control Jumper and Terminals
PUSH
BUTTON
7-SEGMENT
DISPLAY
PUMP DOWN - WHEN UNIT IS IN PUMP DOWN MODE, Pd WILL BE
DISPLAYED ON 7-SEGMENT.
TO ACTIVATE PUMP DOWN MODE, THE CONTROL MUST BE IN
THE IDLE STATE, AND THE PUMP DOWN JUMPER PLACED
ACROSS THE TWO PUMP DOWN PINS. TO DEACTIVATE,
REMOVE JUMPER.
FIGURE 10
41 of 44 B17-0056
01/19/2017
